Eagle TT-4 - Page 18

18
REV30 8.4.15 TT4-8 4TNV98
POWER TRAIN

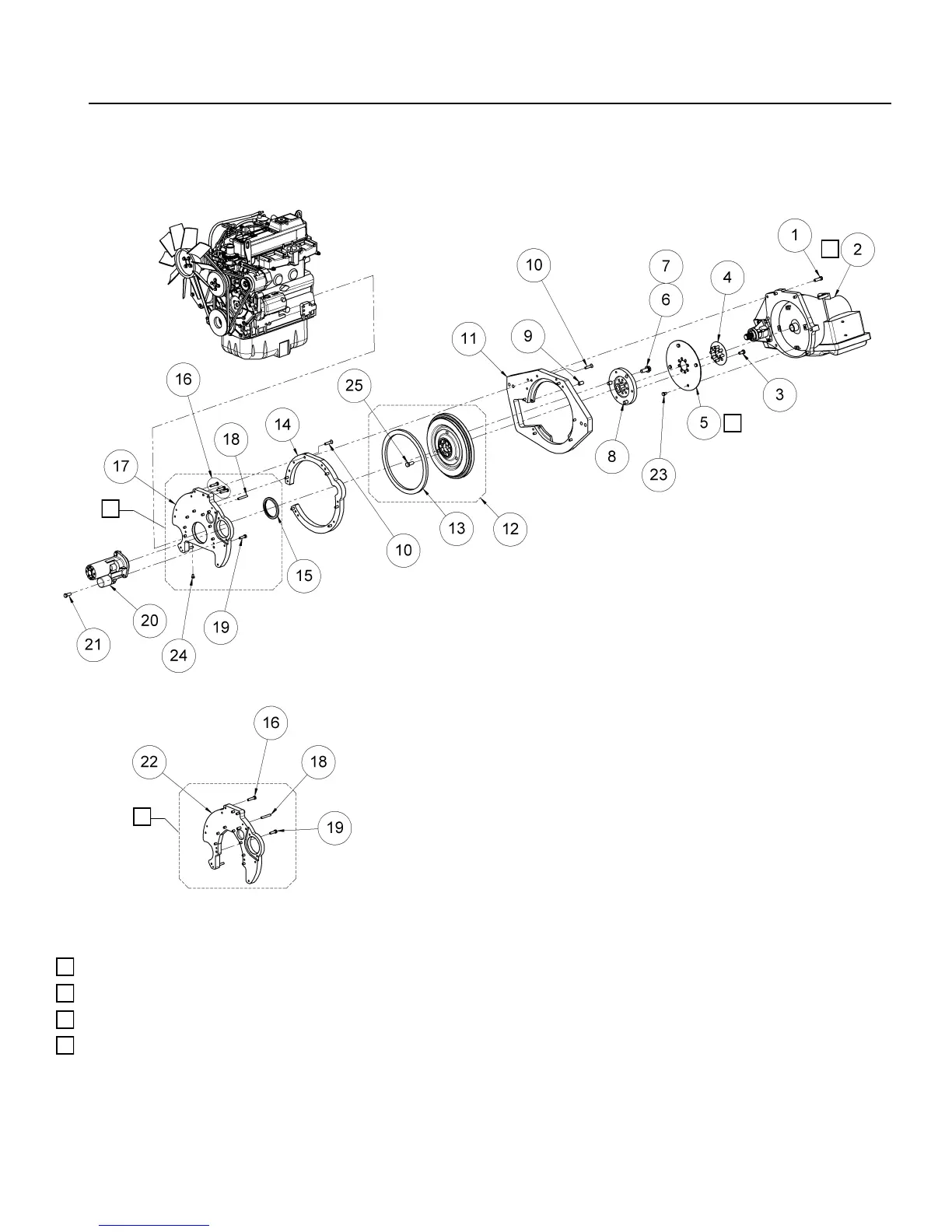

ENGINE DRESS - TRANSMISSION
A
B
C
TORQUE
TO 45 ft-lb
Used on engines not equipped with integrated rear crank seal.
Used on engines with integrated rear crank seal.
See ESB-01-15 Service Bulletin for proper transmission identification. Assembly as shown is current production.
Install with stamped “D” facing toward transmission.
A
B
C
TORQUE
TO 45 ft-lb
TORQUE
TO 45 ft-lb
TORQUE
TO 50 ft-lb
TORQUE
TO 70 ft-lb
TORQUE
TO 50 ft-lb
TORQUE
TO 55 ft-lb
D
TORQUE
TO 70 ft-lb
TORQUE
TO 45 ft-lb
D
TORQUE
TO 70 ft-lb
