MAINTENANCE, SERVICE AND FAULT FINDING
4-16 25364 Issue 8 March 2018
(3) Disconnect the print head heater.

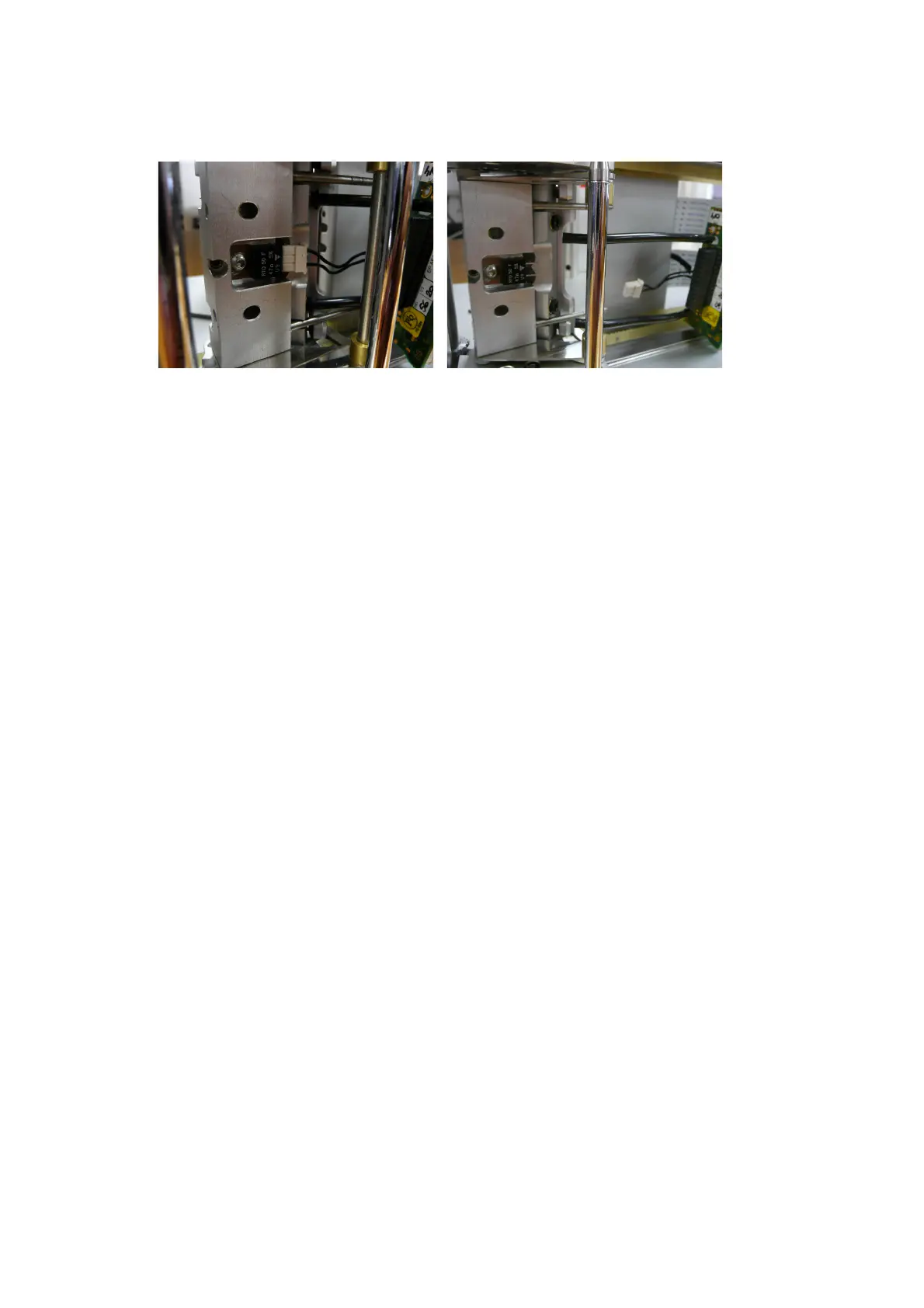

Print Head Heater and Pipes
(Shown Connected to Printer)
Print Head Heater and Pipes
(Shown Disconnected from
Printer)
(4) Remove the air pipes to the print head and move the print head
connector board so that it is out of the way.
(5) Remove the two air tubes by selecting the tube locking rings.
CAUTION: Do not use a screwdriver to remove the tube locking
rings, as damage
to the rings may occur.
To Next Page
