Chapter 8—C445UM Monitoring User Interface
Power Xpert C445 Global Motor Management Relay MN042003EN—January 2019 www.eaton.com 153
The active inhibit can also always be viewed via PRG R Faults and Events R Active Inhibit

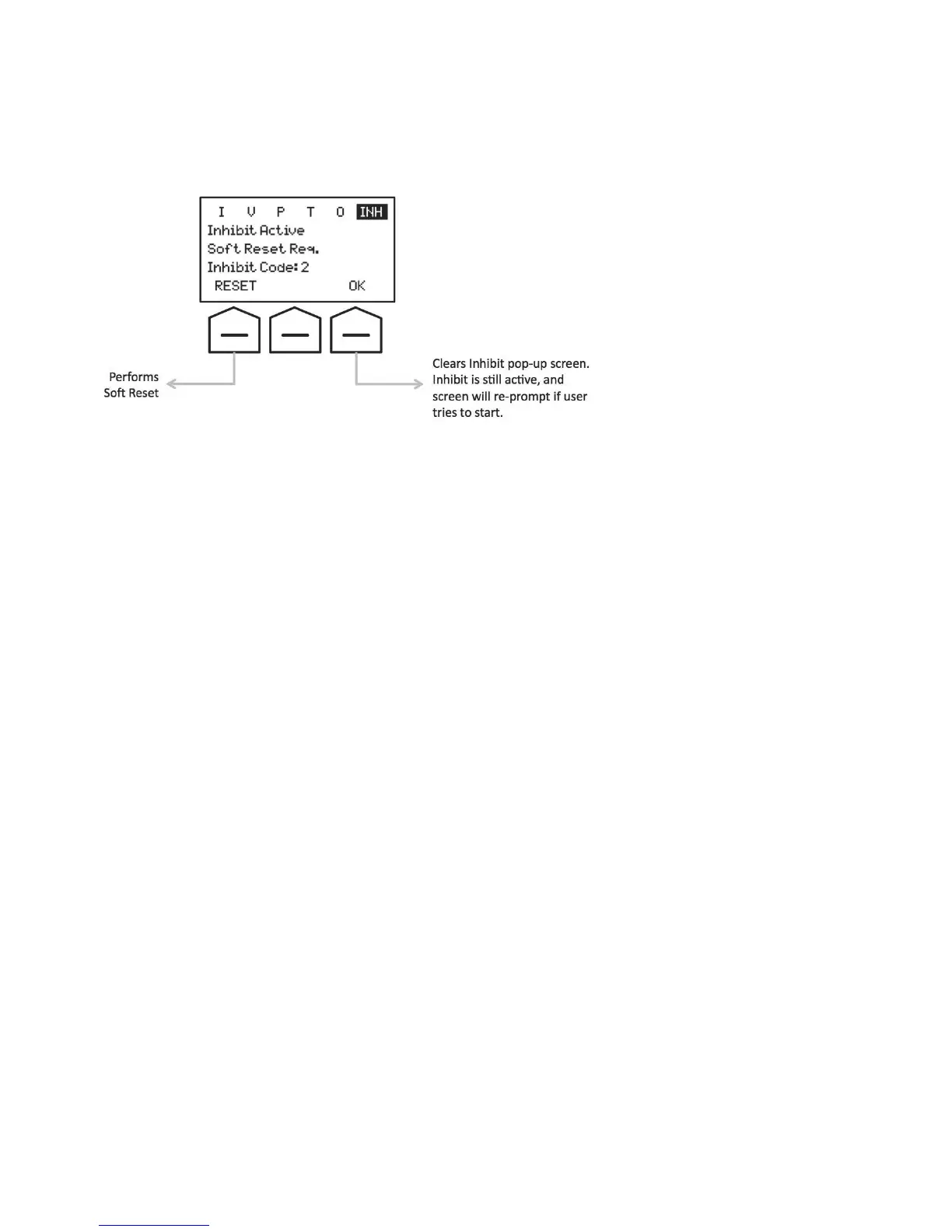

Figure 126. C445UM Inhibits
Warnings – If an alarm condition is present, the WARN LED will light.
There is no pop-up screen for a warning. To view the active warning,
go to PRG R Faults and Events R Active Warning
