P.26
PM10U
EBARA
CORPORATION
The pump must be connected a suitable earth point.
A : For model EV-A10-2* (1Phase 200V)
Use the power cable with ground. Insert the power cable in the gounding power outlet.

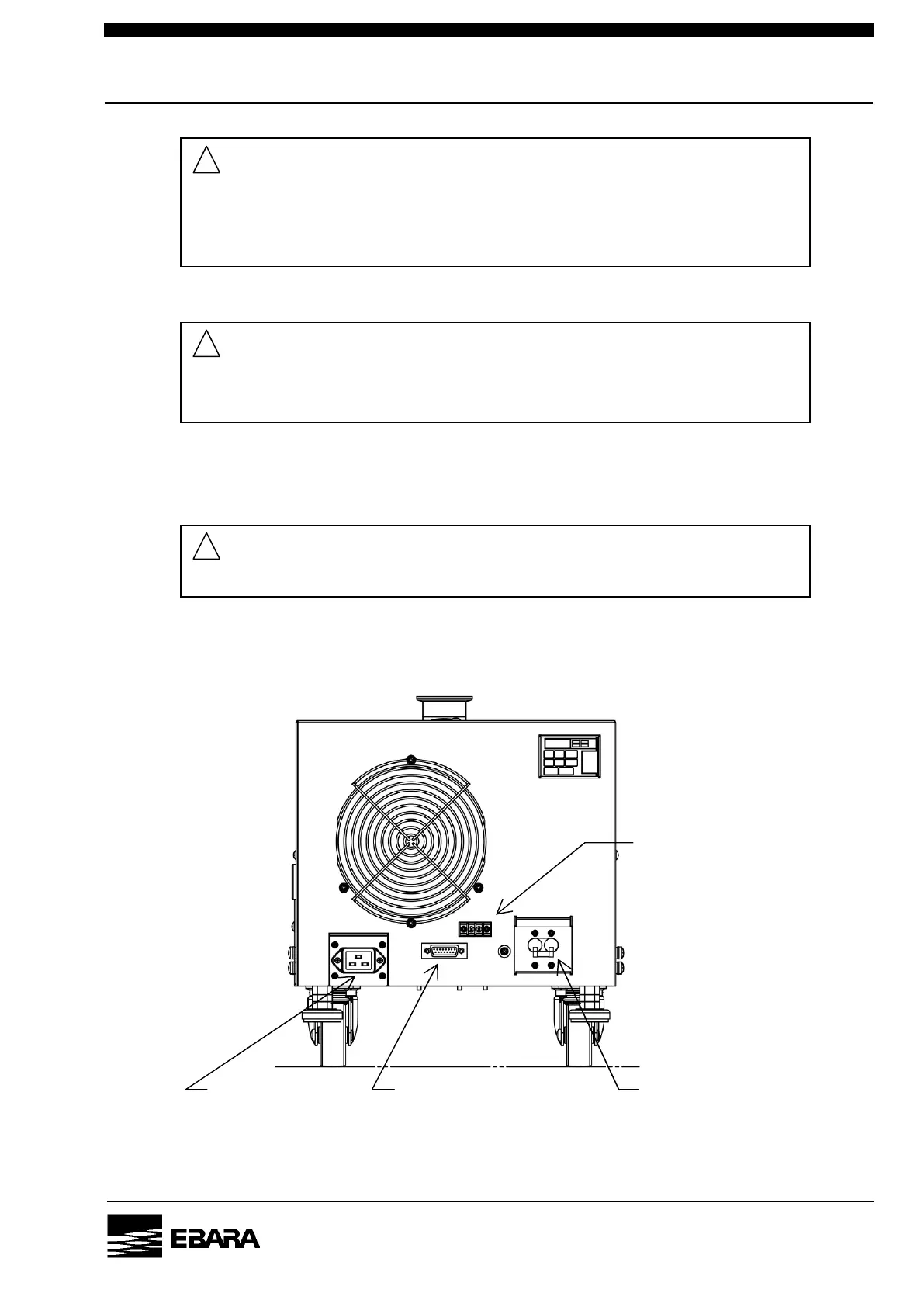

Fig. 3.1 shows details of the front panel of model EV-A10-2*.
CAUTION
Use the correct wiring materials and size to match the operating conditions in
accordance with the power consumption rating and ambient air temperature of the
pump.
！
！！
！
WARNING
The earthing of the pump is realized by connecting the cable with qualified electricians.
The qualified electricians should have themselves a connection in the ground.
！
！！
！
WARNING
Do not use the power cable adapter.
！
！！
！
Power connector
:
IEC 60320
-
C20
Control connector
:
D
-
sub 15Pin (Female)
Circuit protector
Terminal block
: for thermal protector
Fig. 3.1 Details of the front panel of model “EV-A10-2*”
