Echo CS-2511WES Service Manual

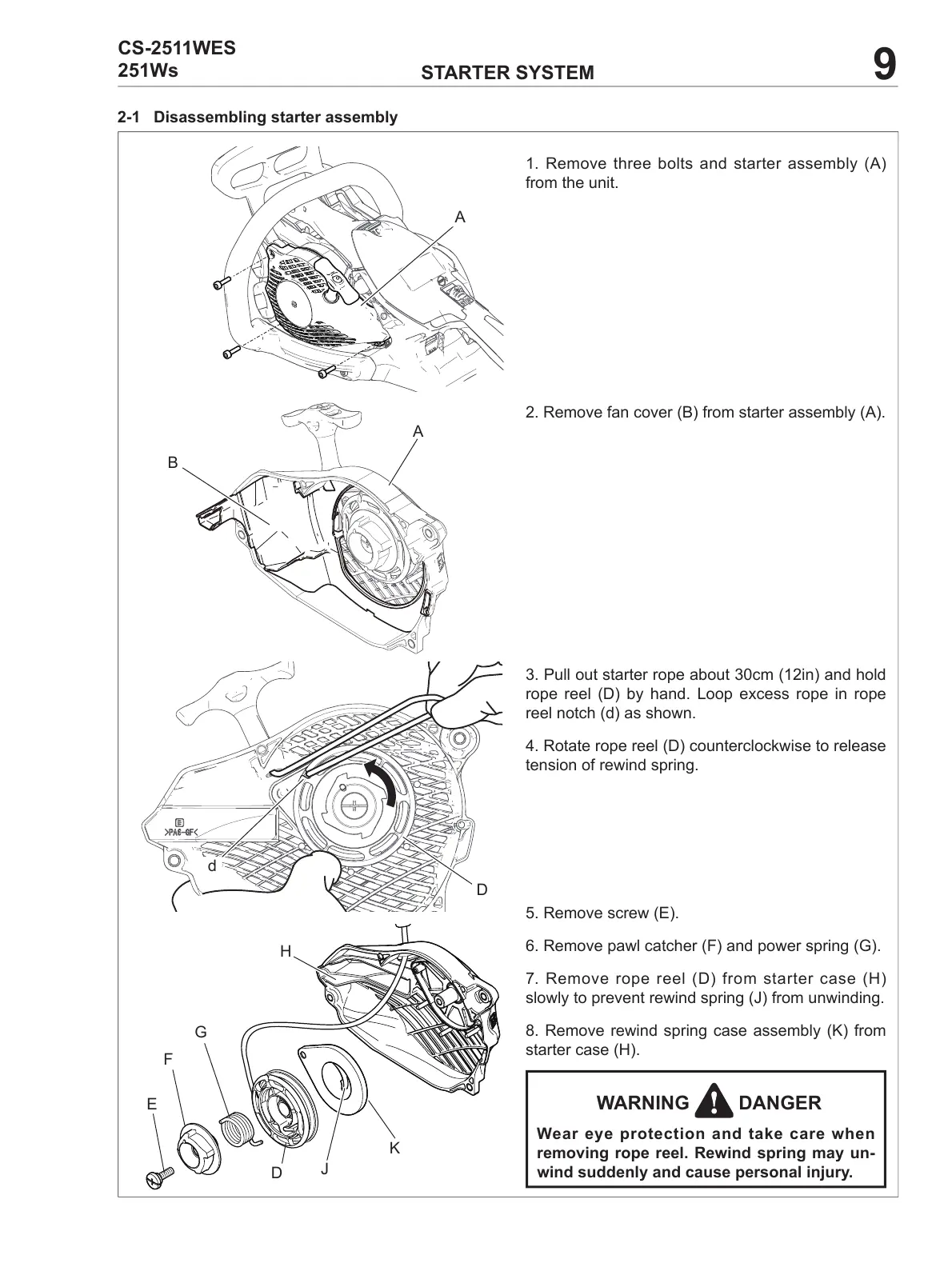

STARTER SYSTEM
9
CS-2511WES
251Ws
2-1 Disassemblingstarterassembly
1. Remove three bolts and starter assembly (A)
from the unit.
2. Remove fan cover (B) from starter assembly (A).
3. Pull out starter rope about 30cm (12in) and hold
rope reel (D) by hand. Loop excess rope in rope
reel notch (d) as shown.
4. Rotate rope reel (D) counterclockwise to release
tension of rewind spring.
5. Remove screw (E).
6. Remove pawl catcher (F) and power spring (G).
7. Remove rope reel (D) from starter case (H)
slowly to prevent rewind spring (J) from unwinding.
8. Remove rewind spring case assembly (K) from
starter case (H).
WARNING DANGER
Wear eye protection and take care when
removingropereel.Rewindspringmayun-
windsuddenlyandcausepersonalinjury.
E
F
J
K
H
G
D
B
A
A
d
D
