Echo CS-2511WES Service Manual

FUEL SYSTEM
32
CS-2511WES
251Ws

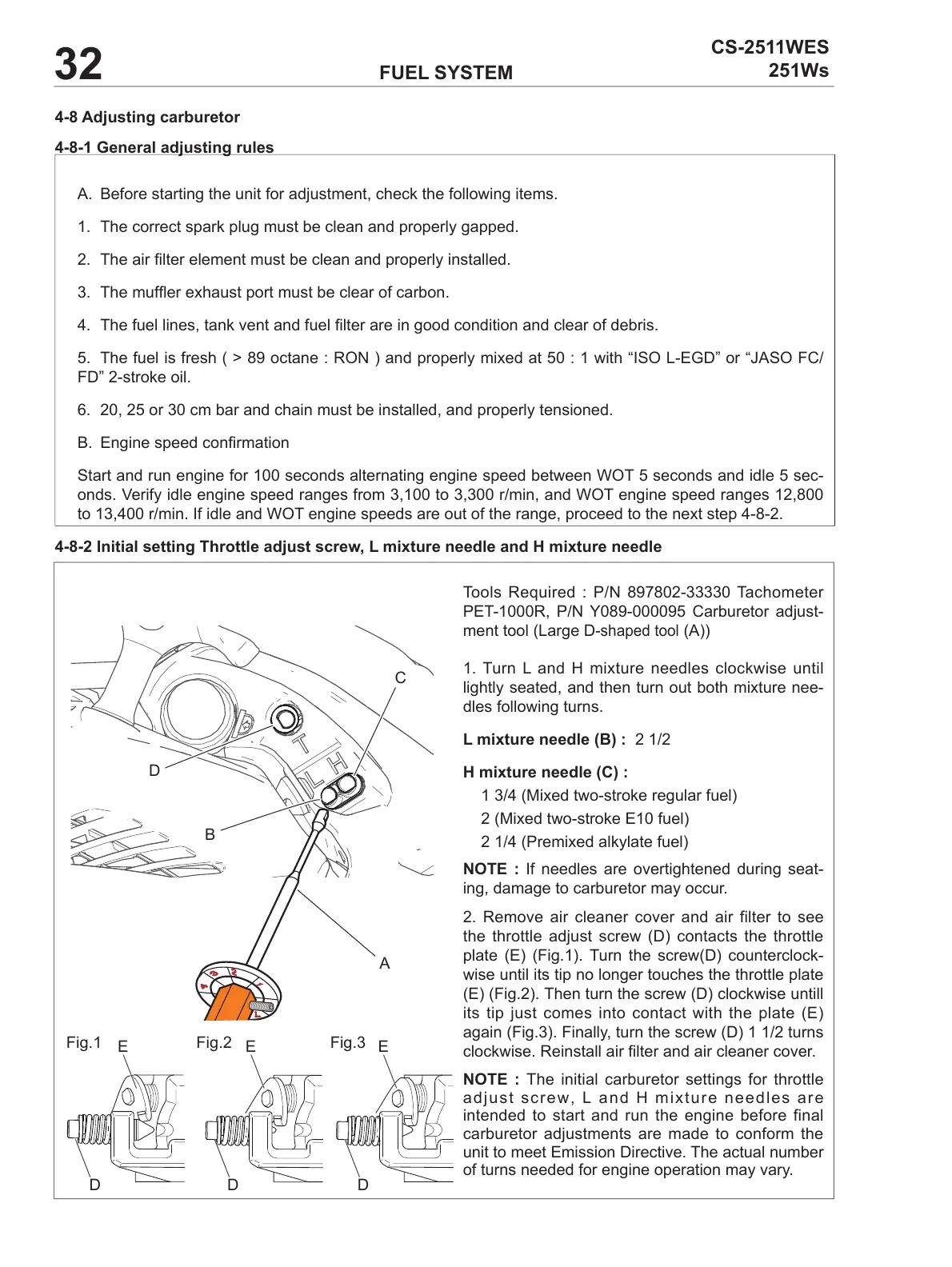

4-8Adjustingcarburetor
4-8-1Generaladjustingrules
A. Before starting the unit for adjustment, check the following items.
1. The correct spark plug must be clean and properly gapped.
2. The air lter element must be clean and properly installed.
3. The mufer exhaust port must be clear of carbon.
4. The fuel lines, tank vent and fuel lter are in good condition and clear of debris.
5. The fuel is fresh ( > 89 octane : RON ) and properly mixed at 50 : 1 with “ISO L-EGD” or “JASO FC/
FD” 2-stroke oil.
6. 20, 25 or 30 cm bar and chain must be installed, and properly tensioned.
B. Engine speed conrmation
Start and run engine for 100 seconds alternating engine speed between WOT 5 seconds and idle 5 sec-
onds. Verify idle engine speed ranges from 3,100 to 3,300 r/min, and WOT engine speed ranges 12,800
to 13,400 r/min. If idle and WOT engine speeds are out of the range, proceed to the next step 4-8-2.
4-8-2InitialsettingThrottleadjustscrew,LmixtureneedleandHmixtureneedle
Tools Required : P/N 897802-33330 Tachometer
PET-1000R, P/N Y089-000095 Carburetor adjust-
ment tool (Large D -shaped tool (A))
1. Turn L and H mixture needles clockwise until
lightly seated, and then turn out both mixture nee-
dles following turns.
Lmixtureneedle(B): 2 1/2
Hmixtureneedle(C):
1 3/4 (Mixed two-stroke regular fuel)
2 (Mixed two-stroke E10 fuel)
2 1/4 (Premixed alkylate fuel)
NOTE : If needles are overtightened during seat-
ing, damage to carburetor may occur.
2. Remove air cleaner cover and air filter to see
the throttle adjust screw (D) contacts the throttle
plate (E) (Fig.1). Turn the screw(D) counterclock-
wise until its tip no longer touches the throttle plate
(E) (Fig.2). Then turn the screw (D) clockwise untill
its tip just comes into contact with the plate (E)
again (Fig.3). Finally, turn the screw (D) 1 1/2 turns
clockwise. Reinstall air lter and air cleaner cover.
NOTE : The initial carburetor settings for throttle
adjust screw, L and H mixture needles are
intended to start and run the engine before final
carburetor adjustments are made to conform the
unit to meet Emission Directive. The actual number
of turns needed for engine operation may vary.
1
7
4
3
2
Fig.1 Fig.2 Fig.3
D
E
D
E
D
E
A
B
C
D
