Echo CS-2511WES Service Manual

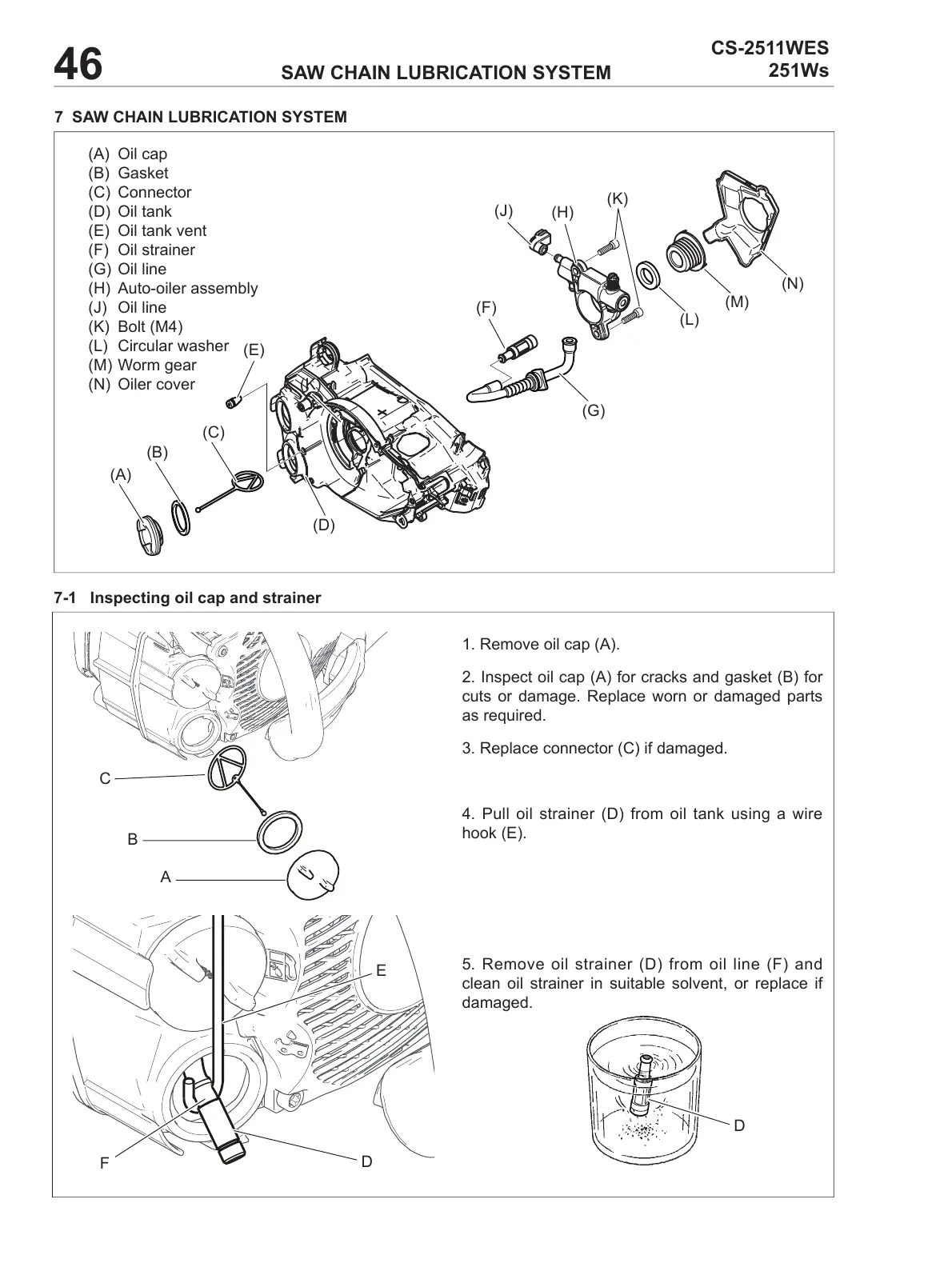

SAW CHAIN LUBRICATION SYSTEM
46
CS-2511WES
251Ws
7 SAW CHAIN LUBRICATION SYSTEM
(A) Oil cap
(B) Gasket
(C) Connector
(D) Oil tank
(E) Oil tank vent
(F) Oil strainer
(G) Oil line
(H) Auto-oiler assembly
(J) Oil line
(K) Bolt (M4)
(L) Circular washer
(M) Worm gear
(N) Oiler cover
(F)
(G)
(H)
(A)
(K)
(L)
(K)
(B)
(C)
(E)
(M)
(N)
(D)
7-1 Inspectingoilcapandstrainer
1. Remove oil cap (A).
2. Inspect oil cap (A) for cracks and gasket (B) for
cuts or damage. Replace worn or damaged parts
as required.
3. Replace connector (C) if damaged.
4. Pull oil strainer (D) from oil tank using a wire
hook (E).
5. Remove oil strainer (D) from oil line (F) and
clean oil strainer in suitable solvent, or replace if
damaged.
D
(J)
A
B
C
E
F
D
