CHAIN BRAKE SYSTEM
45
CS-2511WES
251Ws

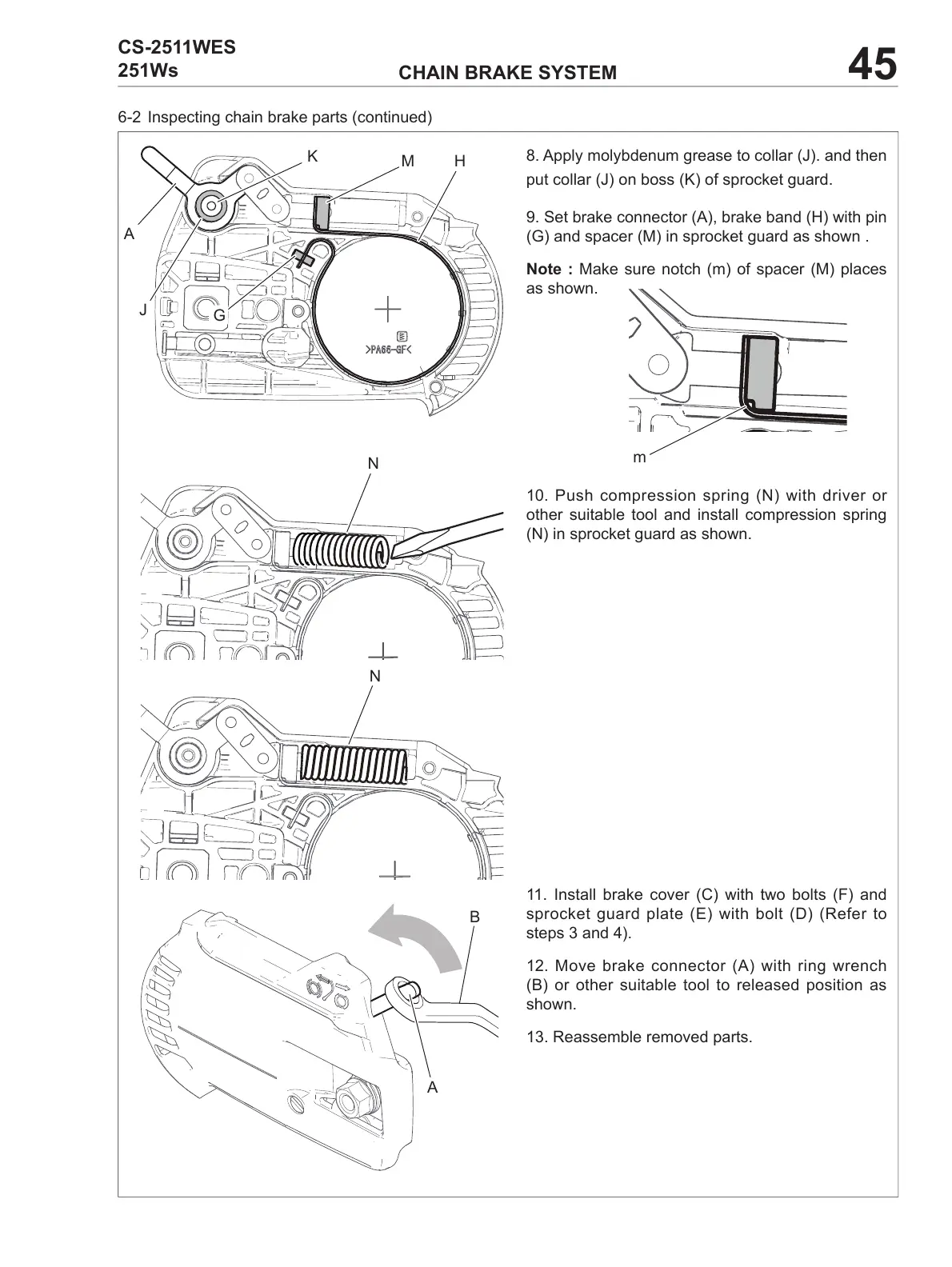

6-2 Inspecting chain brake parts (continued)
8. Apply molybdenum grease to collar (J). and then
put collar (J) on boss (K) of sprocket guard.
9. Set brake connector (A), brake band (H) with pin
(G) and spacer (M) in sprocket guard as shown .
Note:Make sure notch (m) of spacer (M) places
as shown.
10. Push compression spring (N) with driver or
other suitable tool and install compression spring
(N) in sprocket guard as shown.
11. Install brake cover (C) with two bolts (F) and
sprocket guard plate (E) with bolt (D) (Refer to
steps 3 and 4).
12. Move brake connector (A) with ring wrench
(B) or other suitable tool to released position as
shown.
13. Reassemble removed parts.
A
K
J
G
M
H
m
N
N
A
B
