CHAIN BRAKE SYSTEM
44
CS-2511WES
251Ws

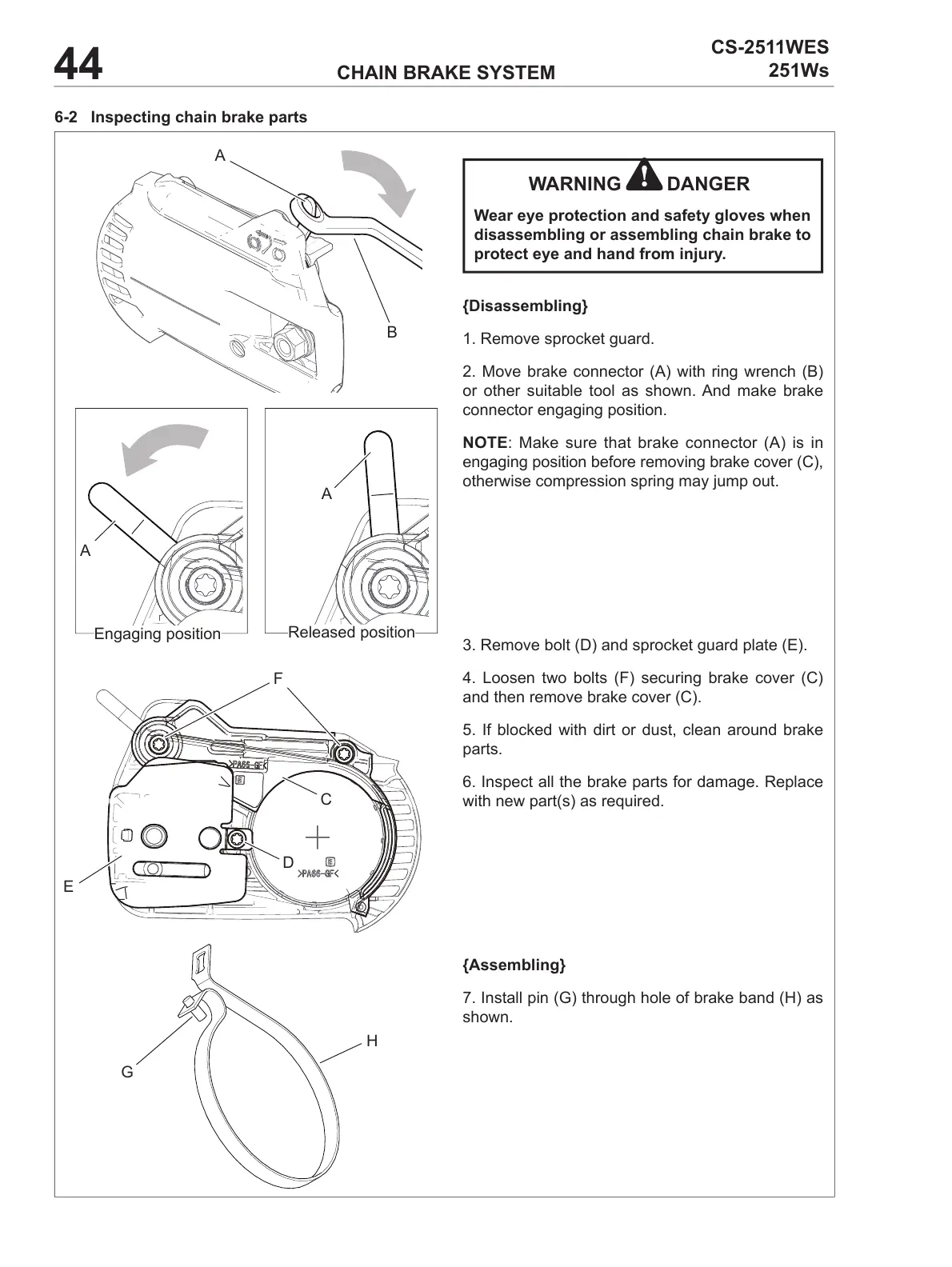

6-2 Inspectingchainbrakeparts
WARNING DANGER
Weareyeprotectionandsafetygloveswhen
disassemblingorassemblingchainbraketo
protecteyeandhandfrominjury.
{Disassembling}
1. Remove sprocket guard.
2. Move brake connector (A) with ring wrench (B)
or other suitable tool as shown. And make brake
connector engaging position.
NOTE: Make sure that brake connector (A) is in
engaging position before removing brake cover (C),
otherwise compression spring may jump out.
3. Remove bolt (D) and sprocket guard plate (E).
4. Loosen two bolts (F) securing brake cover (C)
and then remove brake cover (C).
5. If blocked with dirt or dust, clean around brake
parts.
6. Inspect all the brake parts for damage. Replace
with new part(s) as required.
{Assembling}
7. Install pin (G) through hole of brake band (H) as
shown.
D
E
C
G
H
Engaging position
Released position
A
B
A
A
F
To Next Page
