Echo CS-2511WES Service Manual

STARTER SYSTEM
11
CS-2511WES
251Ws

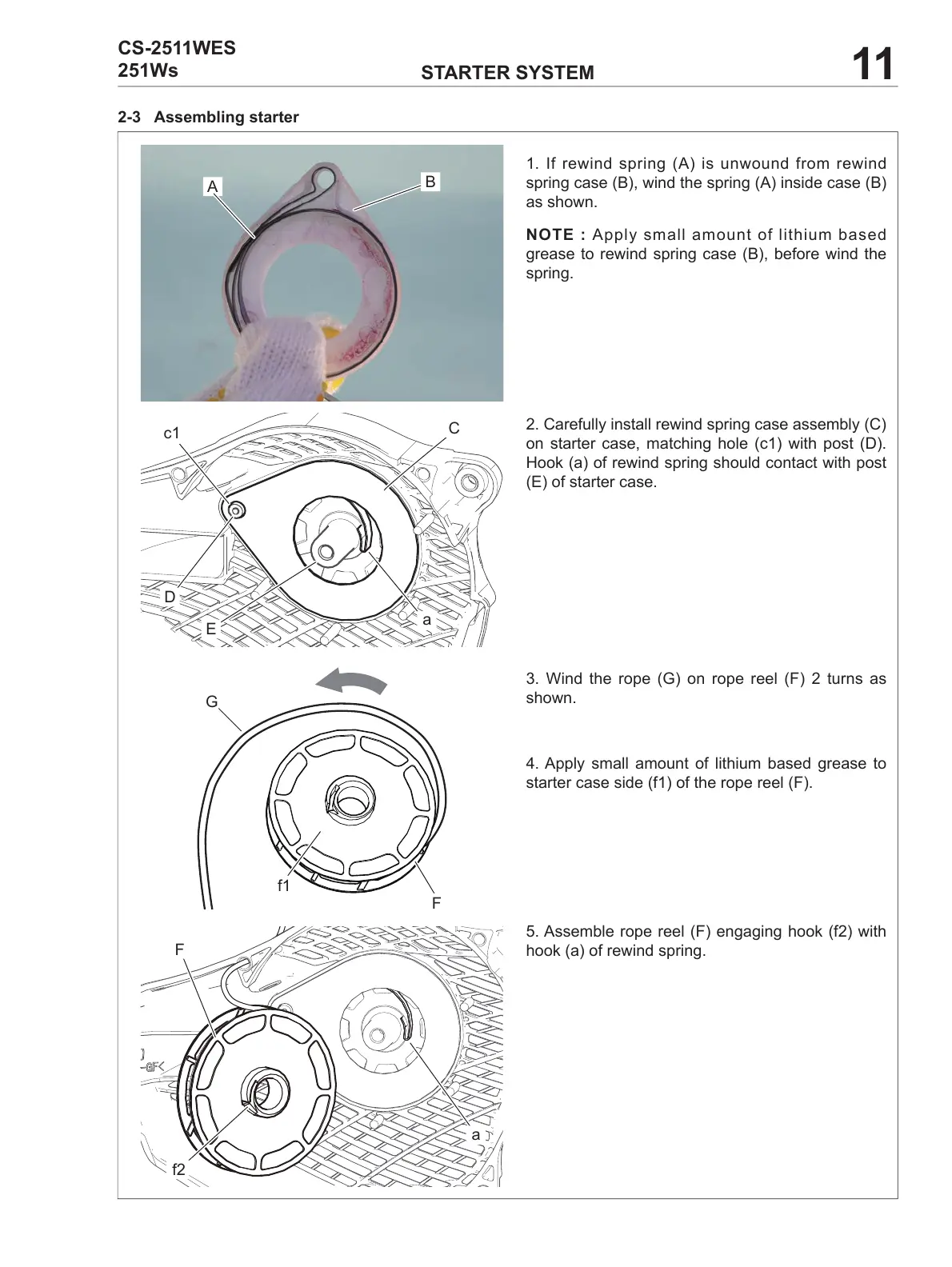

2-3 Assemblingstarter
1. If rewind spring (A) is unwound from rewind
spring case (B), wind the spring (A) inside case (B)
as shown.
NOTE : Apply small amount of lithium based
grease to rewind spring case (B), before wind the
spring.
2. Carefully install rewind spring case assembly (C)
on starter case, matching hole (c1) with post (D).
Hook (a) of rewind spring should contact with post
(E) of starter case.
3. Wind the rope (G) on rope reel (F) 2 turns as
shown.
4. Apply small amount of lithium based grease to
starter case side (f1) of the rope reel (F).
5. Assemble rope reel (F) engaging hook (f2) with
hook (a) of rewind spring.
A
B
f1
G
c1
C
D
E
a
F
F
f2
a
