IGNITION SYSTEM
20
CS-2511WES
251Ws

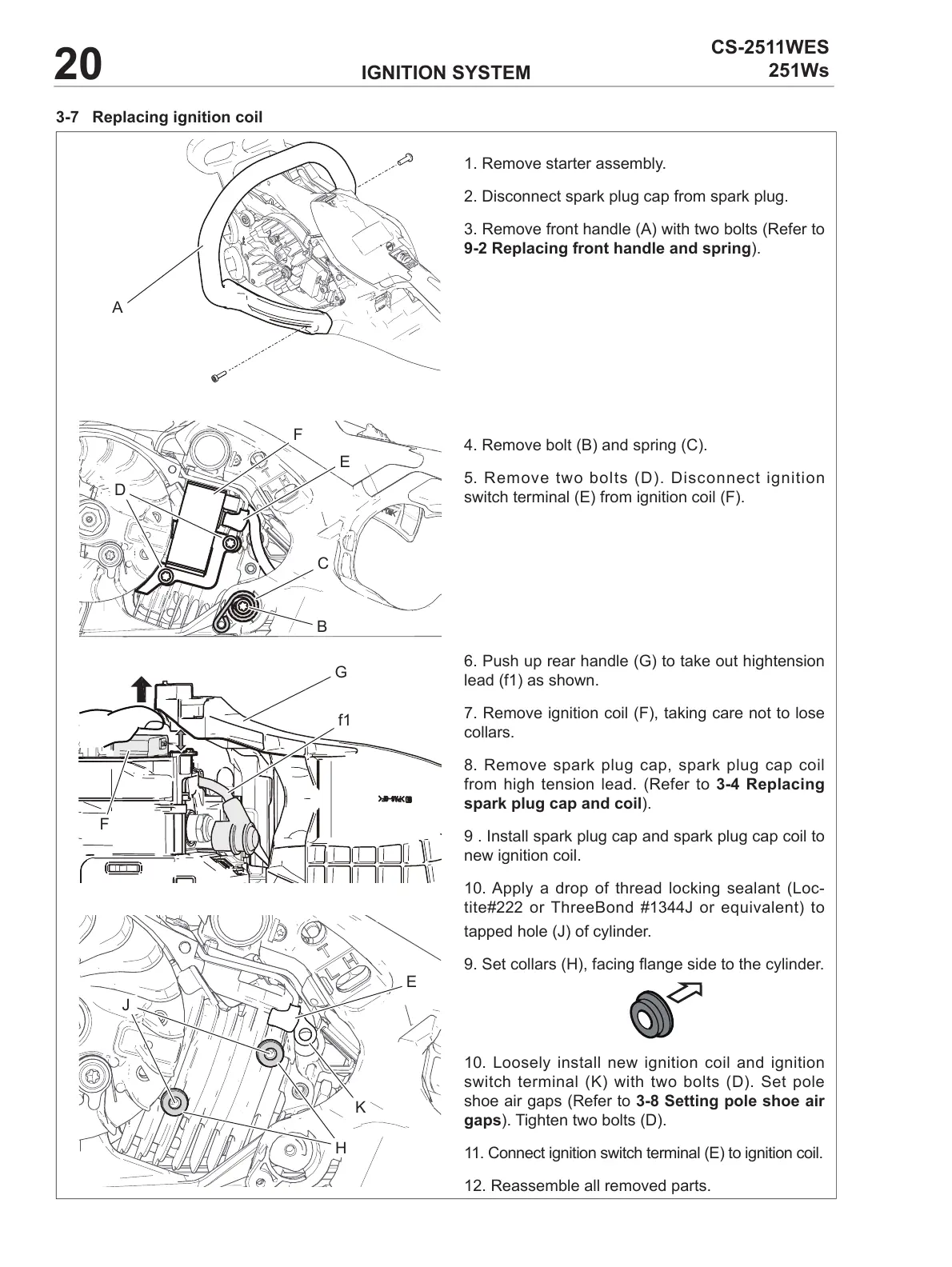

3-7 Replacingignitioncoil
1. Remove starter assembly.
2. Disconnect spark plug cap from spark plug.
3. Remove front handle (A) with two bolts (Refer to
9-2Replacingfronthandleandspring).
4. Remove bolt (B) and spring (C).
5. Remove two bolts (D). Disconnect ignition
switch terminal (E) from ignition coil (F).
6. Push up rear handle (G) to take out hightension
lead (f1) as shown.
7. Remove ignition coil (F), taking care not to lose
collars.
8. Remove spark plug cap, spark plug cap coil
from high tension lead. (Refer to 3-4 Replacing
sparkplugcapandcoil).
9 . Install spark plug cap and spark plug cap coil to
new ignition coil.
10. Apply a drop of thread locking sealant (Loc-
tite#222 or ThreeBond #1344J or equivalent) to
tapped hole (J) of cylinder.
9. Set collars (H), facing ange side to the cylinder.
10. Loosely install new ignition coil and ignition
switch terminal (K) with two bolts (D). Set pole
shoe air gaps (Refer to 3-8Settingpoleshoeair
gaps). Tighten two bolts (D).
11. Connect ignition switch terminal (E) to ignition coil.
12. Reassemble all removed parts.
A
B
C
D
E
F
G
F
J
H
E
K
f1
