Echo CS-2511WES Service Manual

ENGINE
53
CS-2511WES
251Ws

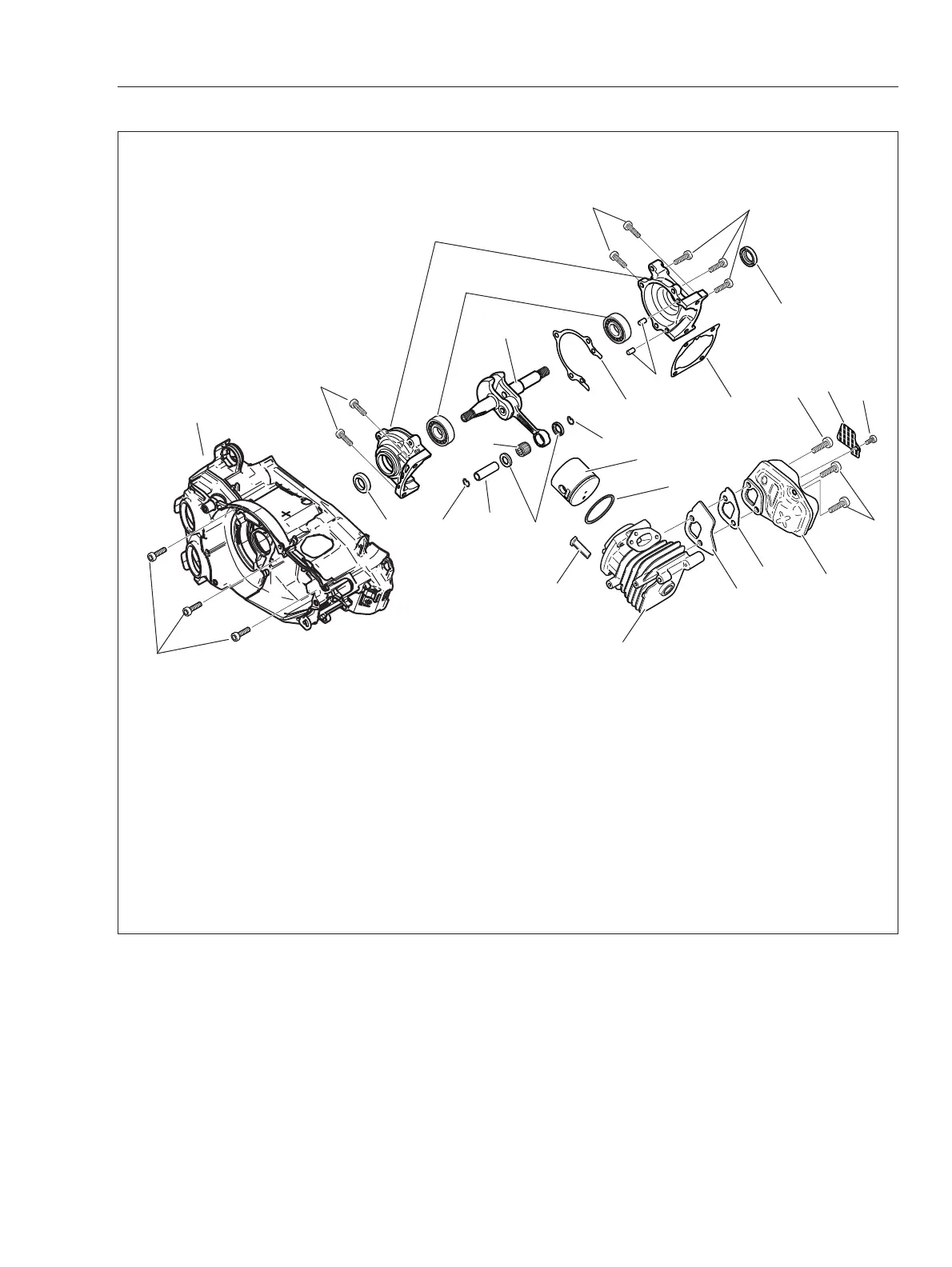

8 ENGINE
(A) Crankcase
(B) Oil seal
(C) Ball bearing
(D) Gasket (Crankcase)
(E) Pin
(F) Bolt (M4)
(G) Crankshaft
(H) Needle bearing
(J) Piston pin spacer
(K) Piston pin
(A)
(D)
(F)
(H)
(K)
(E)
(J)
(L)
(L)
(M)
(N)
(O)
(P)
(R)
(R)
(Q)
(S)
(T)
(U)
(V)
(V)
(W)
(X)
(Y)
(Z)
(L) Snap ring
(M) Piston
(N) Piston ring
(O) Cylinder
(P) Cylinder piece
(Q) Gasket (Cylinder)
(R) Bolt (M4)
(S) Exhaust plate
(T) Exhaust gasket
(U) Mufer
(V) Bolt (M5)
(W) Spark arrester screen
(X) Screw (M4)
(Y) Engine cover
(Z) Bolt (M4)
(B)
(B)
(C)
(G)
