Echo CS-2511WES Service Manual

STARTER SYSTEM
10
CS-2511WES
251Ws

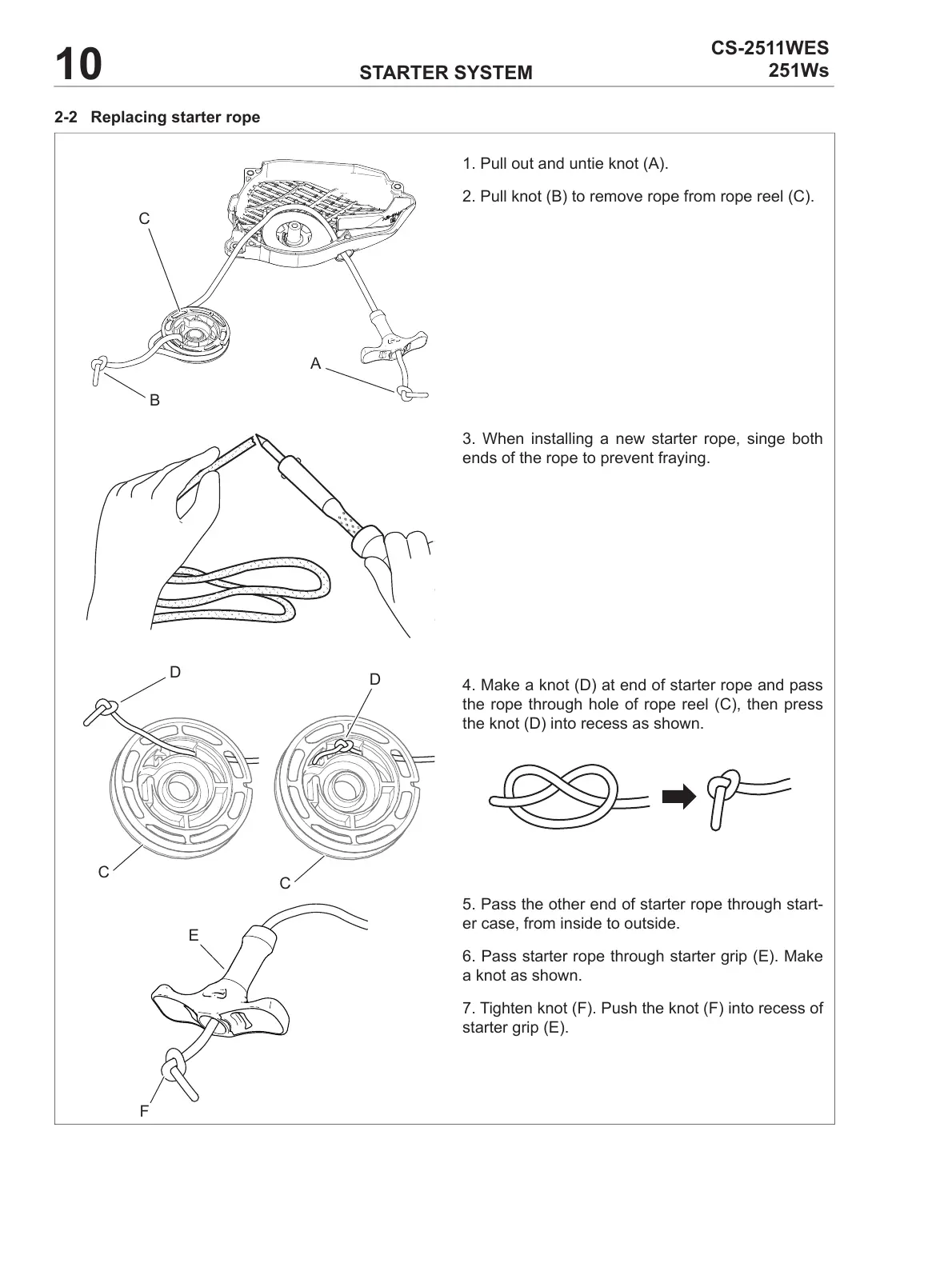

2-2 Replacingstarterrope
1. Pull out and untie knot (A).
2. Pull knot (B) to remove rope from rope reel (C).
4. Make a knot (D) at end of starter rope and pass
the rope through hole of rope reel (C), then press
the knot (D) into recess as shown.
3. When installing a new starter rope, singe both
ends of the rope to prevent fraying.
5. Pass the other end of starter rope through start-
er case, from inside to outside.
6. Pass starter rope through starter grip (E). Make
a knot as shown.
7. Tighten knot (F). Push the knot (F) into recess of
starter grip (E).
4K287
C
C
E
A
C
B
F
D
D
