Echo CS-2511WES Service Manual

GUIDE BAR MOUNTING SYSTEM
72
CS-2511WES
251Ws

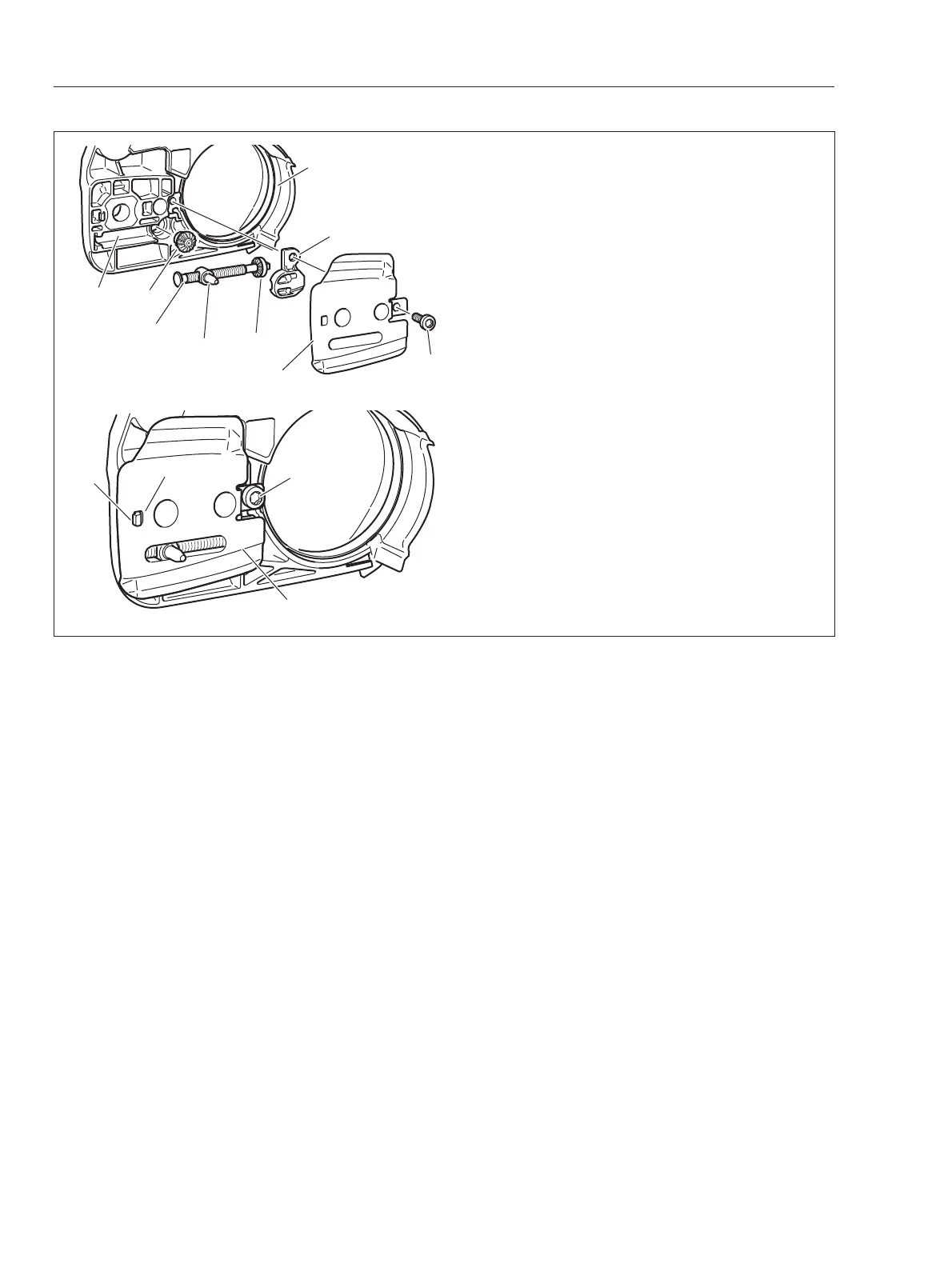

10-2Replacingchaintensioner
{Disassembling}
1. Remove bolt (A), sprocket guard plate (B), cover
(C), tensioner screw (D), chain tensioner (E), bevel
gear (F) and (G) from sprocket guard (H).
2. Check removed parts for damage or wear. Re-
place with new part(s) as required.
{Assembling}
3. Install bevel gear (G) into sprocket guard (H).
4. Screw chain tensioner (E) on tensioner screw (D).
5. Put bevel gear (F) on tensioner screw (D).
6. Install sub assembled tensioner screw in slot (h1)
of sprocket guard (H) confirming engagement of
bevel gear (F) and (G).
7. Reassemble cover (C) and sprocket guard plate
(B). Tighten bolt (A).
NOTE : Make sure to hook tub (h2) on sprocket
gurad to hole (b) of sprocket guard plate (B)
A
B
C
D
E
F
G
H
h1
A
B
h2
b
