Echo CS-2511WES Service Manual

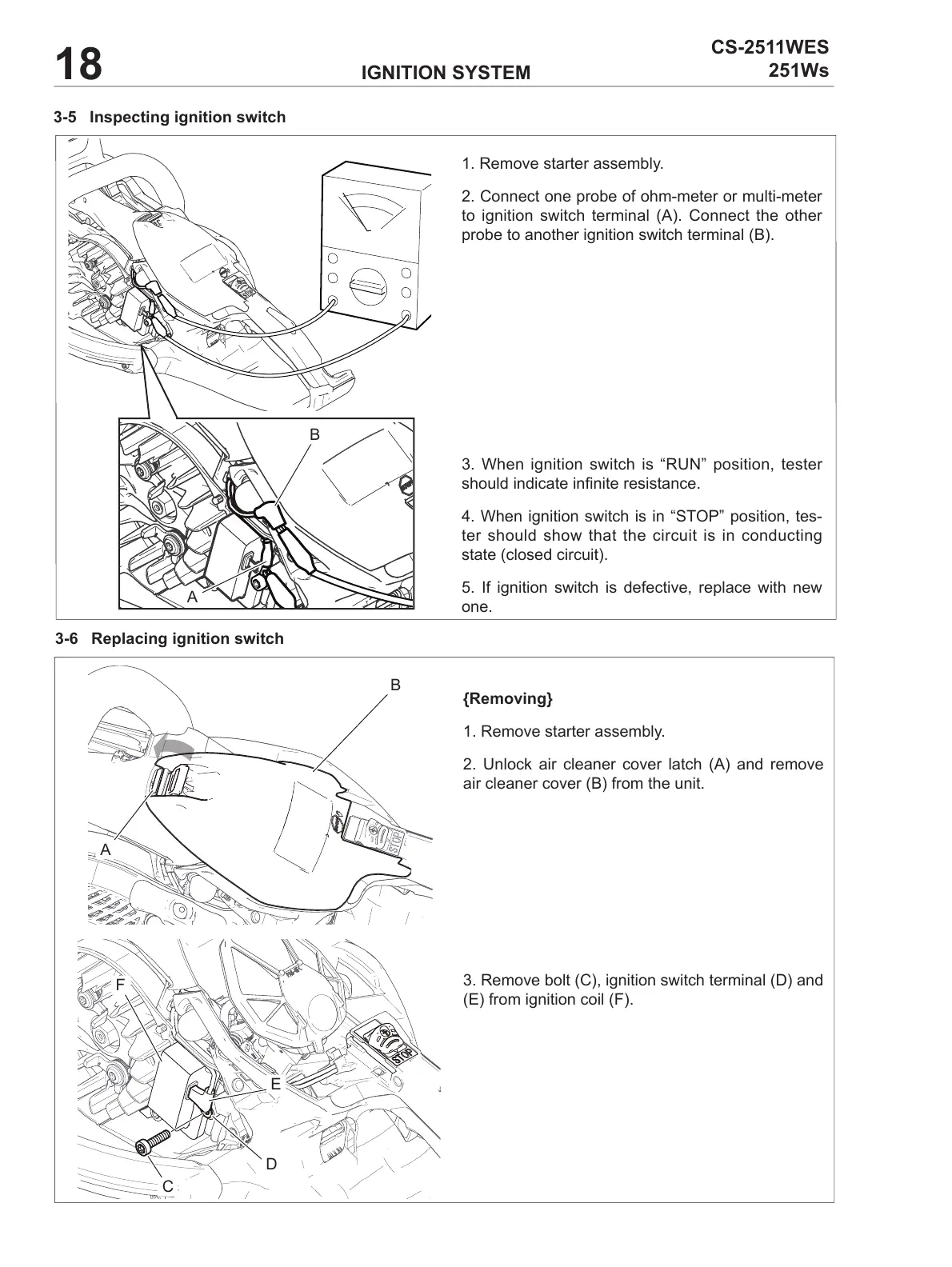

IGNITION SYSTEM
18
CS-2511WES
251Ws
3-5 Inspectingignitionswitch
1. Remove starter assembly.
2. Connect one probe of ohm-meter or multi-meter
to ignition switch terminal (A). Connect the other
probe to another ignition switch terminal (B).
3. When ignition switch is “RUN” position, tester
should indicate innite resistance.
4. When ignition switch is in “STOP” position, tes-
ter should show that the circuit is in conducting
state (closed circuit).
5. If ignition switch is defective, replace with new
one.
3-6 Replacingignitionswitch
{Removing}
1. Remove starter assembly.
2. Unlock air cleaner cover latch (A) and remove
air cleaner cover (B) from the unit.
3. Remove bolt (C), ignition switch terminal (D) and
(E) from ignition coil (F).
B
B
A
C
D
E
F
A
