Echo CS-2511WES Service Manual

IGNITION SYSTEM
19
CS-2511WES
251Ws

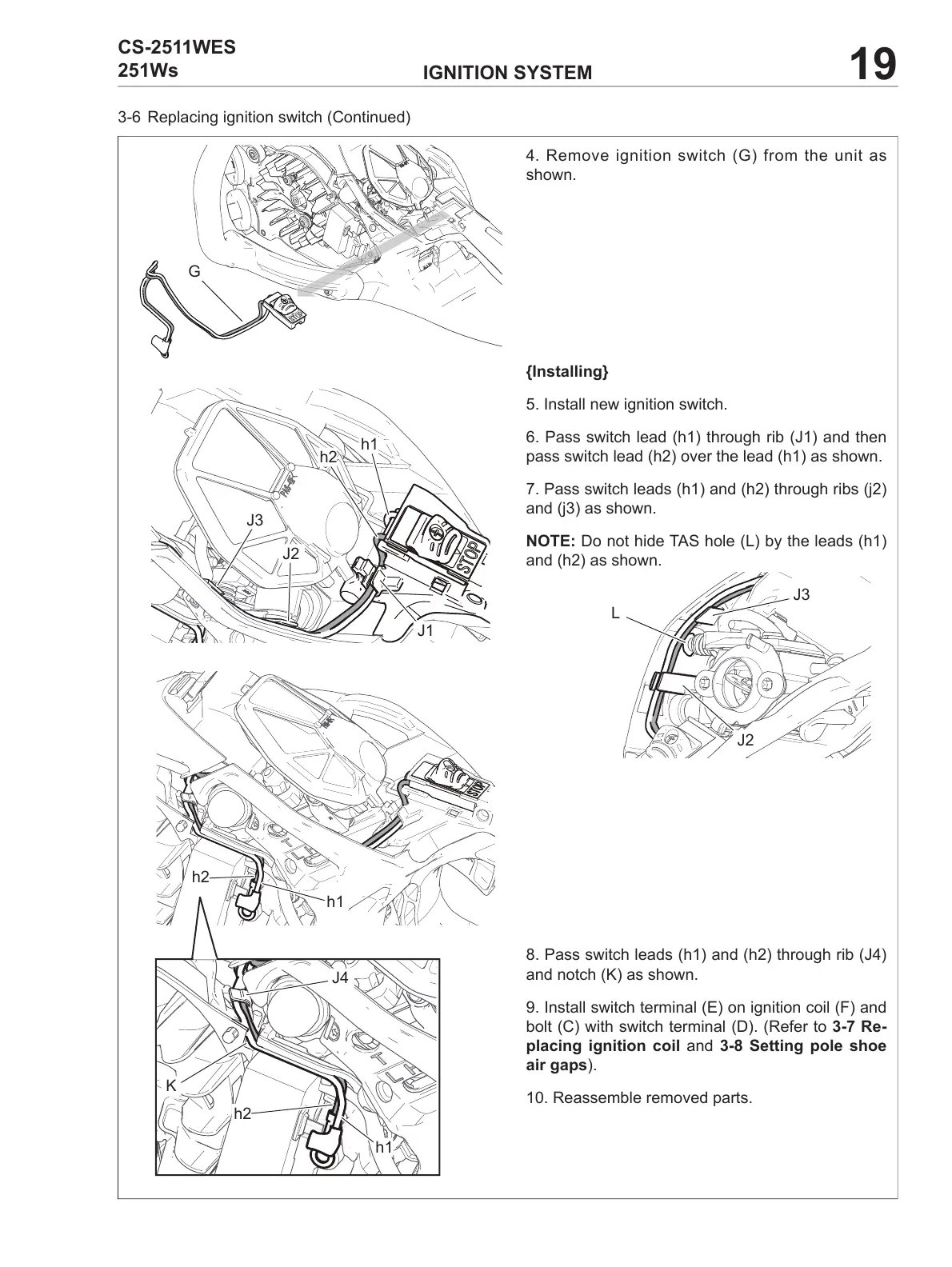

3-6 Replacing ignition switch (Continued)
4. Remove ignition switch (G) from the unit as
shown.
{Installing}
5. Install new ignition switch.
6. Pass switch lead (h1) through rib (J1) and then
pass switch lead (h2) over the lead (h1) as shown.
7. Pass switch leads (h1) and (h2) through ribs (j2)
and (j3) as shown.
NOTE: Do not hide TAS hole (L) by the leads (h1)
and (h2) as shown.
8. Pass switch leads (h1) and (h2) through rib (J4)
and notch (K) as shown.
9. Install switch terminal (E) on ignition coil (F) and
bolt (C) with switch terminal (D). (Refer to 3-7 Re-
placing ignition coil and 3-8 Setting pole shoe
air gaps).
10. Reassemble removed parts.
G
K
J4
h1
h2
h1
h2
h2
J3
J1
J2
h1
J2
J3
L
