FUEL SYSTEM
38
CS-2511WES
251Ws

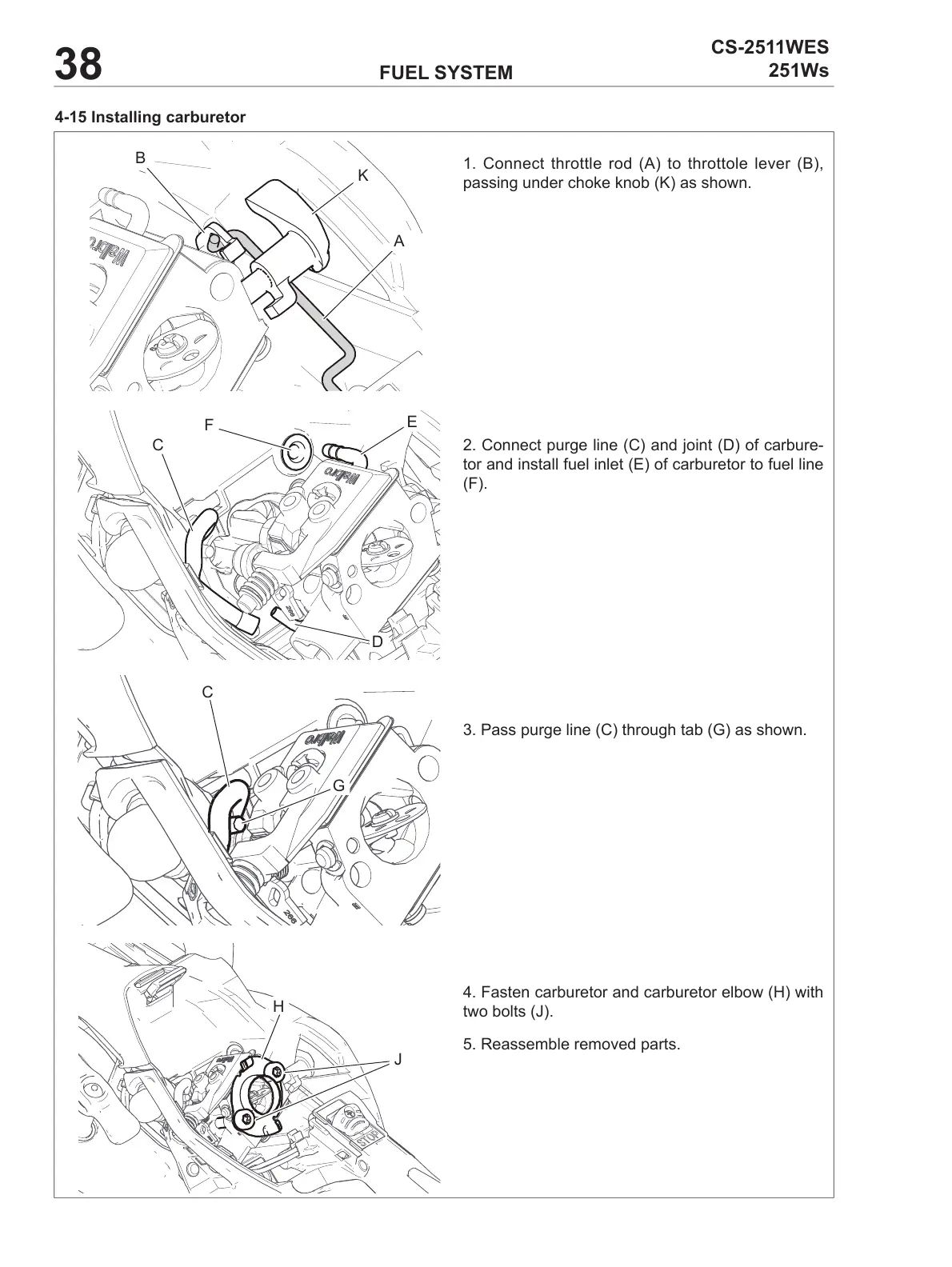

4-15Installingcarburetor
1. Connect throttle rod (A) to throttole lever (B),
passing under choke knob (K) as shown.
2. Connect purge line (C) and joint (D) of carbure-
tor and install fuel inlet (E) of carburetor to fuel line
(F).
3. Pass purge line (C) through tab (G) as shown.
4. Fasten carburetor and carburetor elbow (H) with
two bolts (J).
5. Reassemble removed parts.
H
C
F
E
C
G
J
D
A
K
B
