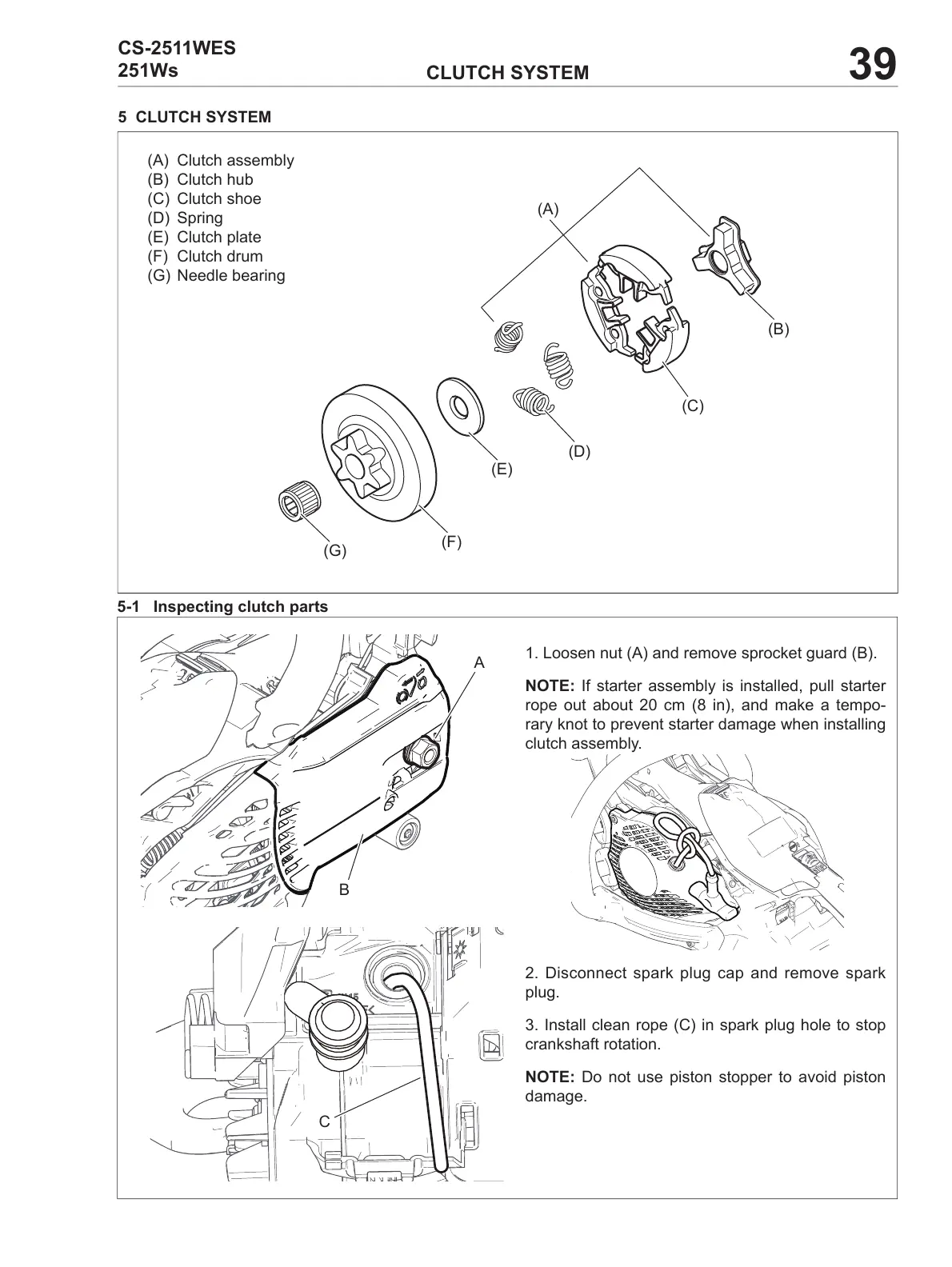

CLUTCH SYSTEM
39
CS-2511WES
251Ws
5 CLUTCH SYSTEM
(B)
(A) Clutch assembly
(B) Clutch hub
(C) Clutch shoe
(D) Spring
(E) Clutch plate
(F) Clutch drum
(G) Needle bearing
(C)
(D)
(E)
(F)
(G)
(A)
5-1 Inspecting clutch parts
1. Loosen nut (A) and remove sprocket guard (B).
NOTE: If starter assembly is installed, pull starter
rope out about 20 cm (8 in), and make a tempo-
rary knot to prevent starter damage when installing
clutch assembly.
2. Disconnect spark plug cap and remove spark
plug.
3. Install clean rope (C) in spark plug hole to stop
crankshaft rotation.
NOTE: Do not use piston stopper to avoid piston
damage.
A
B
C
