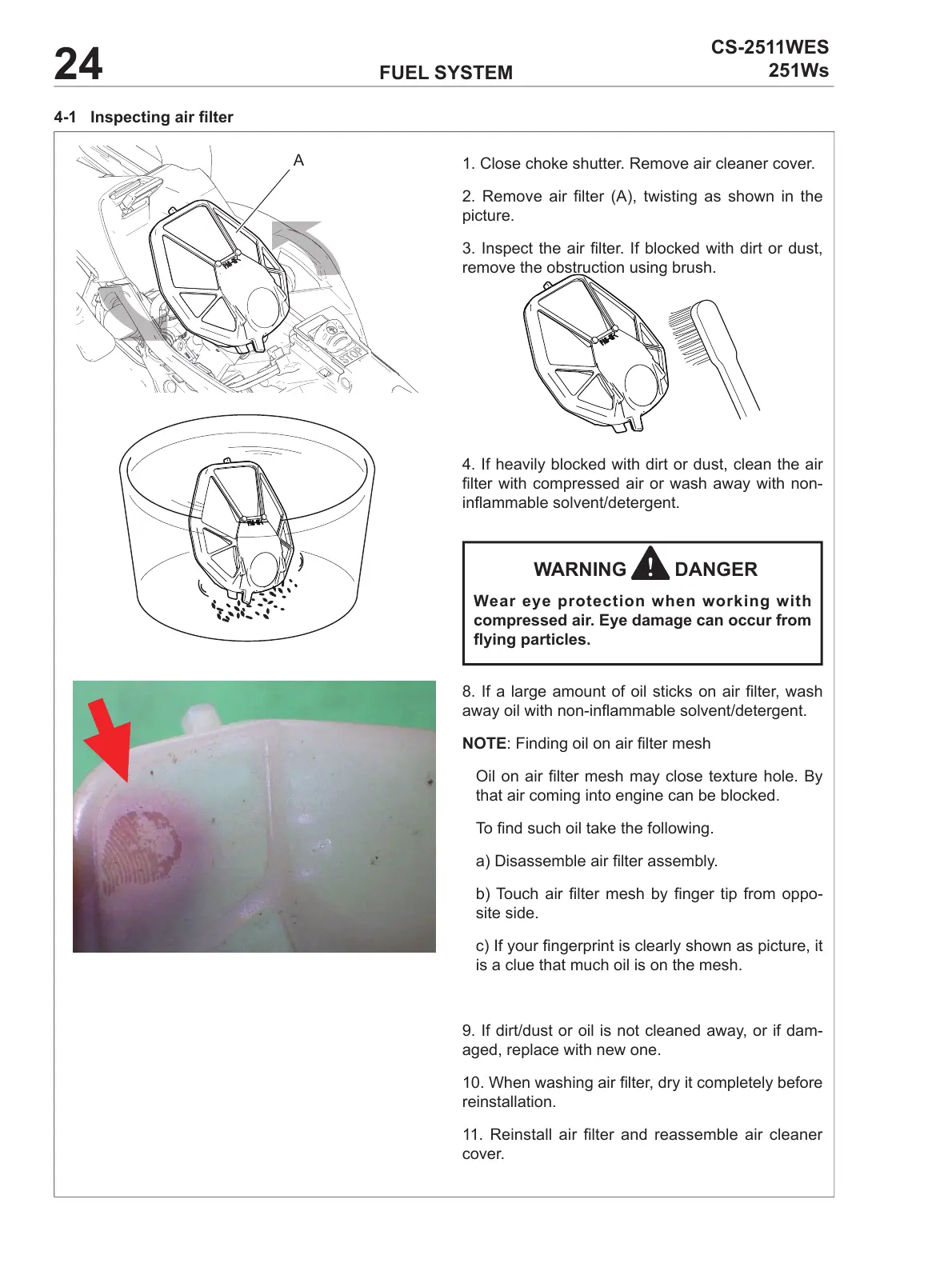

4-1 Inspectingairlter
1. Close choke shutter. Remove air cleaner cover.
2. Remove air lter (A), twisting as shown in the
picture.
3. Inspect the air lter. If blocked with dirt or dust,
remove the obstruction using brush.
4. If heavily blocked with dirt or dust, clean the air
lter with compressed air or wash away with non-
inammable solvent/detergent.
WARNING DANGER
Wear eye protection when working with
compressedair.Eyedamagecanoccurfrom
yingparticles.
8. If a large amount of oil sticks on air lter, wash
away oil with non-inammable solvent/detergent.
NOTE: Finding oil on air lter mesh
Oil on air lter mesh may close texture hole. By
that air coming into engine can be blocked.
To nd such oil take the following.
a) Disassemble air lter assembly.
b) Touch air lter mesh by nger tip from oppo-
site side.
c) If your ngerprint is clearly shown as picture, it
is a clue that much oil is on the mesh.
9. If dirt/dust or oil is not cleaned away, or if dam-
aged, replace with new one.
10. When washing air lter, dry it completely before
reinstallation.
11. Reinstall air lter and reassemble air cleaner
cover.
A
