HANDLE AND CONTROL SYSTEM
69
CS-2511WES
251Ws

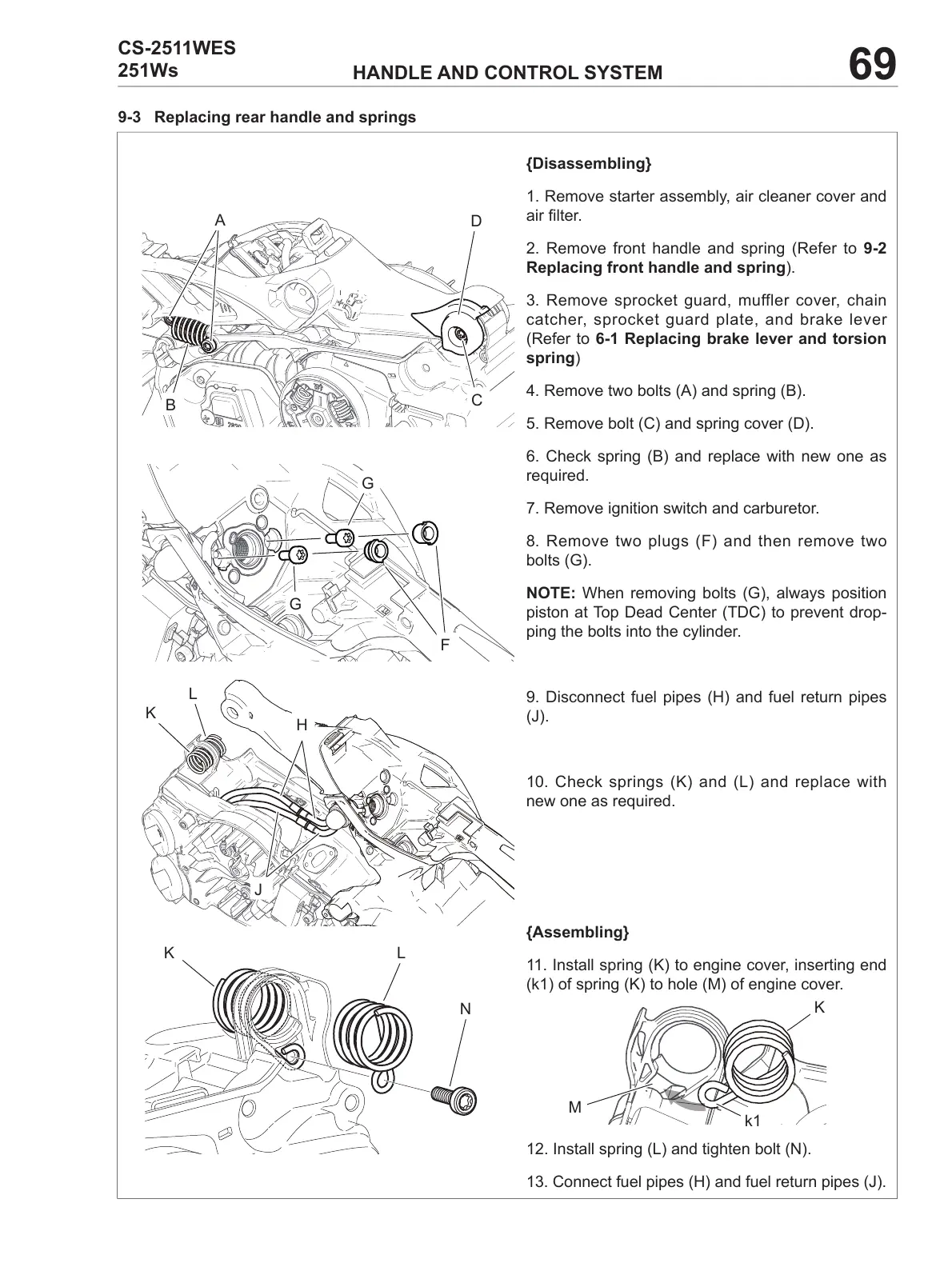

9-3 Replacing rear handle and springs
{Disassembling}
1. Remove starter assembly, air cleaner cover and
air lter.
2. Remove front handle and spring (Refer to 9-2
Replacingfronthandleandspring).
3. Remove sprocket guard, muffler cover, chain
catcher, sprocket guard plate, and brake lever
(Refer to 6-1Replacingbrakeleverandtorsion
spring)
4. Remove two bolts (A) and spring (B).
5. Remove bolt (C) and spring cover (D).
6. Check spring (B) and replace with new one as
required.
7. Remove ignition switch and carburetor.
8. Remove two plugs (F) and then remove two
bolts (G).
NOTE: When removing bolts (G), always position
piston at Top Dead Center (TDC) to prevent drop-
ping the bolts into the cylinder.
9. Disconnect fuel pipes (H) and fuel return pipes
(J).
10. Check springs (K) and (L) and replace with
new one as required.
{Assembling}
11. Install spring (K) to engine cover, inserting end
(k1) of spring (K) to hole (M) of engine cover.
12. Install spring (L) and tighten bolt (N).
13. Connect fuel pipes (H) and fuel return pipes (J).
A
D
F
G
G
H
B
C
J
K
L
K L
N
M
K
k1
To Next Page
