HANDLE AND CONTROL SYSTEM
68
CS-2511WES
251Ws

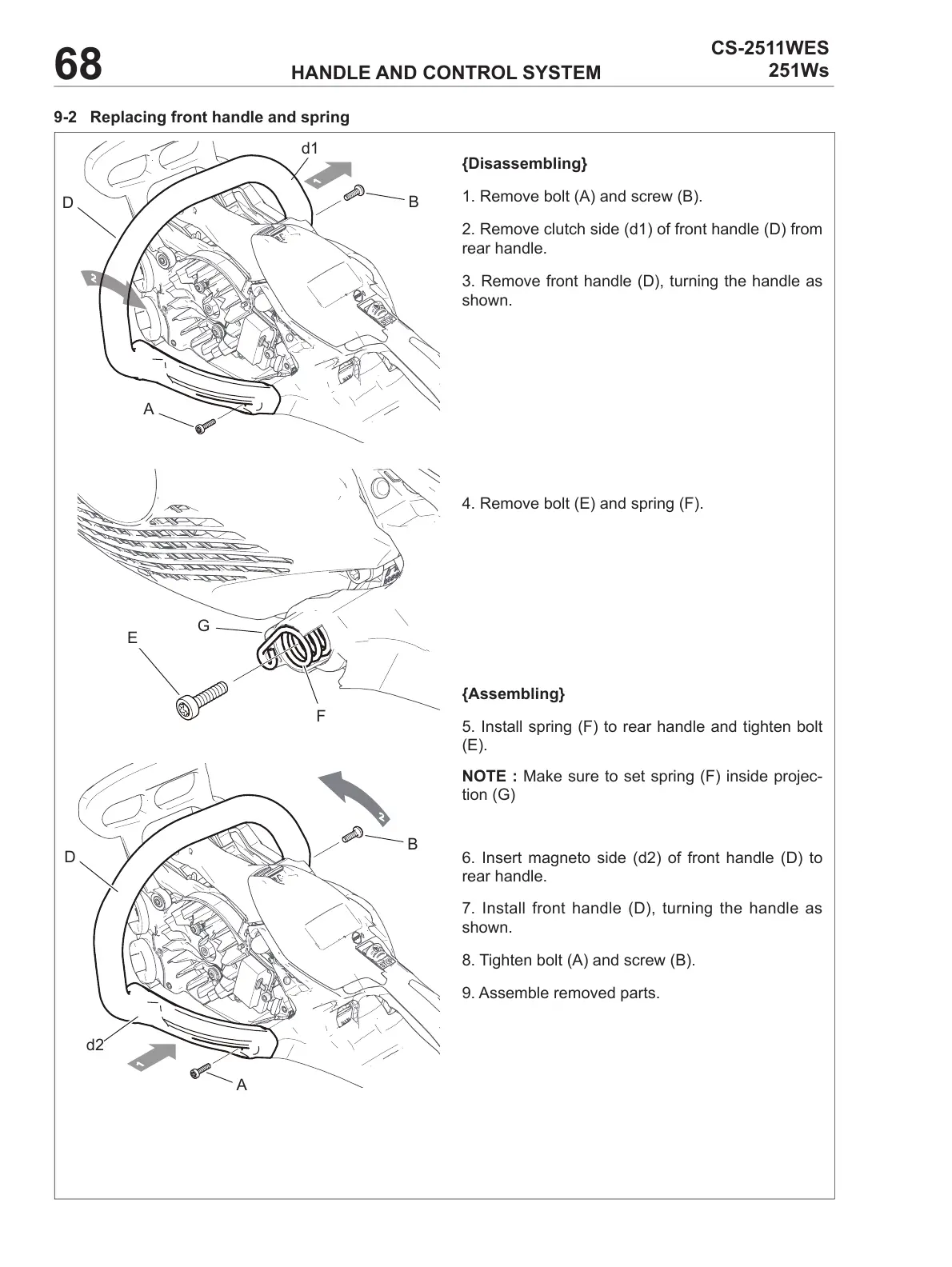

9-2 Replacingfronthandleandspring
{Disassembling}
1. Remove bolt (A) and screw (B).
2. Remove clutch side (d1) of front handle (D) from
rear handle.
3. Remove front handle (D), turning the handle as
shown.
4. Remove bolt (E) and spring (F).
{Assembling}
5. Install spring (F) to rear handle and tighten bolt
(E).
NOTE : Make sure to set spring (F) inside projec-
tion (G)
6. Insert magneto side (d2) of front handle (D) to
rear handle.
7. Install front handle (D), turning the handle as
shown.
8. Tighten bolt (A) and screw (B).
9. Assemble removed parts.
A
B
D
d1
E
F
G
B
A
D
d2
