Echo CS-2511WES

HANDLE AND CONTROL SYSTEM
66
CS-2511WES
251Ws

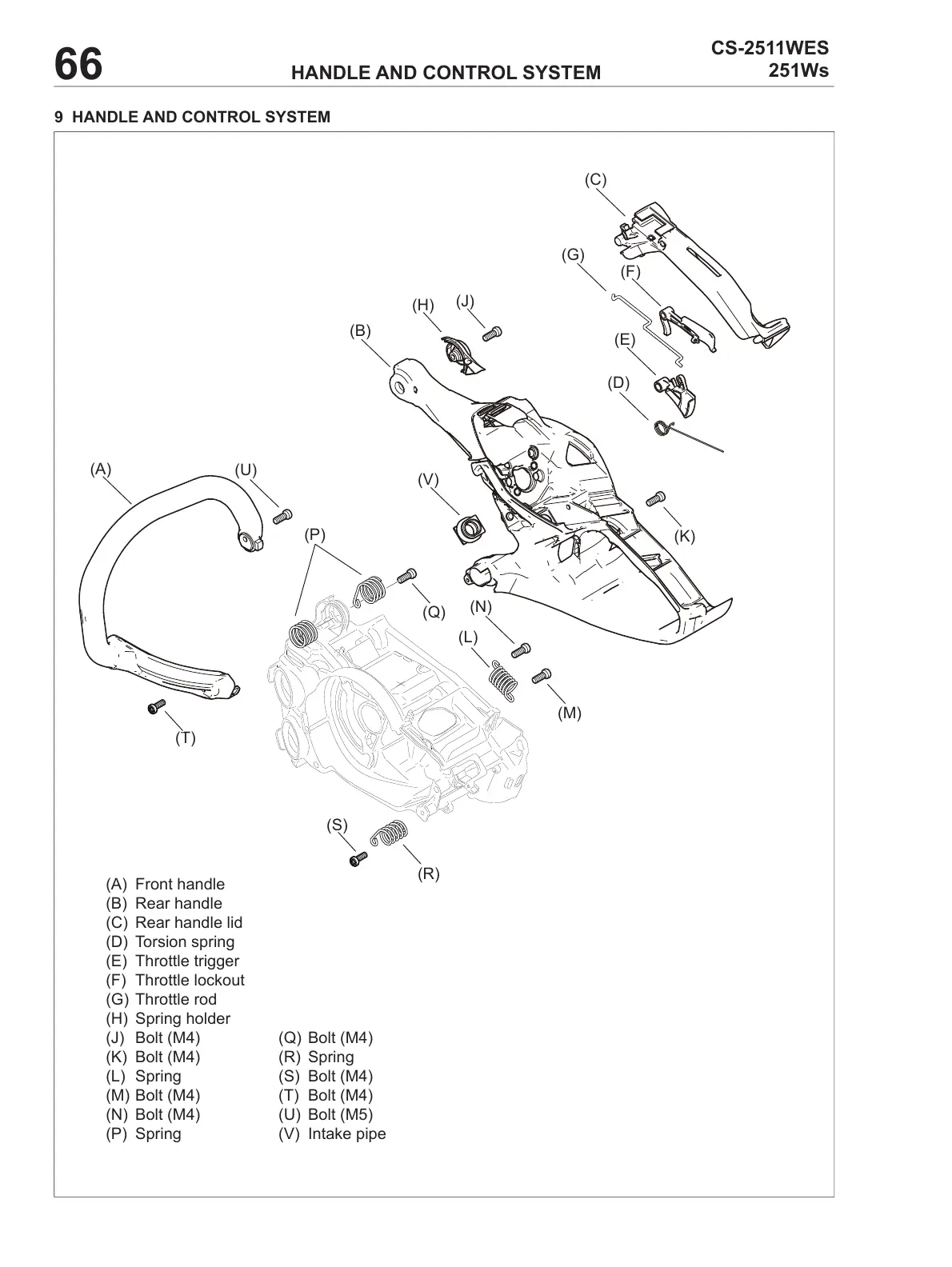

9 HANDLE AND CONTROL SYSTEM
(B)
(A) Front handle
(B) Rear handle
(C) Rear handle lid
(D) Torsion spring
(E) Throttle trigger
(F) Throttle lockout
(G) Throttle rod
(H) Spring holder
(J) Bolt (M4)
(K) Bolt (M4)
(L) Spring
(M) Bolt (M4)
(N) Bolt (M4)
(P) Spring
(D)
(E)
(F)
(A)
(C)
(G)
(H)
(J)
(K)
(M)
(L)
(N)
(P)
(Q)
(R)
(S)
(T)
(Q) Bolt (M4)
(R) Spring
(S) Bolt (M4)
(T) Bolt (M4)
(U) Bolt (M5)
(V) Intake pipe
(U)
(V)
