GUIDE BAR MOUNTING SYSTEM
71
CS-2511WES
251Ws

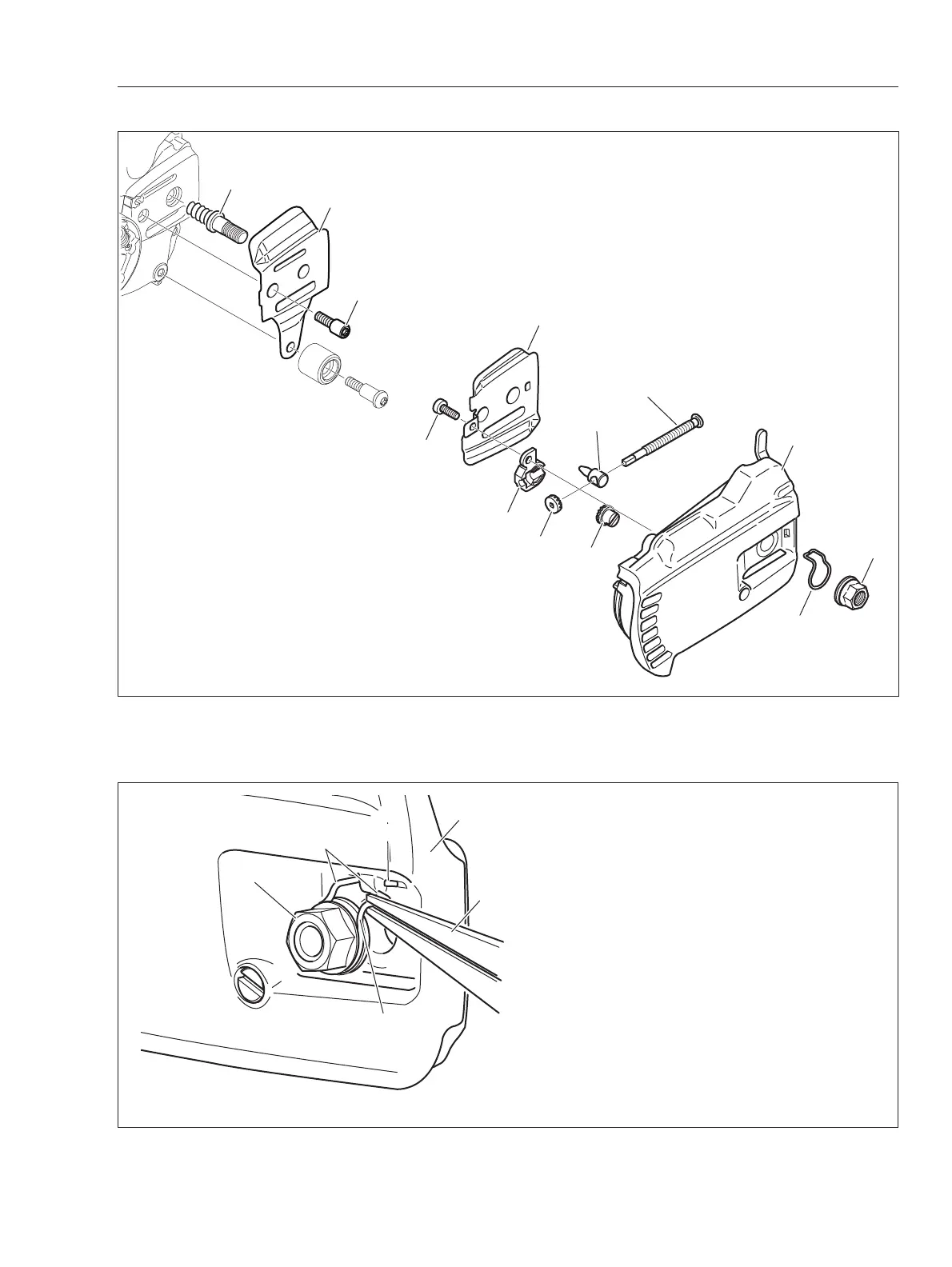

10 GUIDE BAR MOUNTING SYSTEM
(B)
(A) Nut
(B) Hook
(C) Sprocket guard
(D) Bevel gear
(E) Tensioner screw
(F) Chain tensioner
(G) Bevel gear
(H) Cover
(J) Sprocket guard plate
(K) Bolt (M4)
(L) Bolt (M5)
(M) Sprocket guard plate
(N) Stud bolt
(C)
(D)
(E)
(F)
(A)
(G)
(H)
(J)
(K)
(L)
(M)
(N)
10-1Replacingnutforxingguidebar
{Disassembling}
1. Pinch hook (A) with pliers (B) and remove hook
(A) and nut (C) from sprocket guard (D).
2. Remove nut (C) from hook (A).
3. Check removed parts and replace defective
parts with new one as required.
{Assembling}
4. Assemble nut (C) and hook (A).
5. Insert both ends (a) of hook (A) in holes (d) of
sprocket guard (D).
B
A
C
D
a
d
