Echo CS-2511WES Service Manual

SERVICE INFORMATION
6
CS-2511WES
251Ws

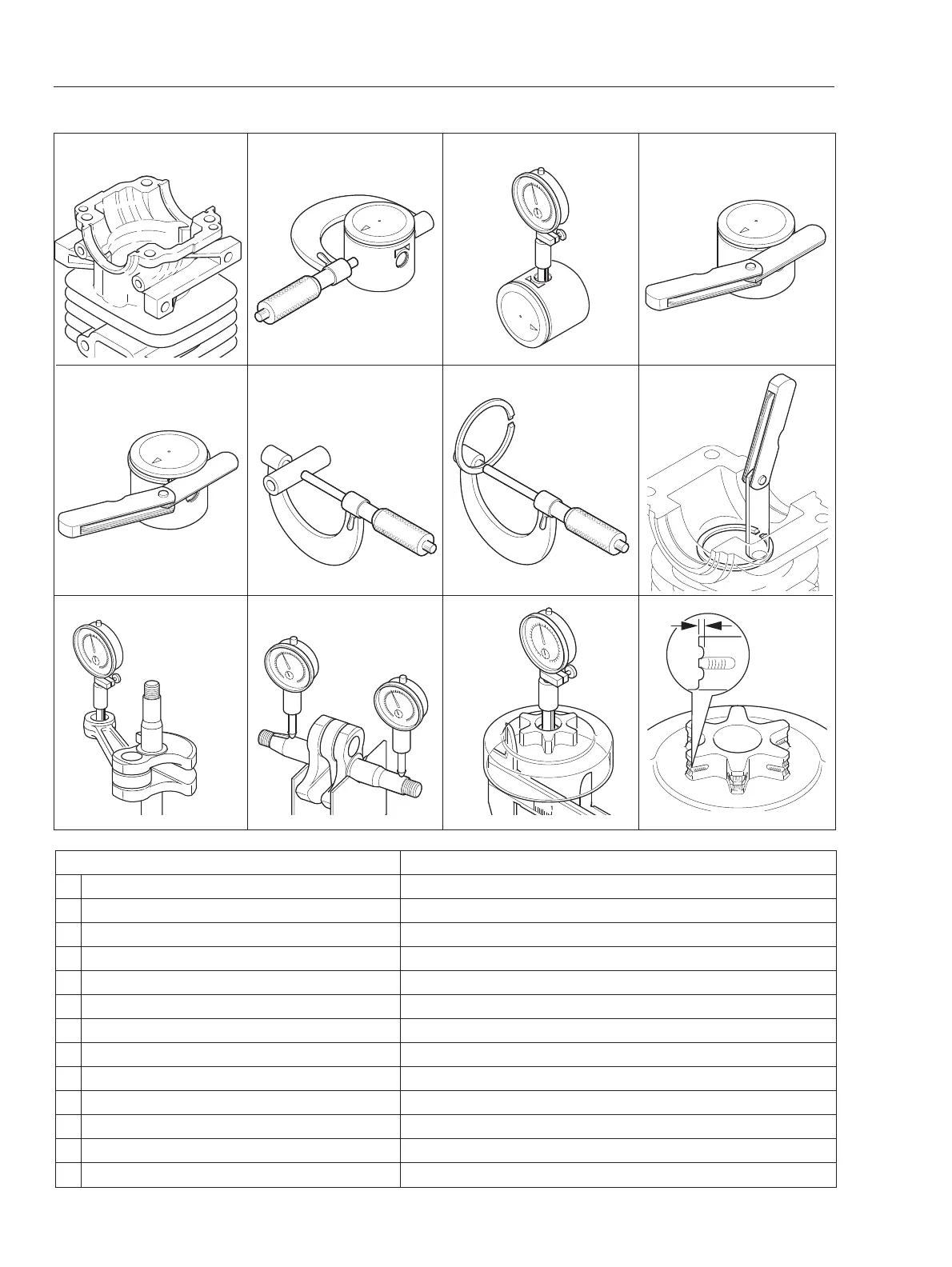

1-5 Servicelimits
A B C D
F G H
K L M P
N
E
Description mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B
Piston outer diameter Min. 34. 92 (1.375)
C
Piston pin bore Max. 8. 035 (0.3163)
D
Piston ring groove Max. 1. 3 (0.051)
E
Piston ring side clearance Max. 0. 1 (0.004)
F
Piston pin outer diameter Min. 7. 98 (0.3142)
G
Piston ring width Min. 1. 15 (0.045)
H
Piston ring end gap Max. 0. 5 (0.02)
K
Con-rod small end bore Max. 11. 03 (0.4341)
L
Crankshaft runout Max. 0. 02 (0.001)
M
Sprocket bore Max. 13. 07 (0.5146)
N
Clutch drum bore Max. 53. 5 (2.11)
P
Sprocket wear limit Max. 0. 5 (0.02)
