Echo CS-2511WES

FUEL SYSTEM
25
CS-2511WES
251Ws
4-3 Inspectingfuelcapandfuelstrainer

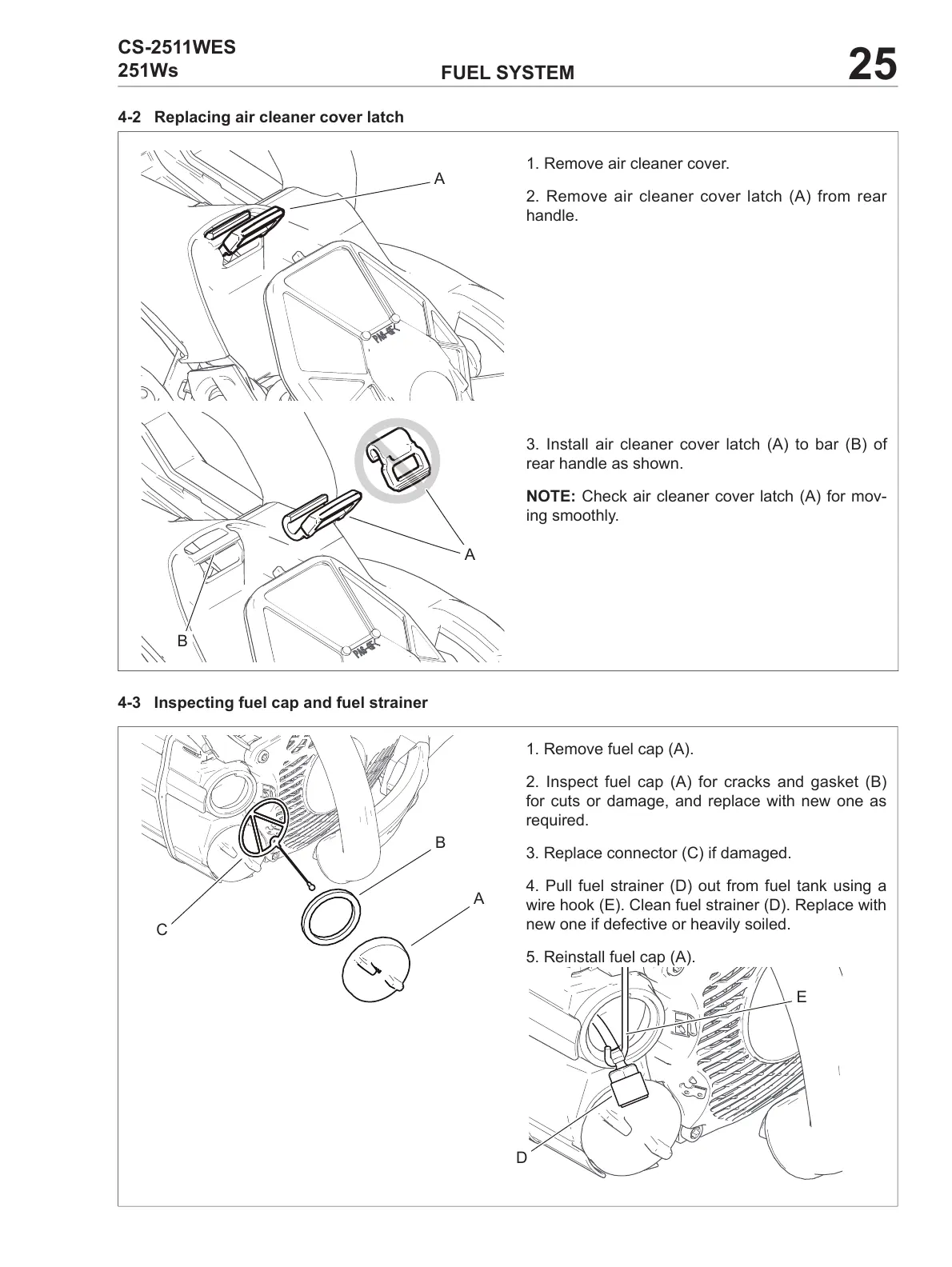

1. Remove fuel cap (A).
2. Inspect fuel cap (A) for cracks and gasket (B)
for cuts or damage, and replace with new one as
required.
3. Replace connector (C) if damaged.
4. Pull fuel strainer (D) out from fuel tank using a
wire hook (E). Clean fuel strainer (D). Replace with
new one if defective or heavily soiled.
5. Reinstall fuel cap (A).
4-2 Replacingaircleanercoverlatch
1. Remove air cleaner cover.
2. Remove air cleaner cover latch (A) from rear
handle.
3. Install air cleaner cover latch (A) to bar (B) of
rear handle as shown.
NOTE: Check air cleaner cover latch (A) for mov-
ing smoothly.
A
A
B
E
D
A
B
C
