Echo CS-2511WES Service Manual

FUEL SYSTEM
23
CS-2511WES
251Ws

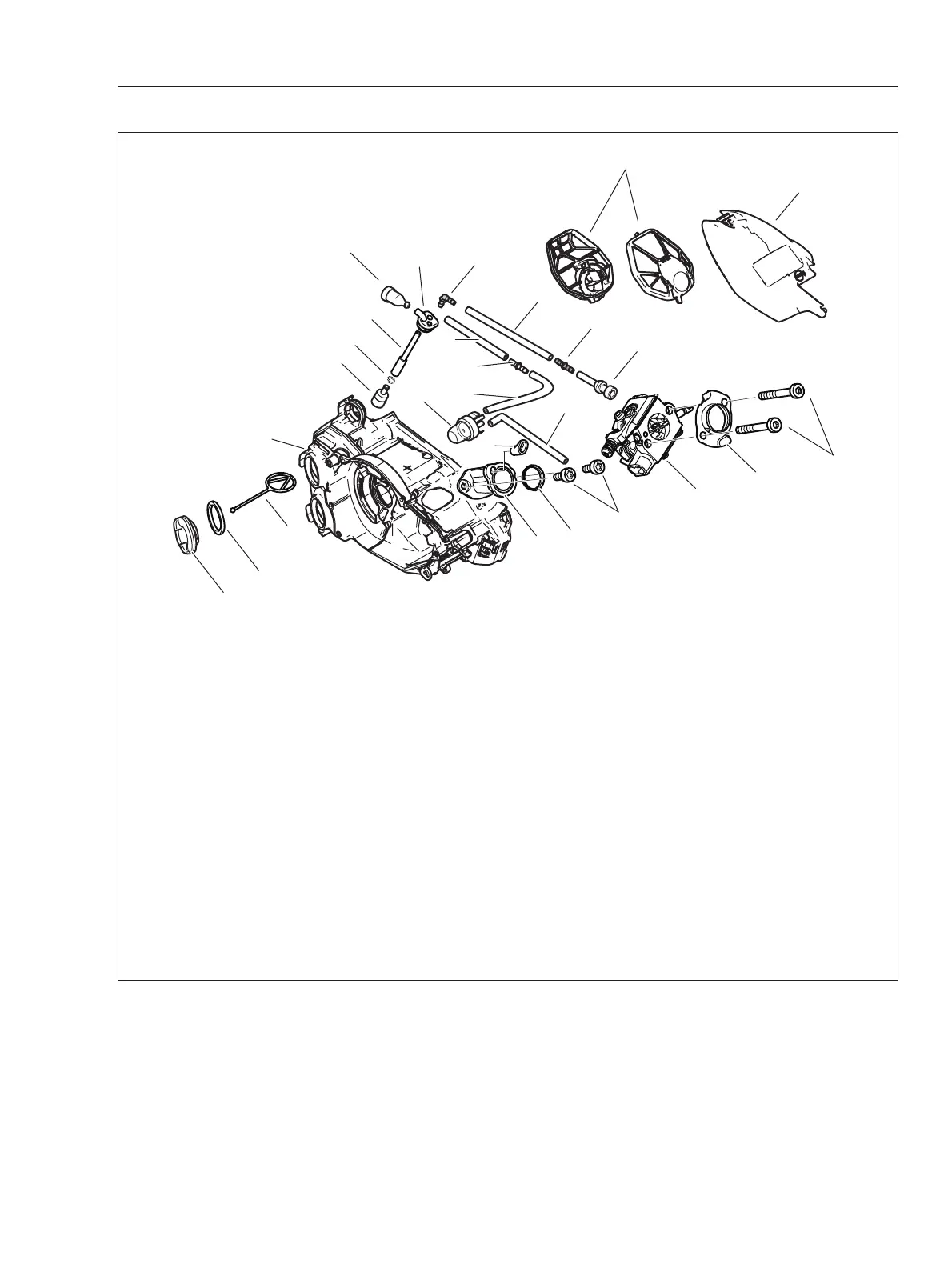

4 FUEL SYSTEM
(D)
(E)
(M)
(H)
(K1)
(W)
(C)
(B)
(L)
(A)
(J)
(G)
(K2)
(N)
(K3)
(R2)
(S)
(R1)
(Q)
(P)
(F)
(T)
(U)
(X)
(Y)
(Z)
(V)
(A) Air cleaner cover
(B) Air lter
(C) Fuel cap
(D) Gasket
(E) Connector
(F) Fuel tank
(G) Fuel tank vent
(H) Fuel strainer
(J) Clip
(K1)Fuel line (in fuel tank)
(K2)Fuel line (3x5x95mm)
(K3)Fuel line
(L) Grommet
(M) Joint (L-shaped, black)
(N) Joint (black)
(P) Purge line (L-shaped)
(Q) Purge bulb
(R1)Fuel return line (3x5x58mm)
(R2)Fuel return line (3x5x115mm)
(S) Joint (white)
(T) Intake bellows
(U) Collar
(V) Collar
(W) Bolt (M4)
(X) Carburetor
(Y) Carburetor elbow
(Z) Bolt (M5)
