IGNITION SYSTEM
22
CS-2511WES
251Ws

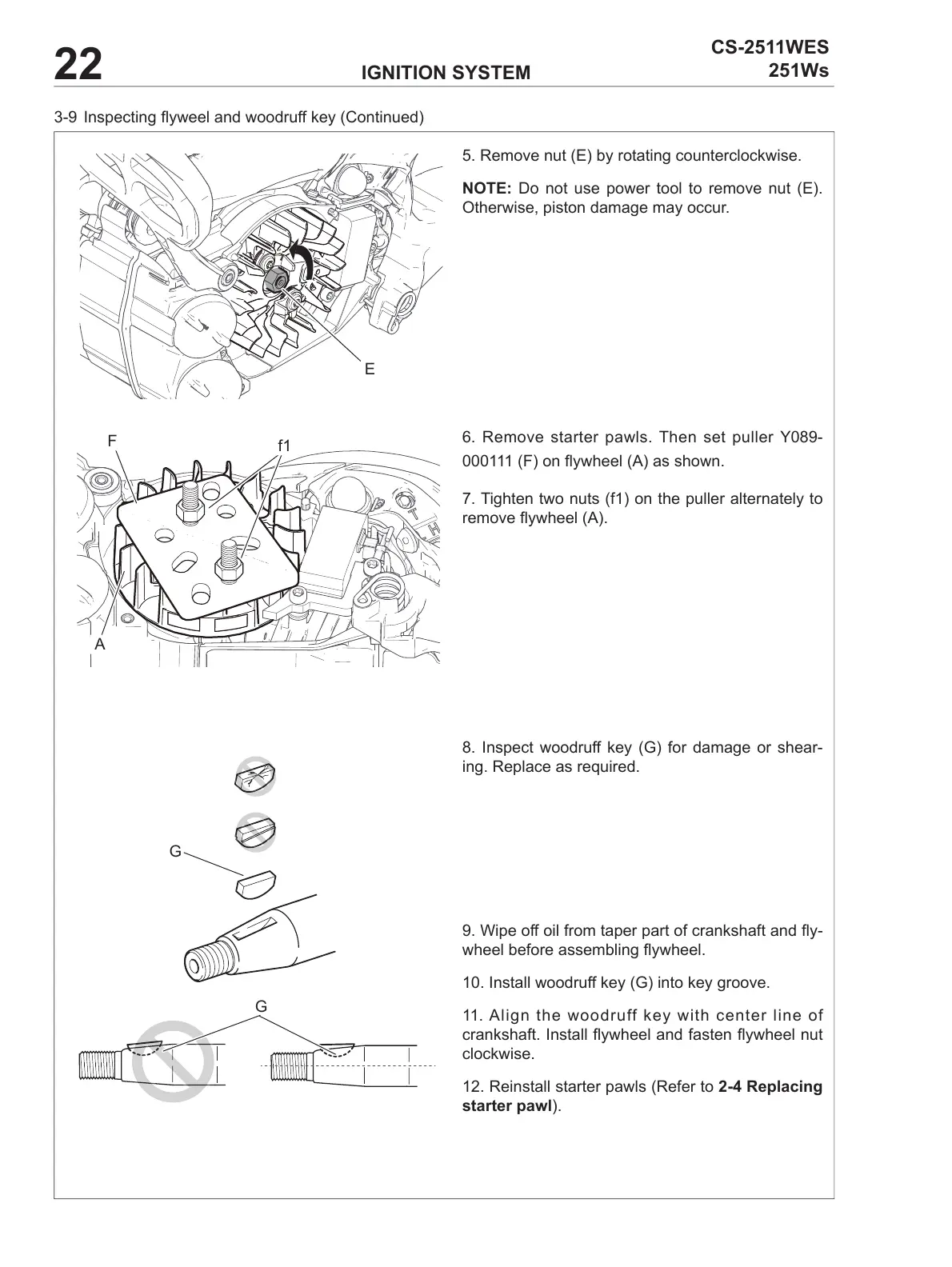

3-9 Inspecting yweel and woodruff key (Continued)
5. Remove nut (E) by rotating counterclockwise.
NOTE: Do not use power tool to remove nut (E).
Otherwise, piston damage may occur.
6. Remove starter pawls. Then set puller Y089-
000111
(F) on ywheel (A) as shown.
7. Tighten two nuts (f1) on the puller alternately to
remove ywheel (A).
8. Inspect woodruff key (G) for damage or shear-
ing. Replace as required.
9. Wipe off oil from taper part of crankshaft and y-
wheel before assembling ywheel.
10. Install woodruff key (G) into key groove.
11. A l i g n t h e w o o d r u f f k e y w i t h c e n t e r l i n e o f
crankshaft. Install ywheel and fasten ywheel nut
clockwise.
12. Reinstall starter pawls (Refer to 2-4 Replacing
starter pawl).
G
G
E
F
A
f1
