HANDLE AND CONTROL SYSTEM
70
CS-2511WES
251Ws

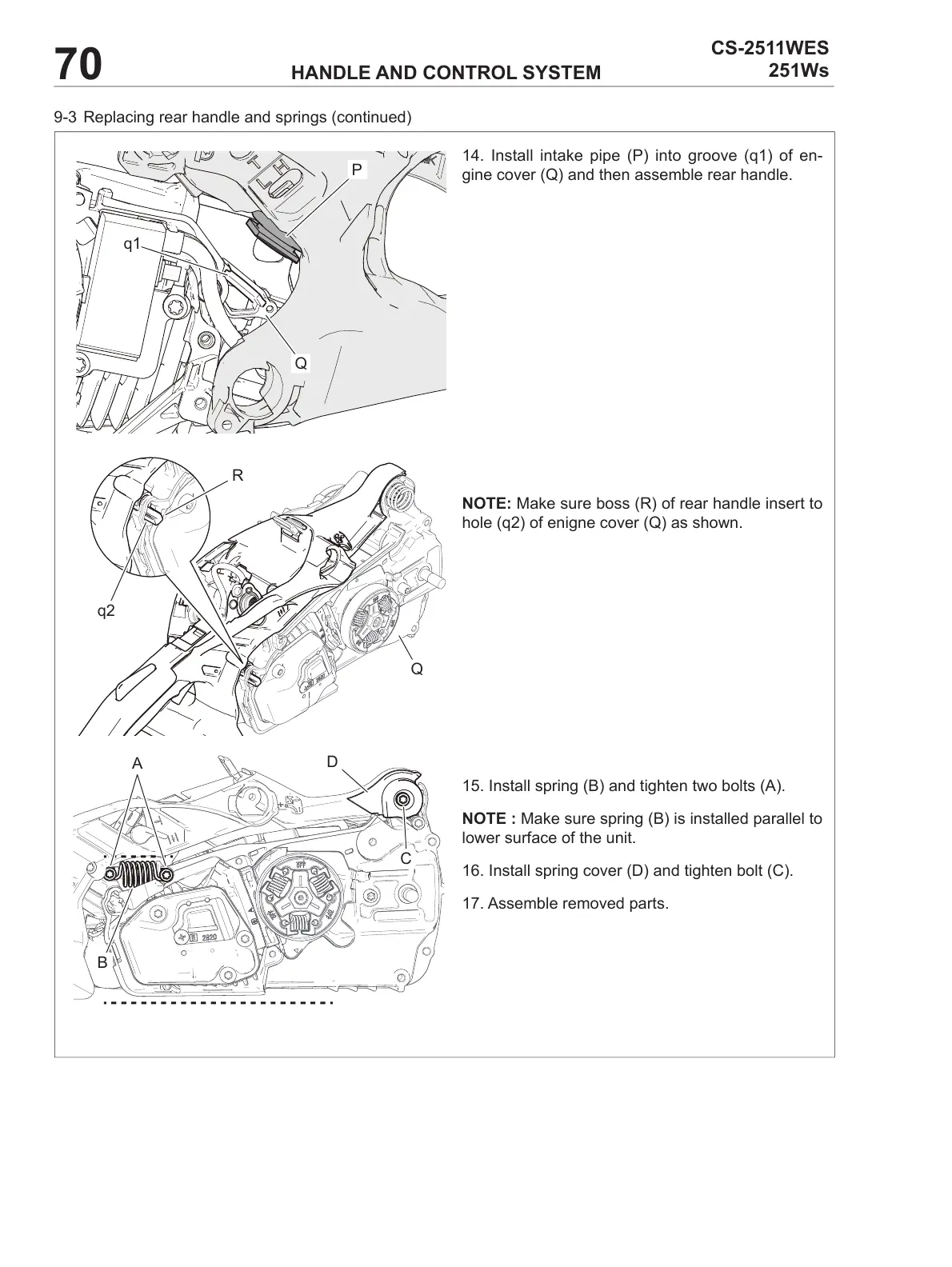

9-3 Replacing rear handle and springs (continued)
14. Install intake pipe (P) into groove (q1) of en-
gine cover (Q) and then assemble rear handle.
NOTE: Make sure boss (R) of rear handle insert to
hole (q2) of enigne cover (Q) as shown.
15. Install spring (B) and tighten two bolts (A).
NOTE : Make sure spring (B) is installed parallel to
lower surface of the unit.
16. Install spring cover (D) and tighten bolt (C).
17. Assemble removed parts.
P
Q
q1
R
q2
Q
B
A
D
C
