CLUTCH SYSTEM
40
CS-2511WES
251Ws

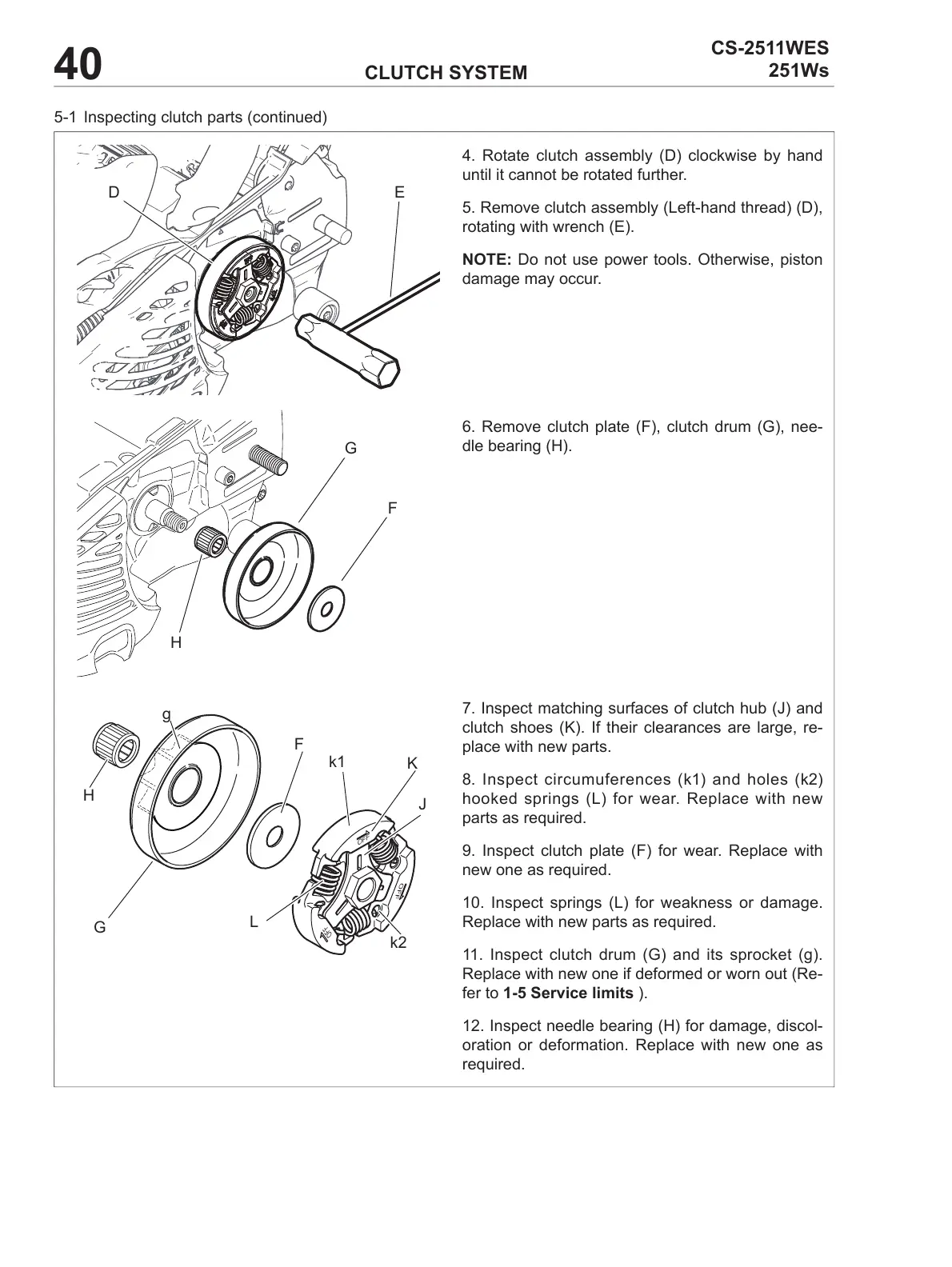

5-1 Inspecting clutch parts (continued)
4. Rotate clutch assembly (D) clockwise by hand
until it cannot be rotated further.
5. Remove clutch assembly (Left-hand thread) (D),
rotating with wrench (E).
NOTE: Do not use power tools. Otherwise, piston
damage may occur.
6. Remove clutch plate (F), clutch drum (G), nee-
dle bearing (H).
7. Inspect matching surfaces of clutch hub (J) and
clutch shoes (K). If their clearances are large, re-
place with new parts.
8. Inspect circumuferences (k1) and holes (k2)
hooked springs (L) for wear. Replace with new
parts as required.
9. Inspect clutch plate (F) for wear. Replace with
new one as required.
10. Inspect springs (L) for weakness or damage.
Replace with new parts as required.
11. Inspect clutch drum (G) and its sprocket (g).
Replace with new one if deformed or worn out (Re-
fer to 1-5Servicelimits ).
12. Inspect needle bearing (H) for damage, discol-
oration or deformation. Replace with new one as
required.
OFF
OFF
OFF
J
K
k1
k2
L
F
g
H
D
E
H
G
F
G
To Next Page
