SAW CHAIN LUBRICATION SYSTEM
52
CS-2511WES
251Ws
7-5 Cleaning and replacing auto-oiler assembly (continued)

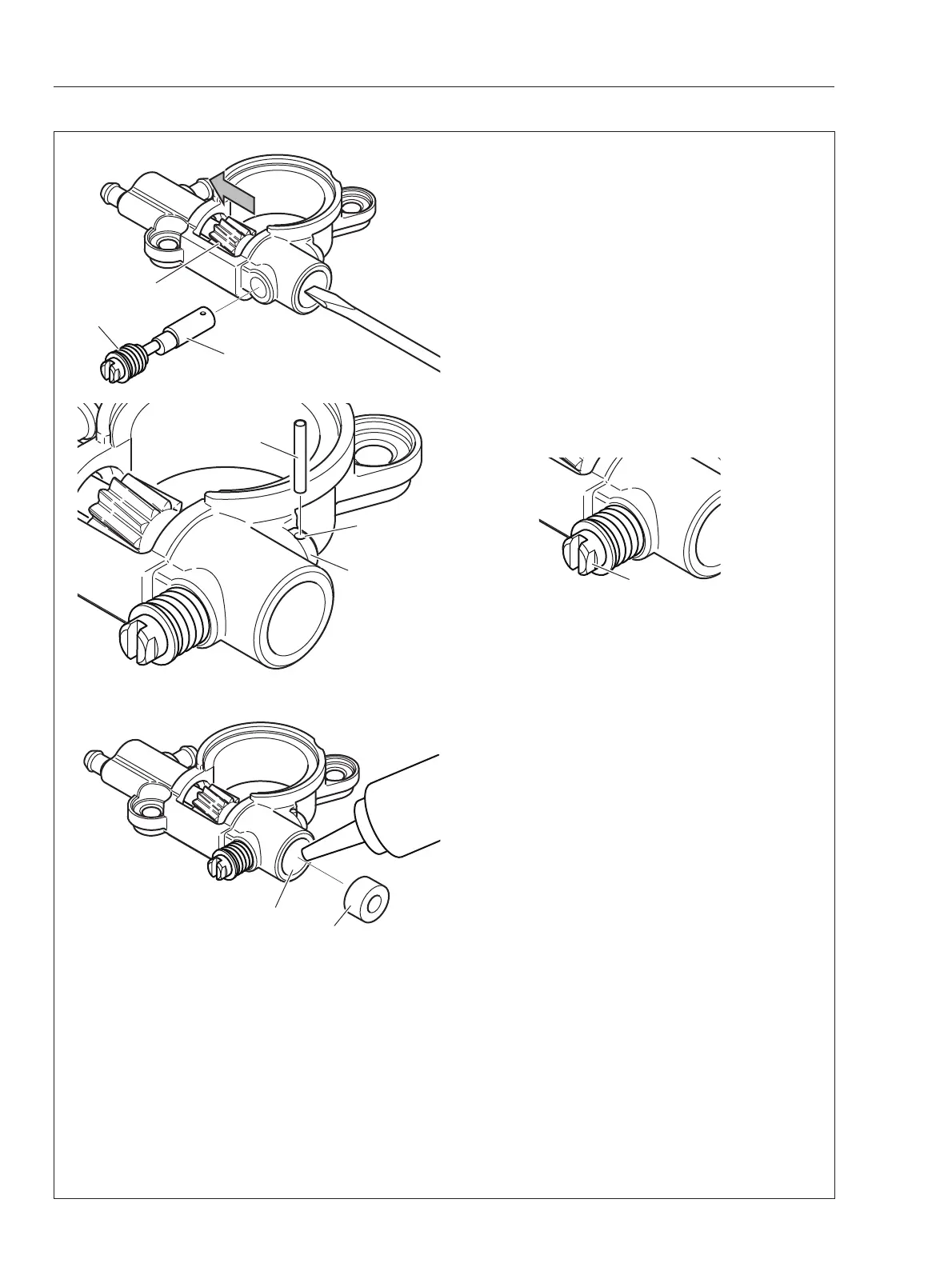

26. Push in plunger gear (E) with small screw-
driver, and hold plunger gear (E) to direction of
arrow with nger. Remove screwdriver.
27. Install adjuster needle (K) with spring (L) into
oiler body. Release nger from plunger gear (E).
28. Press adjuster needle (K) to the bottom, orient-
ing the flat surface (k1) as shown. This position
indicates maximum discharge volume of chain oil.
29. Tap new spring pin (J) into hole (k2) of adjuster
needle (K).
30. Apply grease in plunger hole (U). Tap plug (P)
into hole (U) with plastic mallet until plug (P) is
ush with end face of oiler body.
31. Reinstall auto-oiler assembly (Refer to step 3
and 4).
32. Reassemble removed parts.
E
K
L
k1
K
J
k2
U
P
