STARTER SYSTEM
12
CS-2511WES
251Ws

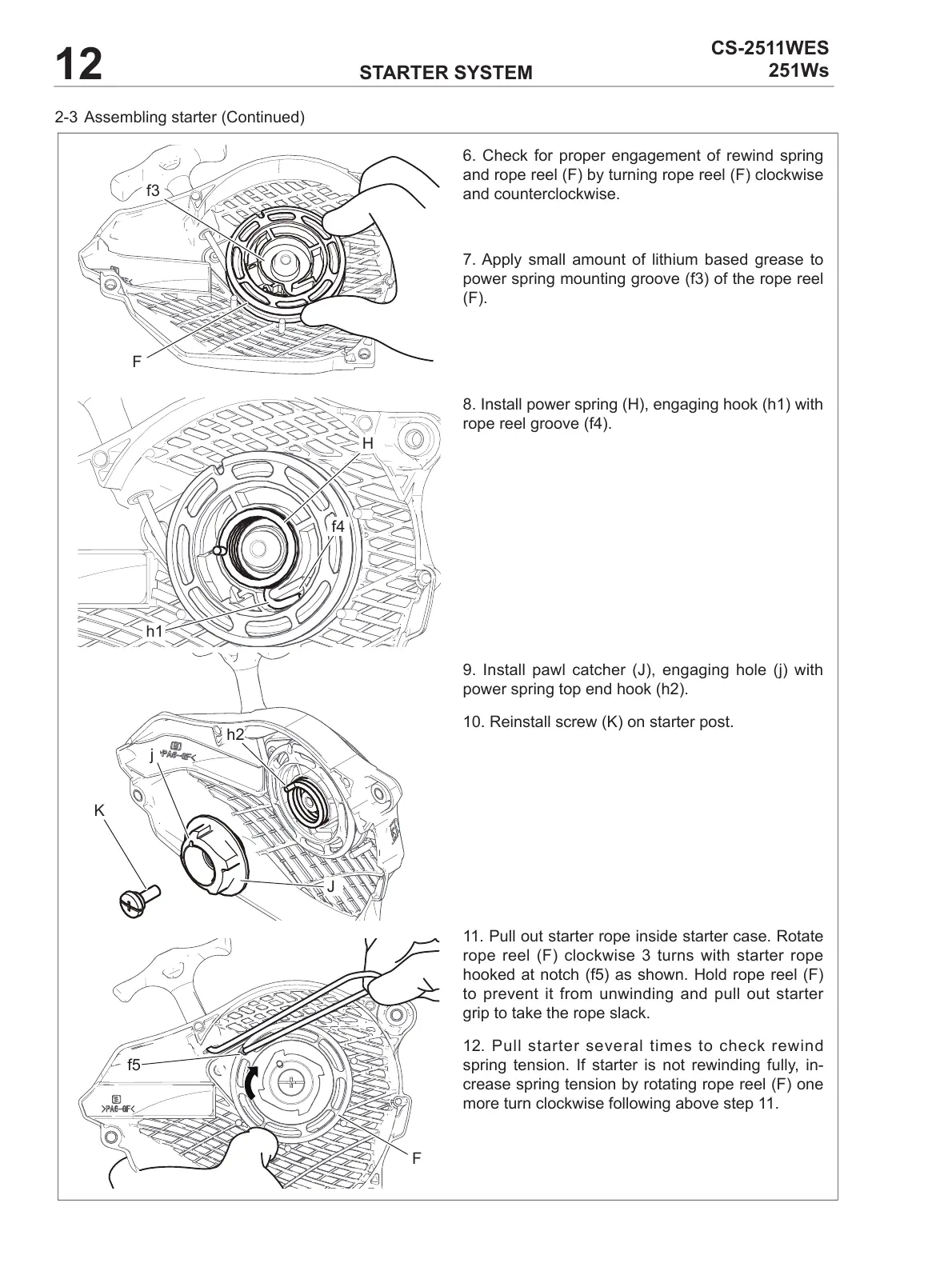

2-3 Assembling starter (Continued)
6. Check for proper engagement of rewind spring
and rope reel (F) by turning rope reel (F) clockwise
and counterclockwise.
7. Apply small amount of lithium based grease to
power spring mounting groove (f3) of the rope reel
(F).
8. Install power spring (H), engaging hook (h1) with
rope reel groove (f4).
9. Install pawl catcher (J), engaging hole (j) with
power spring top end hook (h2).
10. Reinstall screw (K) on starter post.
11. Pull out starter rope inside starter case. Rotate
rope reel (F) clockwise 3 turns with starter rope
hooked at notch (f5) as shown. Hold rope reel (F)
to prevent it from unwinding and pull out starter
grip to take the rope slack.
12. Pull starter several times to check rewind
spring tension. If starter is not rewinding fully, in-
crease spring tension by rotating rope reel (F) one
more turn clockwise following above step 11.
j
h2
f5
F
f3
F
H
h1
f4
K
J
To Next Page
