Echo CS-2511WES

CHAIN BRAKE SYSTEM
43
CS-2511WES
251Ws

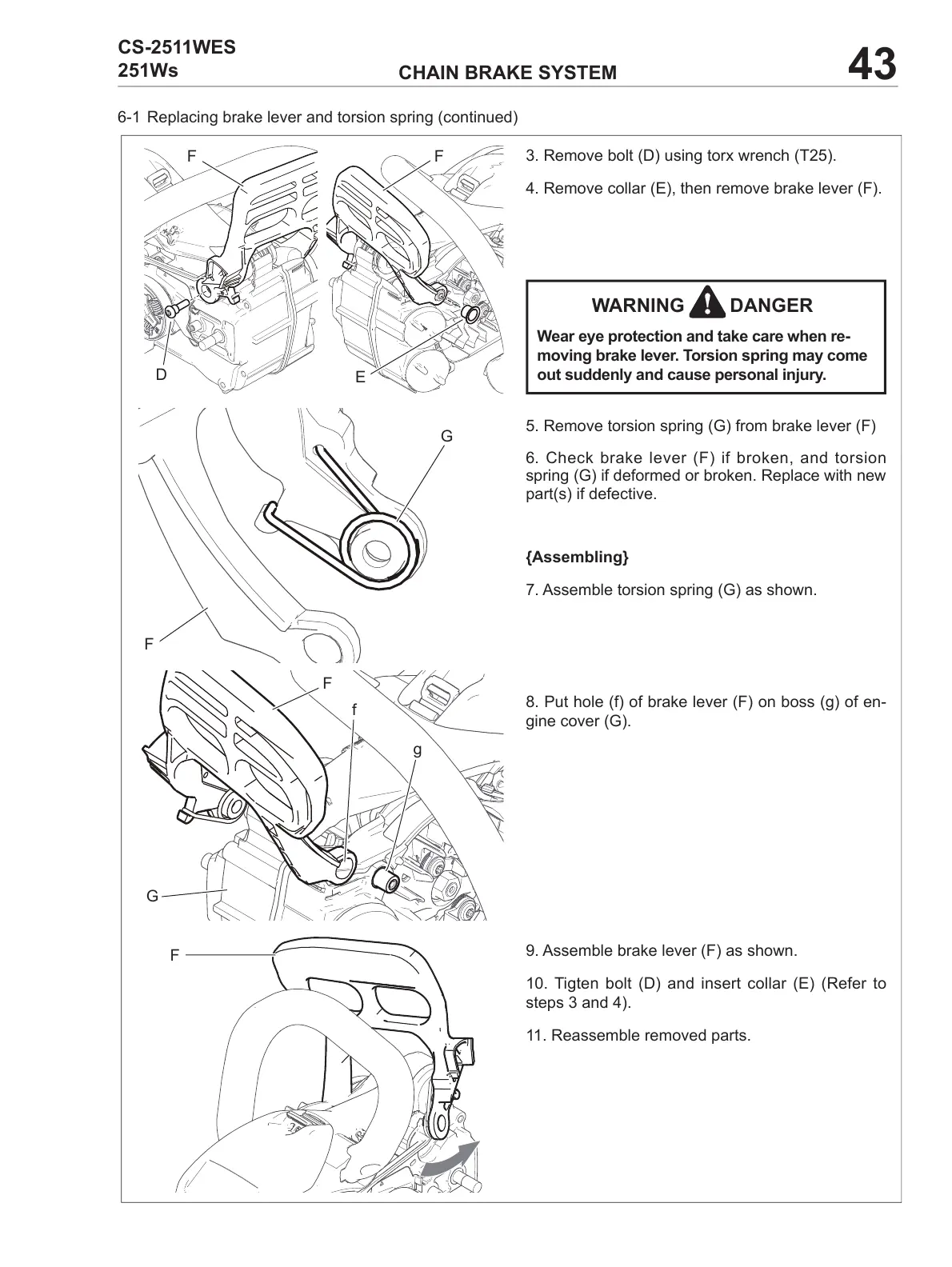

6-1 Replacing brake lever and torsion spring (continued)
3. Remove bolt (D) using torx wrench (T25).
4. Remove collar (E), then remove brake lever (F).
WARNING DANGER
Weareyeprotectionandtakecarewhenre-
movingbrakelever.Torsionspringmaycome
outsuddenlyandcausepersonalinjury.
5. Remove torsion spring (G) from brake lever (F)
6. Check brake lever (F) if broken, and torsion
spring (G) if deformed or broken. Replace with new
part(s) if defective.
{Assembling}
7. Assemble torsion spring (G) as shown.
8. Put hole (f) of brake lever (F) on boss (g) of en-
gine cover (G).
9. Assemble brake lever (F) as shown.
10. Tigten bolt (D) and insert collar (E) (Refer to
steps 3 and 4).
11. Reassemble removed parts.
E
D
F F
F
G
f
g
F
G
F
