System Design of UA 300 D
1
E 2007 − ECKELMANN | BERLINER STRASSE 161 | 65205 WIESBADEN | FON +49(0)611 7103-0 | FAX 49(0)611 7103-133 | eckelmann.de
Version 2.03 27. Juni 2008

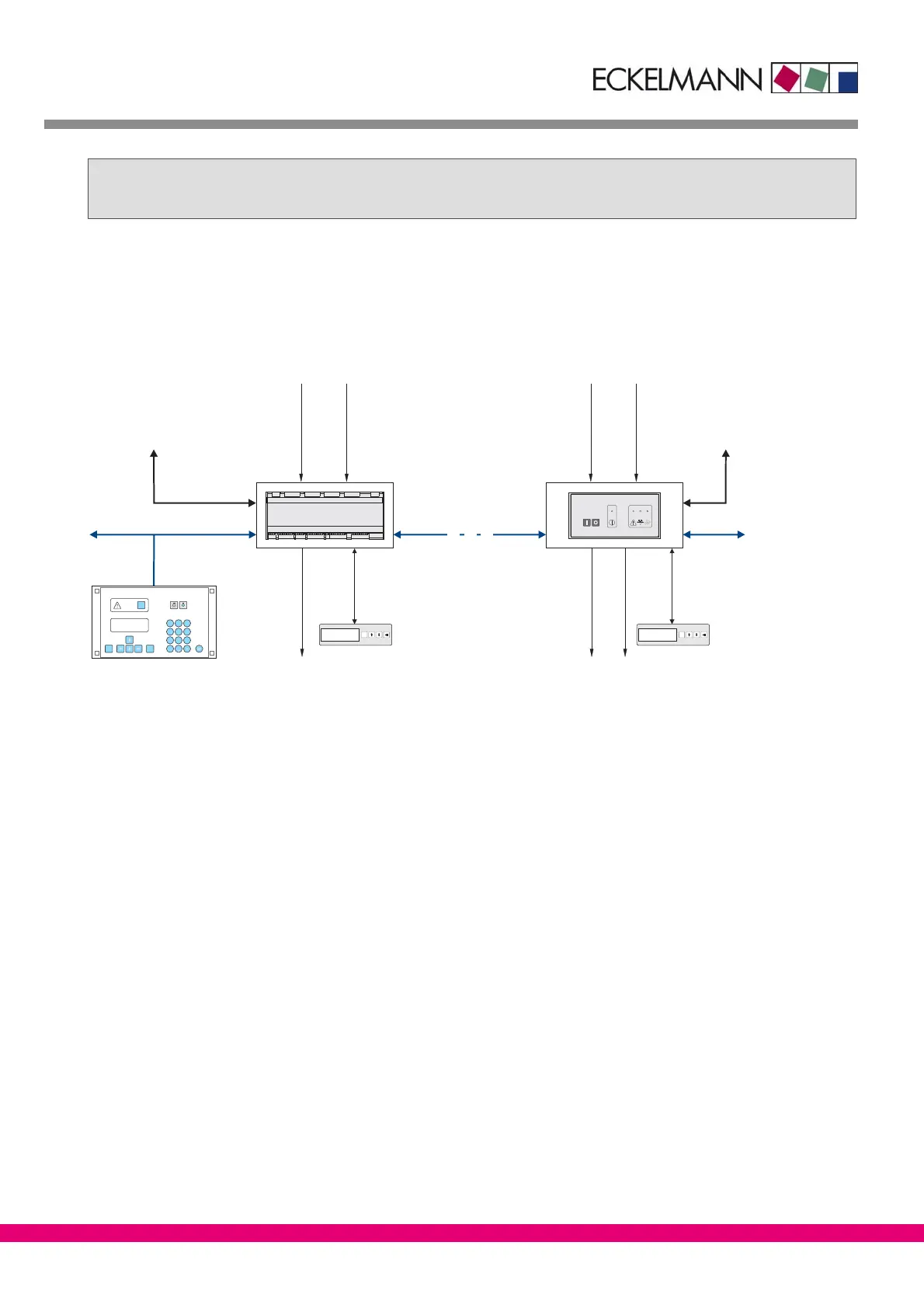

1 System Design of UA 300 D
The UA 300 D Case Controller is a component of the new LDS System. It is based on the hardware of the
UA300 Case Controller and has been designed for application in discount stores. The controller is a package unit
without optional expansion modules. A BT 300 x Operator Interface can be connected to the controller when re-
quired. Electrical connections are described in Section Pin and Terminal Assignments of UA 300 D.
TTY
CAN Bus
CI 320
E•LDS
new
ZNR. 51203 69 030 E2
Digital outputs:
4 x normal open contact
3 x two-way-contacts
2x24VDC/50mA
3 x digital inputs
230 V AC
10 x analog inputs:
2-wire-NTC-
temperaturs sensors
UA 300 D CC
UA 300 D CS
1..99UA300Dxy
Case Controllers
CAN Bus address: 1..99
(0..1)
BT 300
ESC
RESET
Digital outputs:
4 x normal open contact
3 x two-way-contacts
2x24VDC/50mA
(0..1)
BT 300
ESC
RESET
3 x digital inputs
230 V AC
10 x analog inputs:
2-wire-NTC-
temperaturs sensors
1 x switch for
possible external circuit
CAN Bus
UA 300 D x - DIN rail mountingC UA 300 D x - panel mountingS
TTY
CI 320
CI 3000 / AL 300
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
Interfaces:
CAN bus: Communication within the LDS System, UA 300 D Cx/Ax only
Display: Connection for BT 300 x Operator Interface
TTY: Communication with LDSWin PC software
Digital inputs/outputs:
3 x digital inputs 230 V, floating
7 x relay outputs 230 V / 6 A / (4 N.O., 3 changeover)
2 x transistor outputs 24 V DC / 50 mA
1 x universal switching contact to control external devices (UA 300 D xS only)
Analog inputs:
10 x analog inputs Connection for two−wire NTC temperature sensors
Real−time clock: Battery−backed (lithium cell), UA 300 D Tx/ Ax only (stand−alone operation)
