Menu structure UA 300 D Controller type UA 111 XP
64
Version 2.03 27. Juni 2008
7.2 Controller type UA 111 XP − Menu tree

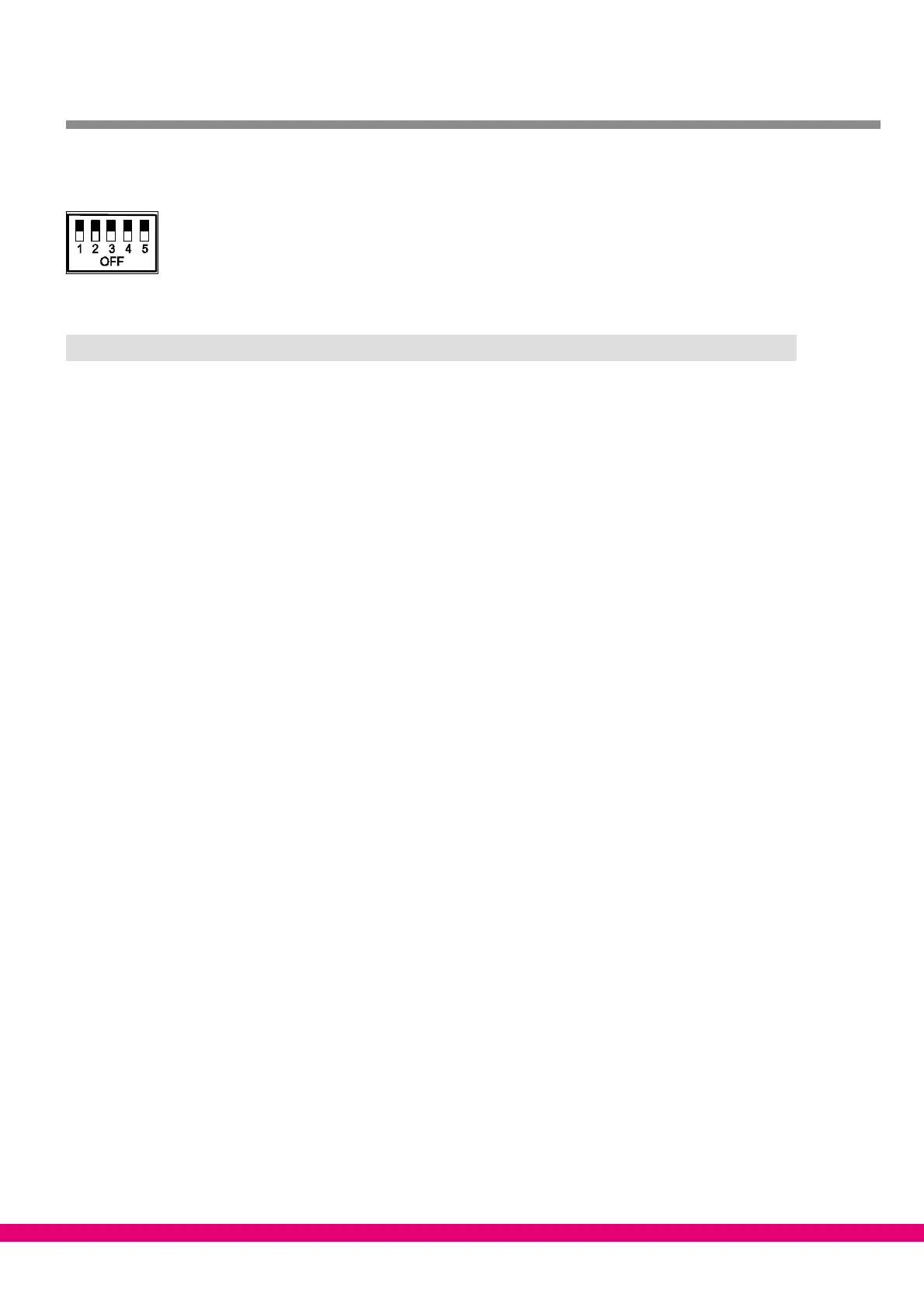

1: ON
2: OFF
3: OFF
4: OFF
5: OFF
Level 1 Level 2 Level 3 Screen No. Screen Name
Main menu REFR: PT.
Actual Values 1 ACT VALUES
Temp. Sensor 1−1 TEMPERATUR
Cooling Zone 1 1−2 COOLING 1
Defrost Zone 1 1−3 DEFROST 1
−− Not used with this controller type
Alarm 1−5 ALARM
Compressor 1−6 COMPRESSOR
Cooling Zone 2 1−7 COOLING 2
Defrost Zone 2 1−8 DEFROST 2
Setpoints 2 SETPOINTS
Cooling 2−1 COOLING
Zone 1 2−1−1 COOLING 1
Zone 2 2−1−2 COOLING 2
Zone 1A Altern. 2−1−3 COOLING 1A
Zone 2A Altern. 2−1−4 COOLING 2A
Defrost 2−2 DEFROST
Zone 1 2−2−1 DEFROST 1
Zone 2 2−2−2 DEFROST 2
Zone 1A Altern. 2−2−3 DEFROST 1A
Zone 2A Altern. 2−2−4 DEFROST 2A
−−− Not used with this controller type
Alarm 2−4 ALARM
Zone 1 2−4−1 ALARM 1
Zone 2 2−4−2 ALARM 2
Zone 1A Altern. 2−4−3 ALARM 1A
Zone 2A Altern. 2−4−4 ALARM 2A
Compressor 2−5 COMPRESSOR
Setpoints 2−5−1 COMPRESSOR
Setpoint toggle 2−5−2 Compr. alt.
