Version 2.02 15.05.2007
Operation of VS 3000
79
eckelmann.de
E 2007 - ECKELMANN AG | BERLINER STRASSE 161 | 65205 WIESBADEN | TELEFON +49(0)611 71 03-0 | FAX +49(0)611 71 03-133
The VS 3000 Pack Controller can be operated via the CAN bus interface with an AL 300 Operator Terminal or
CI 3000 Store Computer. No provision is made for operation on the VS 3000 Pack Controller itself except for
manual-automatic mode selection (see Section 6 Operating Modes).

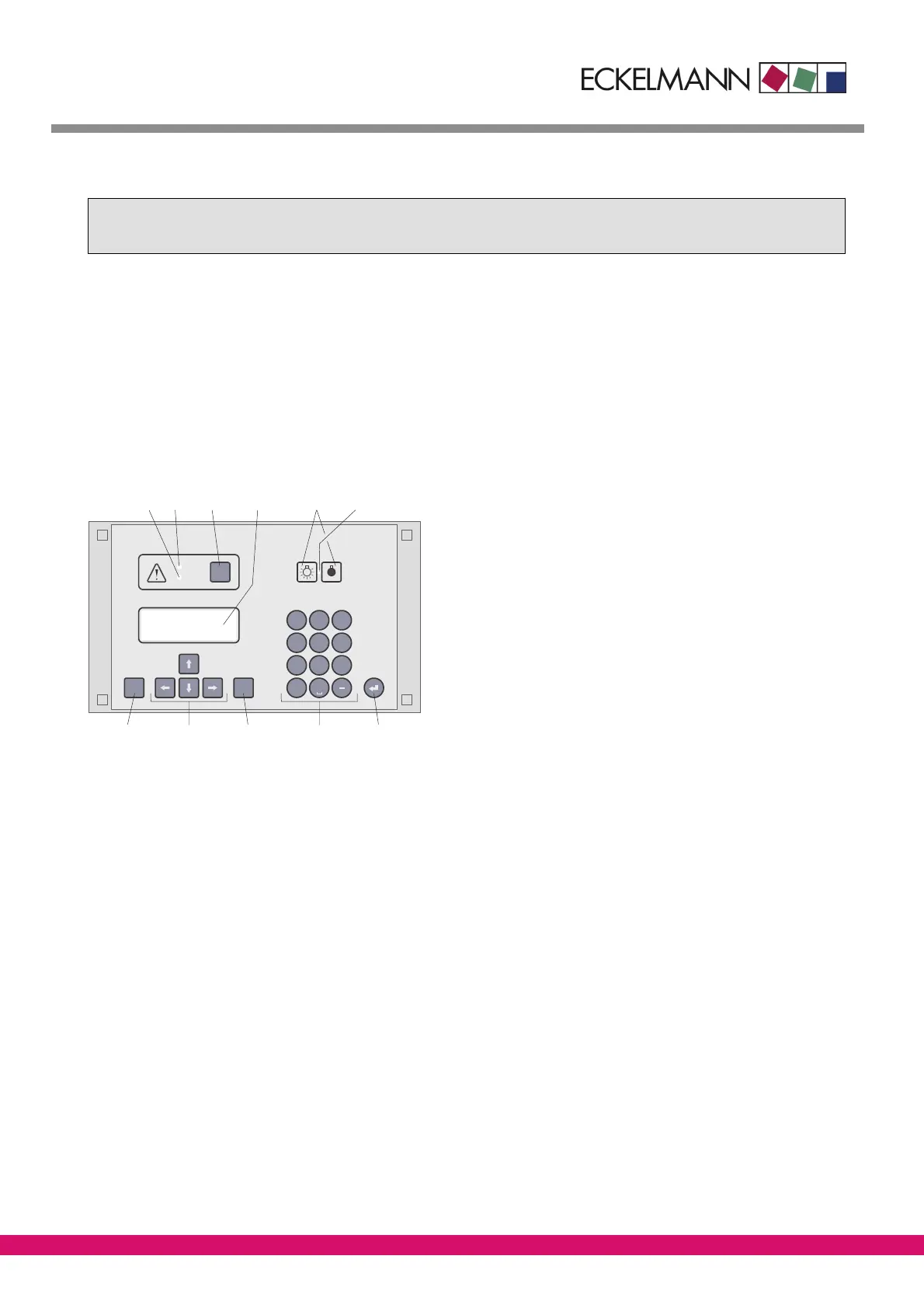

7.1 Operation with CI 3000 Store Computer or AL 300 Operator Terminal
Operation is the same whether using the CI 3000 Store Computer or the AL 300 Operator Terminal. The oper-
ator interface and the functions are the same on both devices.
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
(3)(1)(2) (5)(4)(11)
(6)
(10) (7)(9) (8)
ZNR. 35365 12 830
(1) Priority 1 alarm indicator light
(2) Priority 2 alarm indicator light
(3) Buzzer and horn stop key and alarm reset key
(4) External lighting on/off switch (general lighting)
(5) Lighting on/off switch indicator light
(6) ENTER key
(7) Alphanumeric keypad
(8) MODE key; CAPS SHIFT function for text entry
(9) Cursor keys
(10) ESC key
(11) Display (4 lines of 20 characters)
7 Operation of VS 3000
