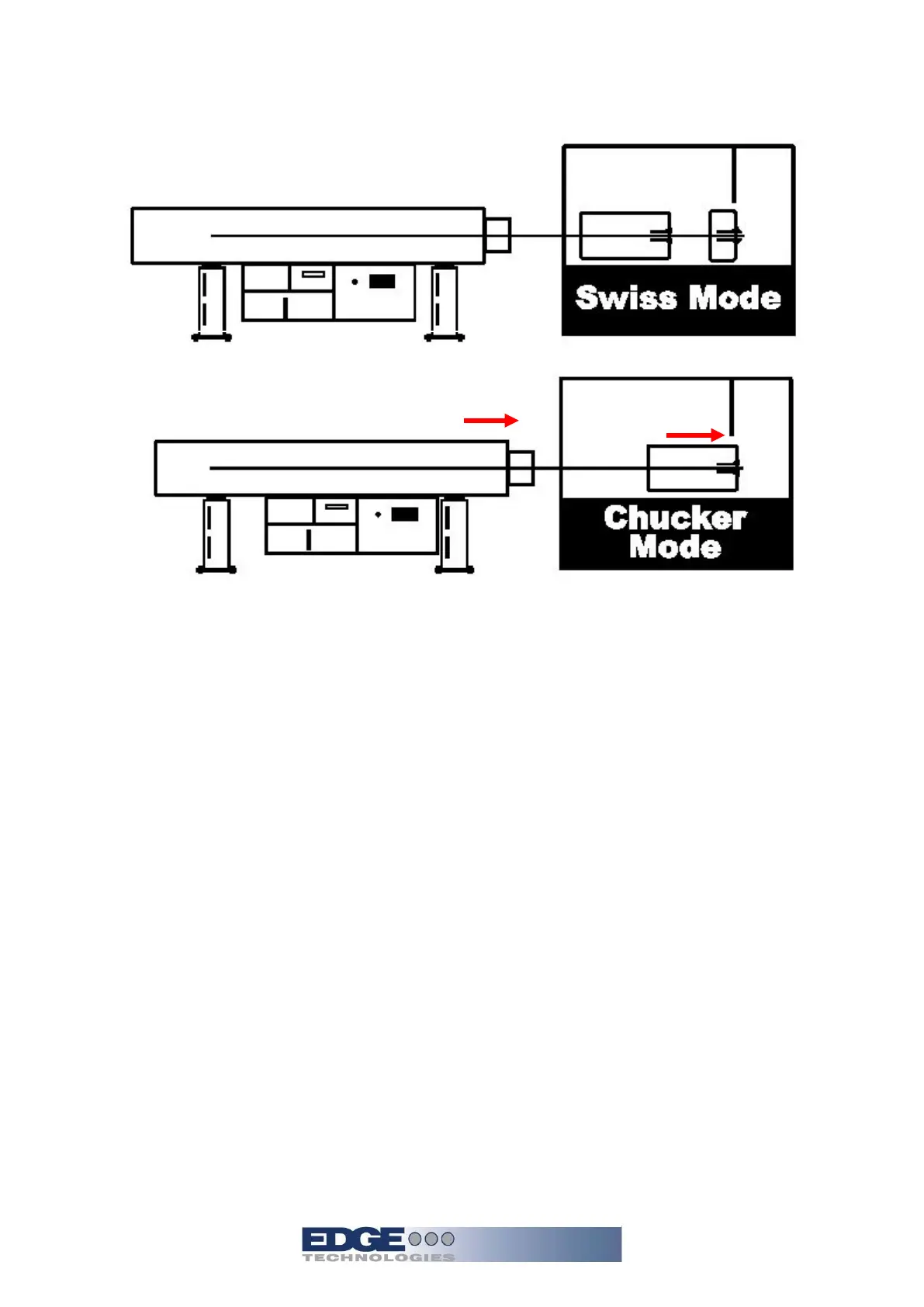

The graphic below represents the bar feeder movement and head stock movement during the
Swiss and Chucker change.
Bar feeder is anchored down to floor and
equipped with axial shift option
Bar feeder shifted into chucker position
Guide bushing removed
and headstock in chucker
position
Guide
Bushing
Headstock
