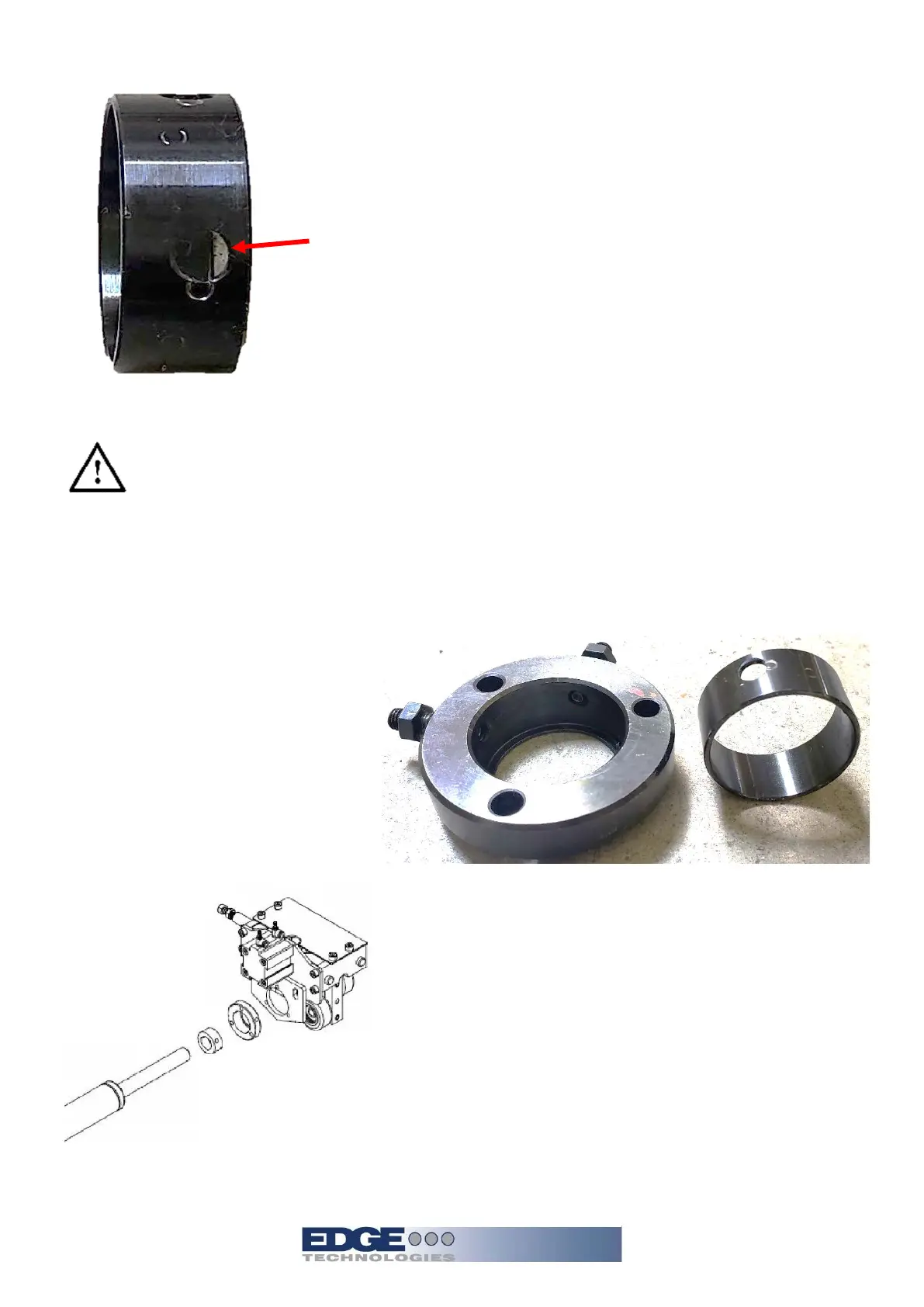

The bushing is directional, Note the offset of the retaining hole.
Warning machine damage may occur if telescoping nose is not
properly securred to lathe headstock.
Be sure the retaining ring and plate fit flush and completely inserted into the diameter of each.
The MAVD collet screws are offset
and must alinged with the
telescoping nose bushing when
used.
The 2 retaining screws must be tight
and locked with the locking nut. Not
doing so may cause telescoping
nose separating from the MAVD.
1. MAVD
2. Collet
3. Bushing, slipe on or screw retained
4. Telescoping nose
Note - Be sure all fasteners are tight and set with all
locking nuts. Meadium strength threadlock is highly
advisable on all fasteners.
Collet Bushing
3.
4.
