MINUTEMAN 320
57
REV 13.1:2020
When using small diameter bar stock the use of the MAVD and AVD are normally ill advised. The
telescoping nose will have aditional insert lengths to pass into the MAVD and/or AVD clamping
areas. The small insert on the MAVD side must not be cut. When the nose must be cut remove
the insert and trim the 3
rd
stage of the nose. Reinstall the small diamtere insert into the trimmed

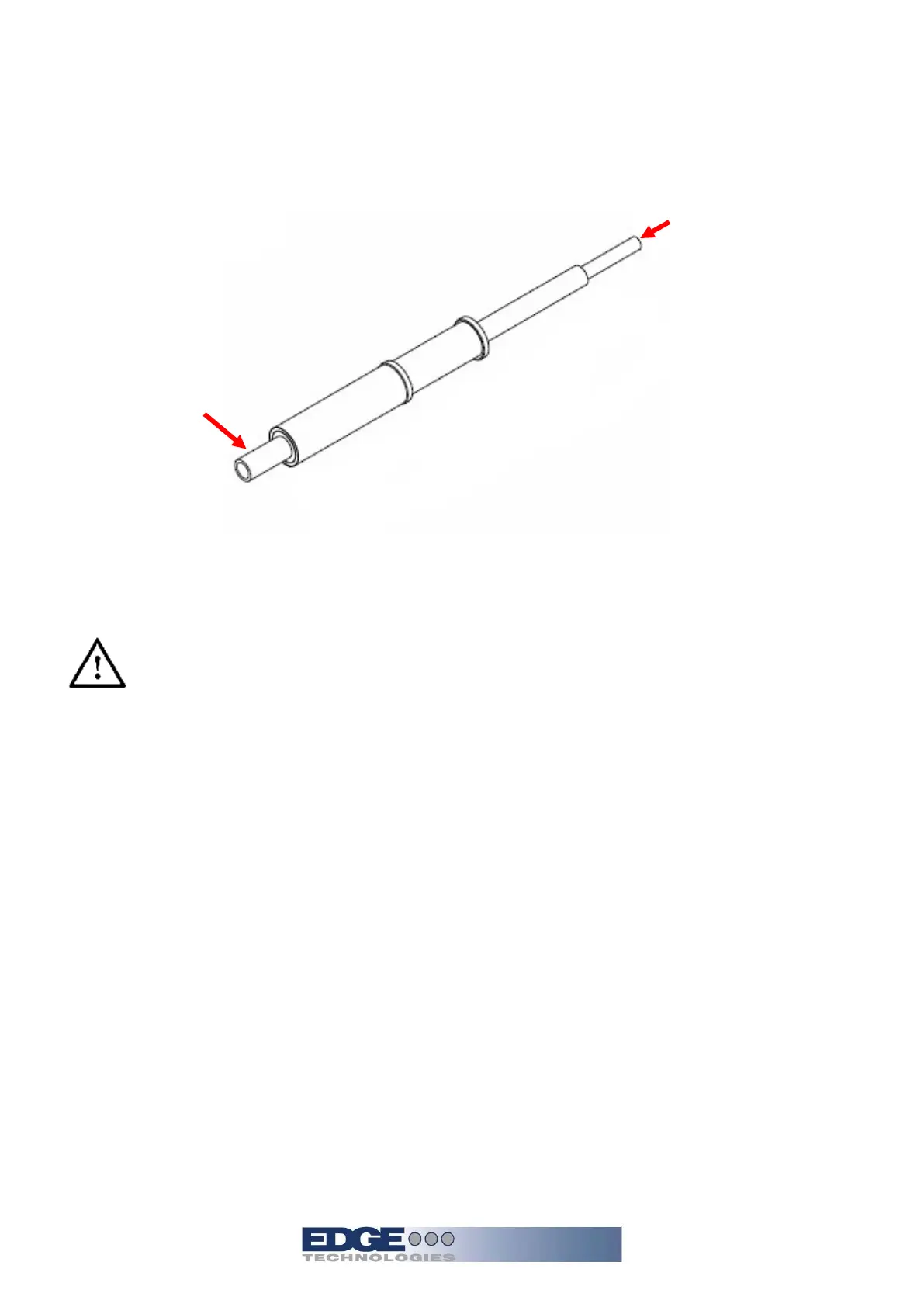

section. The 3 stage telescoping nose below is for an 8mm channel set.
This section of
the telescoping
nose will extend
into the AVD
clamping area.
This section of the
nose will extend into
the MAVD clamping
area.
Warning freshly cut telescoping nose shafts can be sharpe. Corner
break all surfaces prior to installing.
