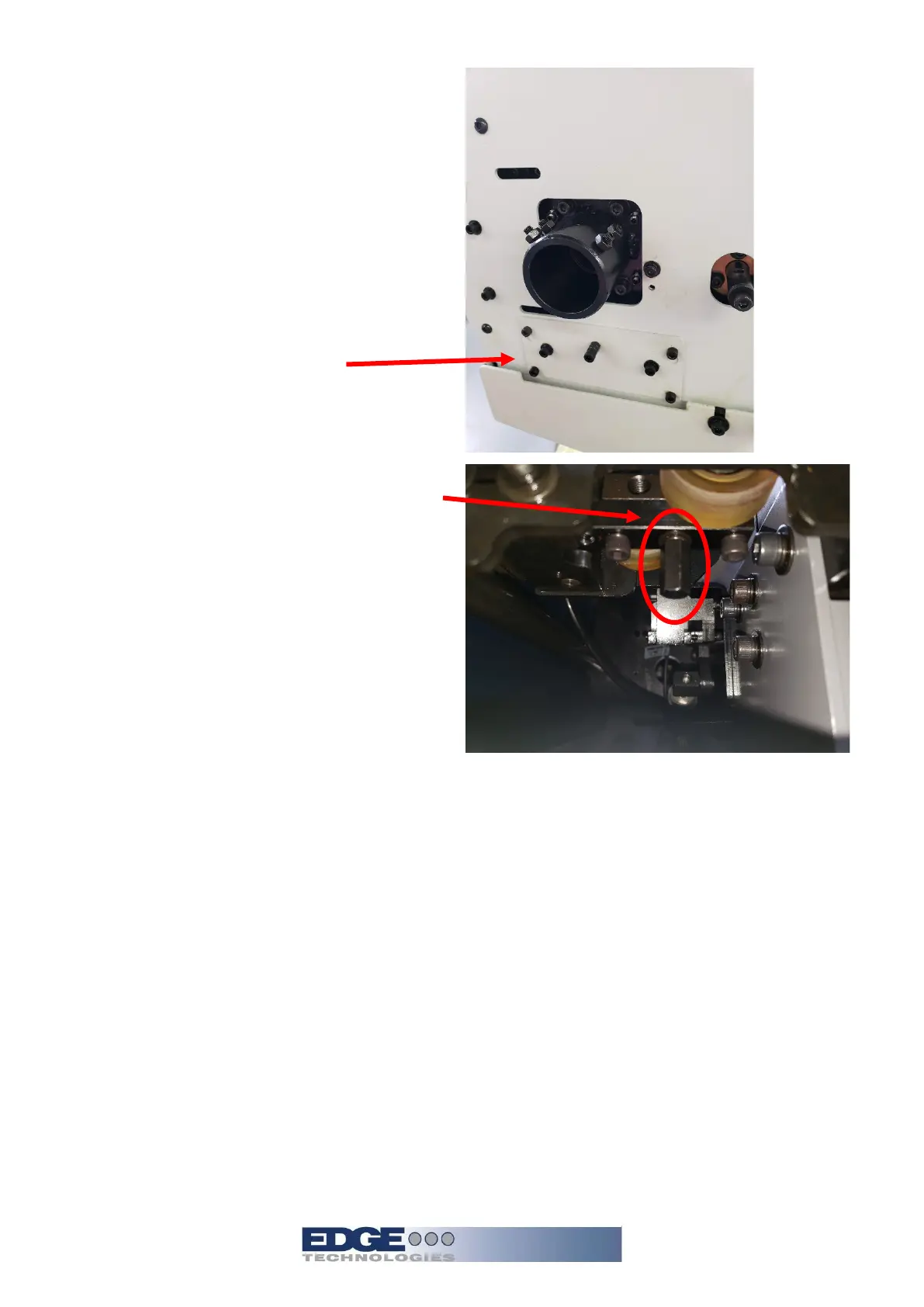

7. Remove AVD access plate
8. Once cover is removed, locate the long
10mm hex screw. Remove this screw,
pull the roller block up to clear the
SHCS alingment screws.
Do not remove the SHCS alingment screws.
9. Remove both roller sets from the AVD
10. Insert the bushing blocks into the AVD. The bushing block contains a retaining pin that
will slide into the center hole. The blocks are held in place by the interferance of each
one.
11. Reinstall the AVD acccess plate and cover plate.
12. Close the bar feeder hood.
13. Reset the bar feeder and lathe emergency stop switches.
