- AB620A5035

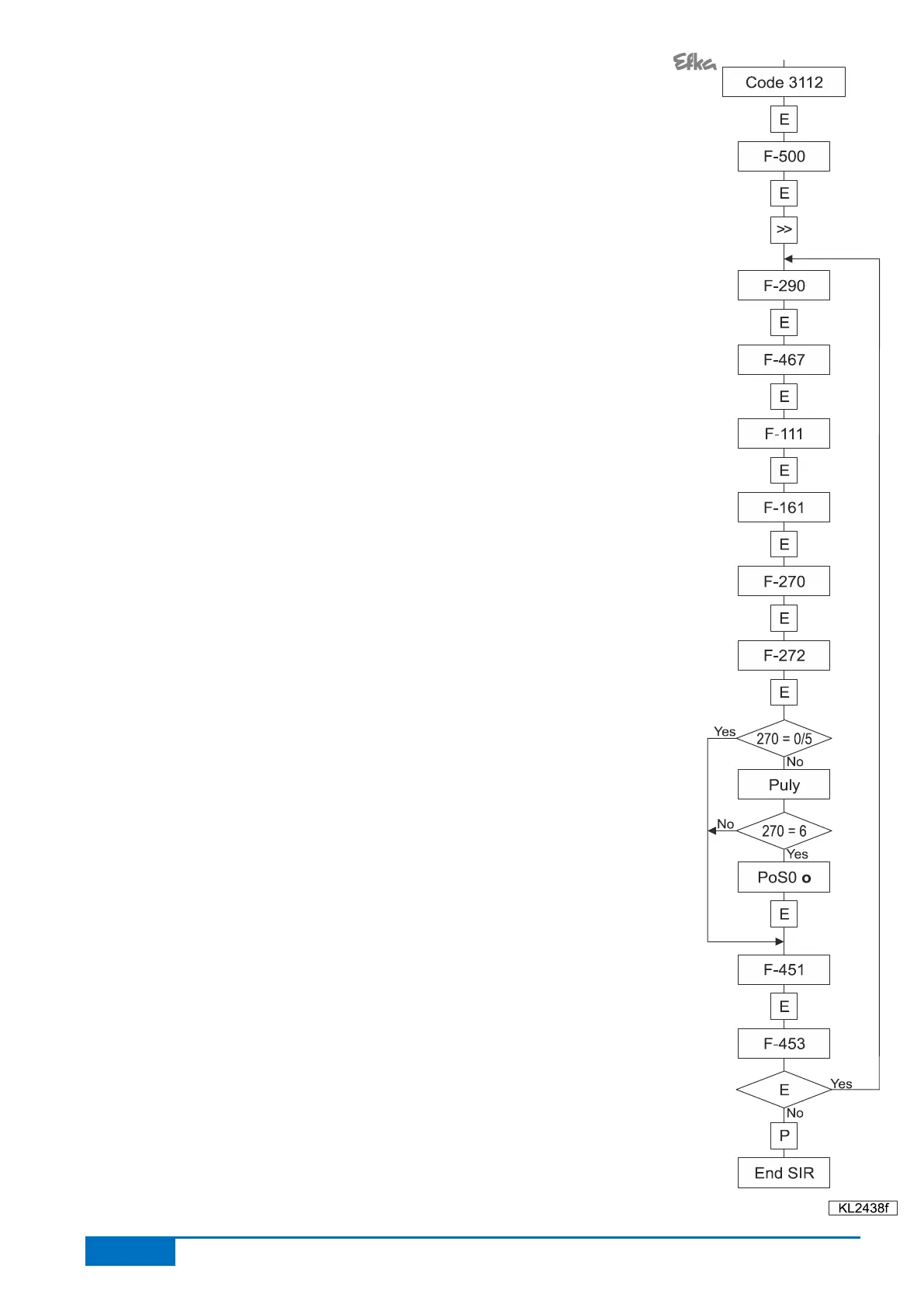

Input of the code number for the fitting level.
Parameter 500 is displayed.
Parameter 290 for functional sequence of the cutting procedures.
Parameter 467 for selection of motor.
Parameter 111 for the maximum speed.
Parameter 161 for direction of motor rotation.
Parameter 270 for type of position sensor.
Parameter 272 for transmission ratio.
Important! The transmission ratio should be determined and
indicated as precisely as possible.
If parameter 270 =0 or 5, continue with input of 451.
Check the transmission ratio.
Move pedal forwards. Let the drive run until ready (rdy) is displayed.
Press pedal to position 0. The check is complete.
if parameter 270 = 6, set the reference position.
Turn hand wheel until symbol o display goes off.
Set reference position (e.g. height of the stitch plate, lower dead point).
Parameter 451 for position 1.
Parameter 453 for position 2.
To repeat the cycle from parameter 290, push button E.
Or end with button P (2x).
The values can be varied by pressing key +/-.
The input of the code number is described in the general operating manual!
