- AB620A5035 Instruction Manual
- 59 -

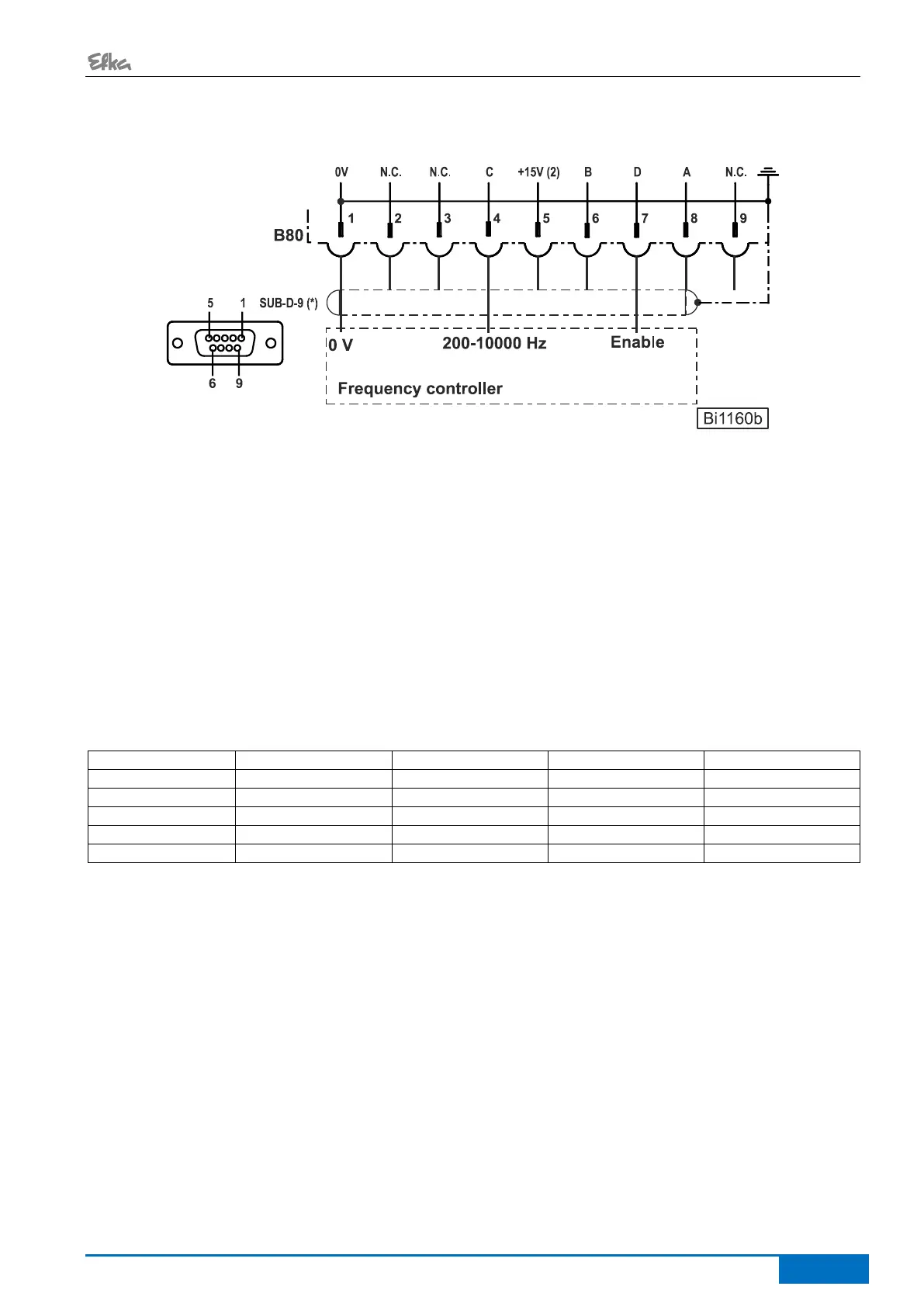

Connection for frequency run
Connections: 0 V on Pin 1
Frequency output on Pin 4
Frequency controller output on Pin 7
In order to introduce motor running 0V must be applied to pin 7
Frequency rates: 0-5 V / 200-10000 Hz
Min. speed 50 min
−1
Max. speed F-111
Parameter F-396 =0 Frequency Off
F-396 =1 Frequency On
Plug B80 input signal
Pin8 "A"
Pin6 "B"
Pin4 "C"
Pin5 "D"
Motor state
X
X
X
Deactivated.
Stop
X
X
Frequency < 60 Hz
Activated (0V)
Stop
X
X
Frequency > 60 Hz
Activated (0V)
Running
X
X
Frequency > 60 Hz
Deactivated.
Stop
0 V
0 V
X
Deactivated.
Trimmer
1) Nominal voltage +24 V, no-load voltage max. +30 V momentarily after power on
2) Nominal voltage +5 V, I
max
20 mA
*) View: Front view of the control (component side) and/or rear view of the outgoing connecting cable
