Efka AB620A5035 - Page 78

- AB620A5035 Instruction Manual
- 78 -

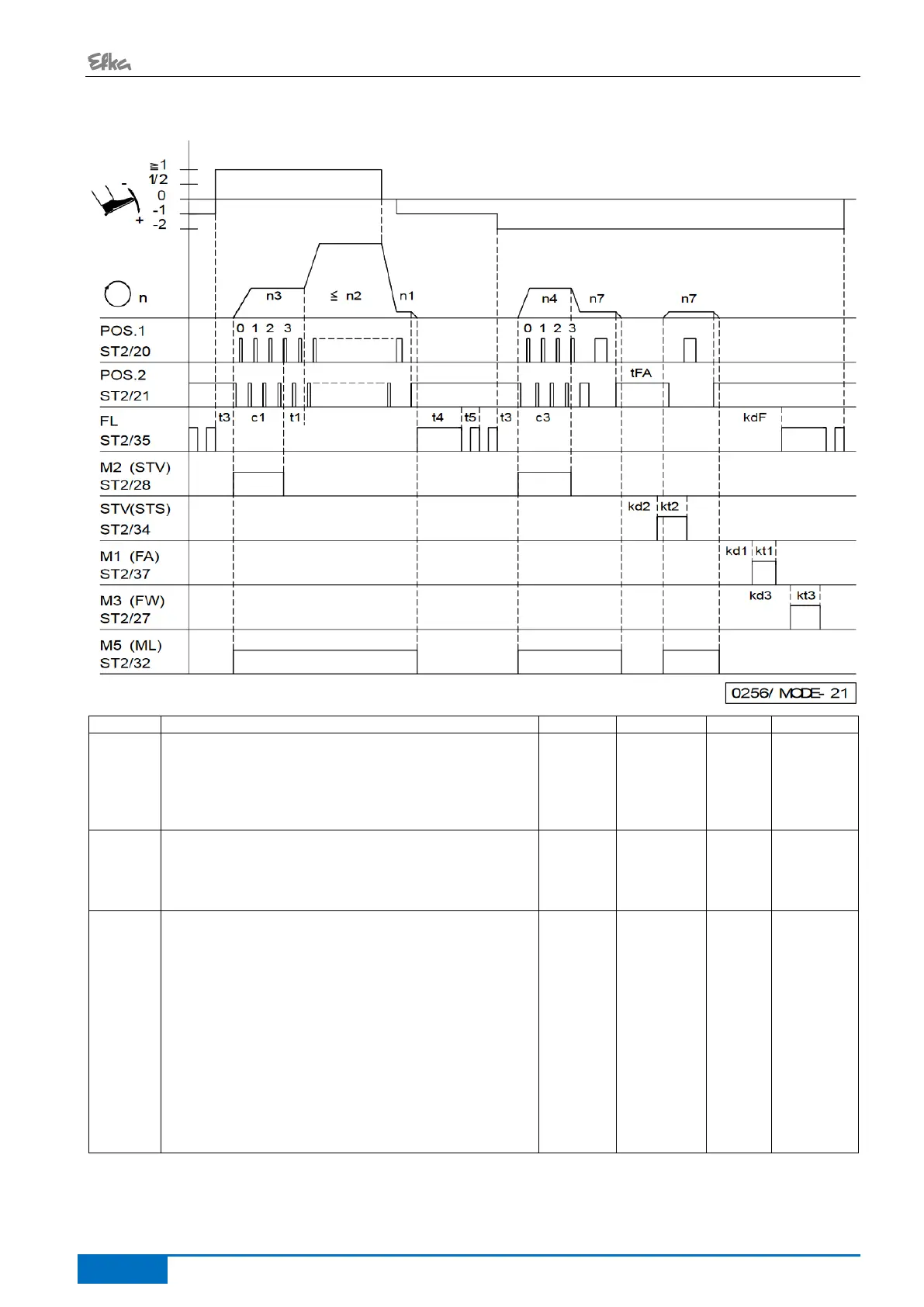

Mode 21 (Stitchlock Yamato)
Mark
Function
Parameter
Control
V810
V820/V850
FAm
StL
PGm
Mode 21
Stitchlock-Function
Start backtack
End backtack
Setting an external sensor to position 2.
(A sensor must be connected!)
ON
ON
290 = 21
196 = 1
270 = 1
Button S2
Button S3
Button
1
Button
2
Button 1
Button 4
n1
n2
n3
n4
n7
Positioning speed
Maximum speed
Start backtack speed
End backtack speed
Trimming speed
110
111
112
113
116
c1
c3
t1
t3
t4
t5
tFA
kd1
kt1
kd2
kt2
kd3
kt3
kdF
Counter start backtack
Counter end backtack
Delay until speed release after start backtack
Start delay from lifted sewing foot
Full power of sewing foot lifting
Pulsing of sewing foot lifting
Stopping time for thread trimming
Delay time of output M1
On periods of output M1
Delay time of output M2
On periods of output M2
Delay thread wiper
On periods of thread wiper
Delay time until sewing foot On
001
002
200
202
203
204
253
280
281
282
283
284
285
288
