elco TRIGON L PLUS - Dimensions

8
Product description

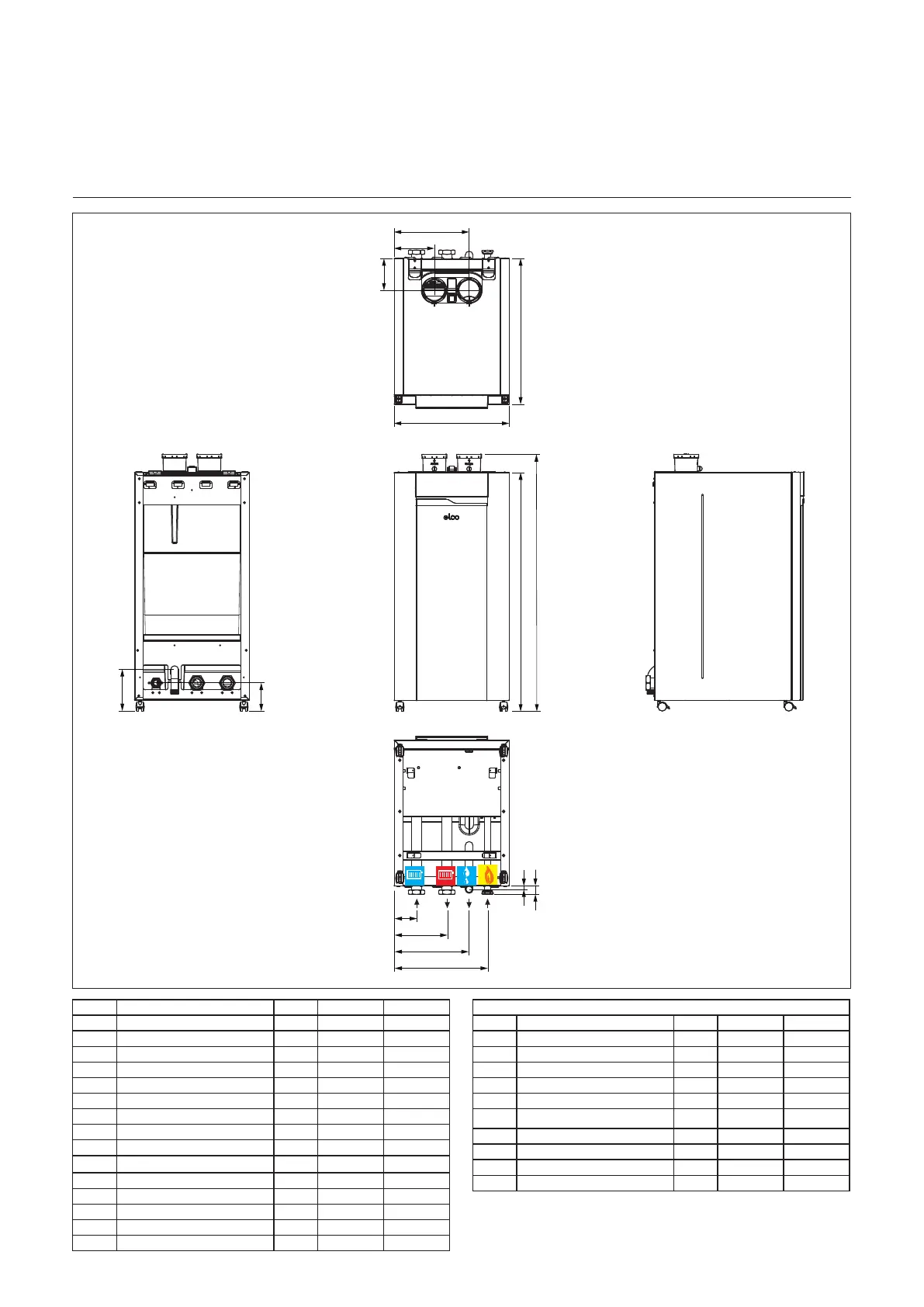

Dimensions of TRIGON L PLUS single engine
Type TRIGON L PLUS 60-70 100
A Boiler height mm 1100 1100
A1 Boilerheightwithueconnection mm 1185 1185
B Boiler width mm 530 530
C1 / C2 Boiler depth mm 595 675
D Flue gas nozzle parallel mm 185 185
E Air intake parallel mm 345 345
F Flue gas nozzle mm 150 150
G Boiler return connection mm 103 103
H Boilerowconnection mm 243 243
I Condensate connection mm
345 345
J Gas connection mm 430 430
K Condensate connection mm 15 15
L Boilerreturn-ow-gas mm 35 35
M Boilerreturn-ow-gas mm 130 130
N Condensate connection mm 190 190
Boiler connections
Type TRIGON L PLUS 60-70 100
Flue gas nozzle concentric mm 100* 100*
Air supply connector concentric mm
150* 150*
Parallel connection mm 2x100 2x100
g Gas connection 1 1/4" 1 1/4"
Gas connection** 1" ** 1" **
c Condensate connection mm
35 35
a Boilerowconnection 2" 2"
Boilerowconnection** 1 1/2" ** 1 1/2" **
r Boiler return connection 2" 2"
Boiler return connection** 1 1/2" ** 1 1/2" **
* with concentric adaptor (optional)
** with water/gas connection reduction kit (optional)
D
E
F
C1 / C2
B
A A1
M
N
G
K
L
H
I
r
a c g
J
