elco TRIGON L PLUS - Low Load (Step 2;3)

83
Commissioning
Flue gas analysis
Low load (Step 2/3)
Step 2: O
2
/ CO
2
check on low load
Setting the low load
The low load of each engine or of
thecompleteboilercanbesetby
you as follows:

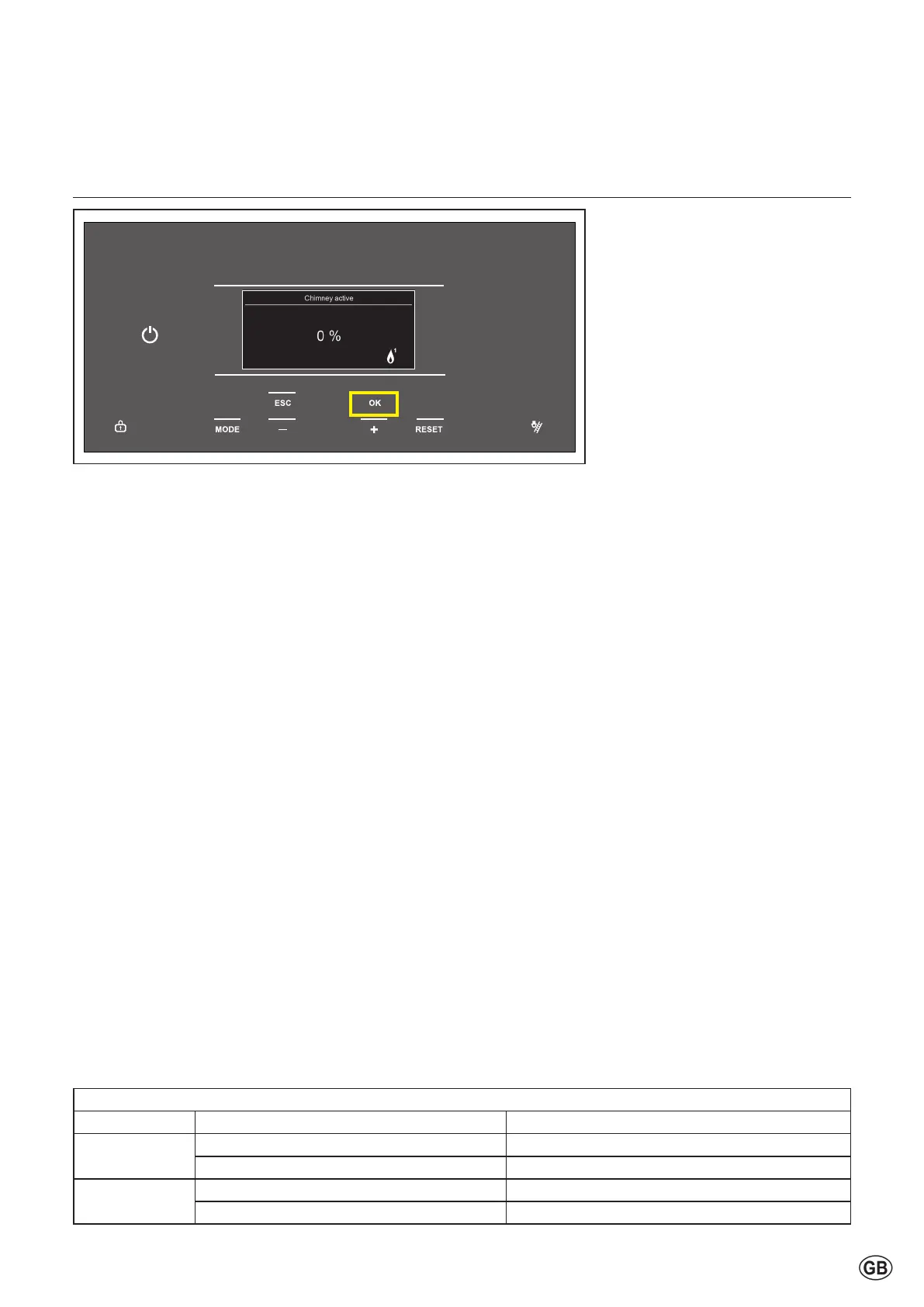

- Press the “–”buttonuntilyou
reach0%;
- Press OK;
 Theboilerwillswitchtominimum
power output (low load) of the
boiler;thescreenshows0%
(heating capacity).
The O
2
value at low load must lie
higher than the O
2
value at full load.
Themeasuringproceduremustbe
carried out, until a constant measuring
result is achieved. Please contact
ELCO, if the values should lie outside
oftheapplicabletolerances.
End of measuring:
- Pressthebackbuttonfor5seconds
to exit chimney sweep mode.
This completes the procedure.
The maximum duration of the
commissioning function, without
interruption, is 20 minutes.
O
2
/ CO
2
check on low load (Step 2)
Low load Natural gas (G20) Propane (G31)*
O
2
Minimal 0,5% higher than measured on full load Minimal 0,2% higher than measured on full load
Maximum 6,3% Maximum 6,5%
CO
2
Minimal 0,3% lower than measured on full load Minimal 0,1% lower than measured on full load
Minimum 8,2% Minimum 9,5%
Valuesarevalidwithclosedcover/airbox. *onlypossibleifLPGconversionkitisinstalled
