elco TRIGON L PLUS - Inspection

81
Caution:
After panelling removal, 230V
parts can be reached. Boiler
inspection is only to be carried
out by qualied sta󰀨.

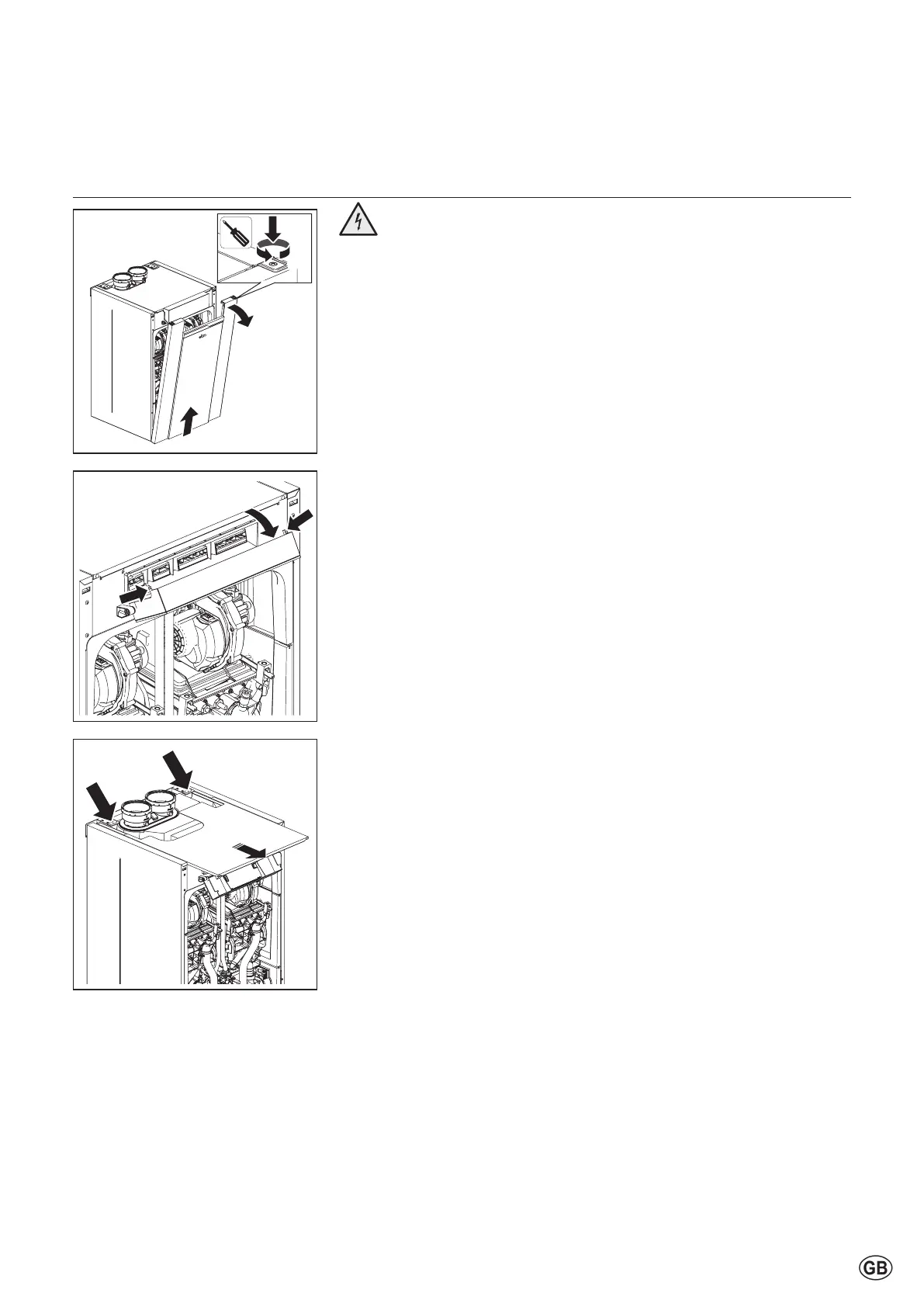

Removal of frontal panelling
Thefrontpanellingmustrstbe
removed,tobeabletocarryout
maintenanceontheboiler.
1. Unscrew the 2 screws of quick-
locks on top of frontal panel (A).
Push the quik locks (B) and remove
thefrontalpanel(C),(D)(=airbox).
Removal of top panelling
Toppanellingmustberemovedtobe
abletoreachtheburnercontrolunit.
2. Pressbothexternalsidesofthe
control unit HMI (E) and rotate
the display (F).
3. Pull the top panelling in a forward
motion (G), (H).
Commissioning
Inspection
The panelling of the equipment
consists of metal and plastic parts,
whichcanbecleanedwithamild
(non-aggressive) cleaning agent.
When carrying out maintenance works,
only original ELCO replacement parts
maybeused.
Checks prior to commissioning
Changingsettingssuchasburner
pressure and setting the amount
of air is not necessary.
Only in the case of failures or
replacement of the gas unit, venturi
and/or ventilator, does one have
to check and adjust the O
2
/ CO
2
percentage accordingly.
Following maintenance tasks
always check all gas-conducting
components on leakages by use
of leakage detection uid (LDF).
(2x)(2x)
A
C
B
D
E
G
H
H
F
1
2
3
