6-4

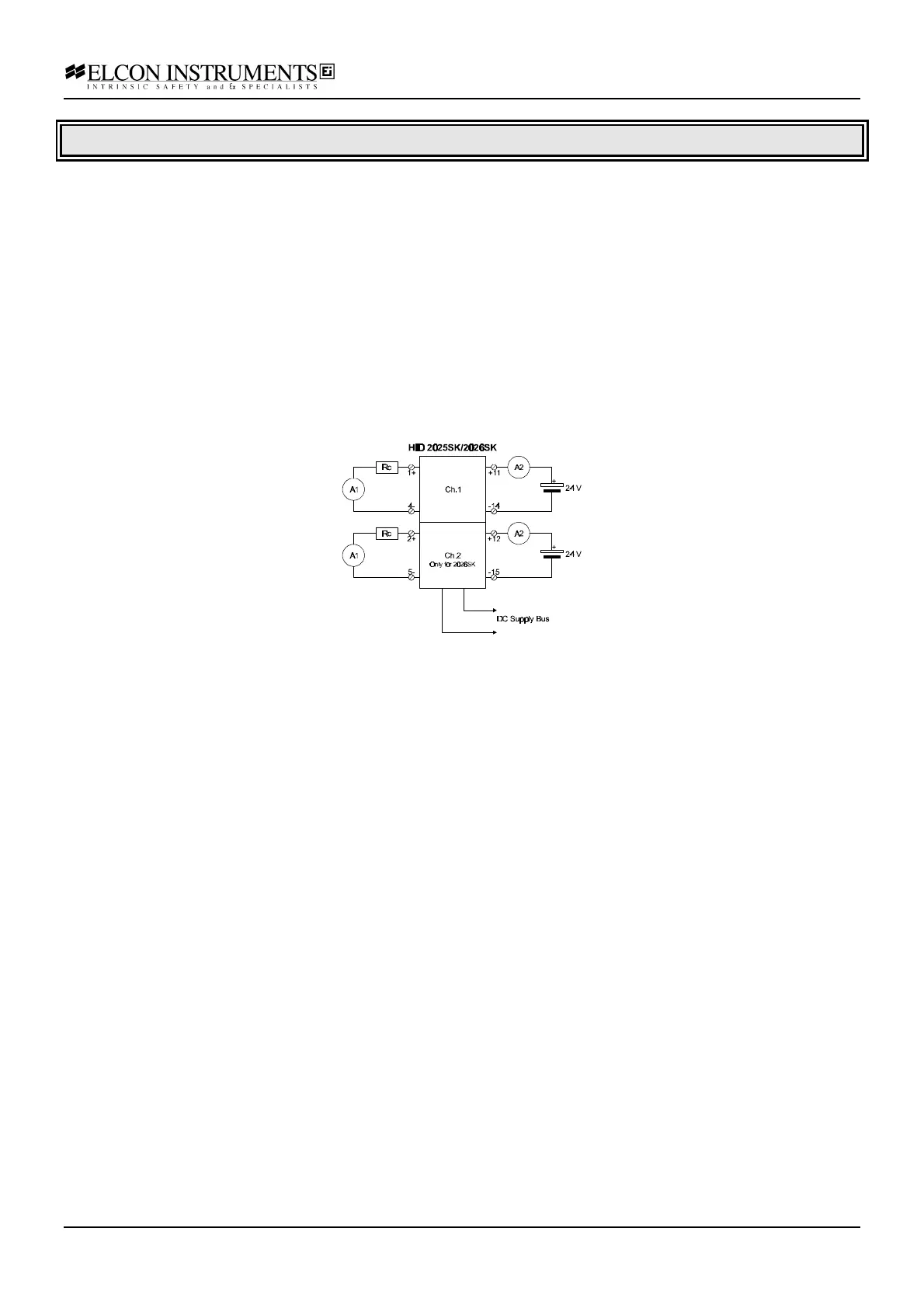

6.2.2 HiD 2025SK/2026SK

a) connect the power supply at the termination board supply terminals; connect the first multimeter A1 (current

mode) at the input terminals, in series with the resistor box Rc; feed the supply voltage to the output terminals,

with the second multimeter A2 (current mode) in series; set the supply at 24 V and switch it on; the green power

LED must be on;

b) set the resistor box to 780 Ω; the input current must be within 19.50 and 20.50 mA; the output current must be

the same, with an error lower than 20 µA;

c) set the resistor box to 5 KΩ; the input current must be within 3.50 and 4.50 mA; the output current must be the

same, with an error lower than 20 µA;

d) set the resistor box to 1500 Ω; the input current must be within 11.50 and 12.50 mA; the output current must be

the same, with an error lower than 20 µA;

e) set the resistor box to 0 Ω; the (short-circuit) input current must be within 25 and 30 mA; the output current must

be the same, with an error lower than 100 µA;

f) disconnect the resistor box; the (open-circuit) output current must be lower than 1 mA;
