6-9

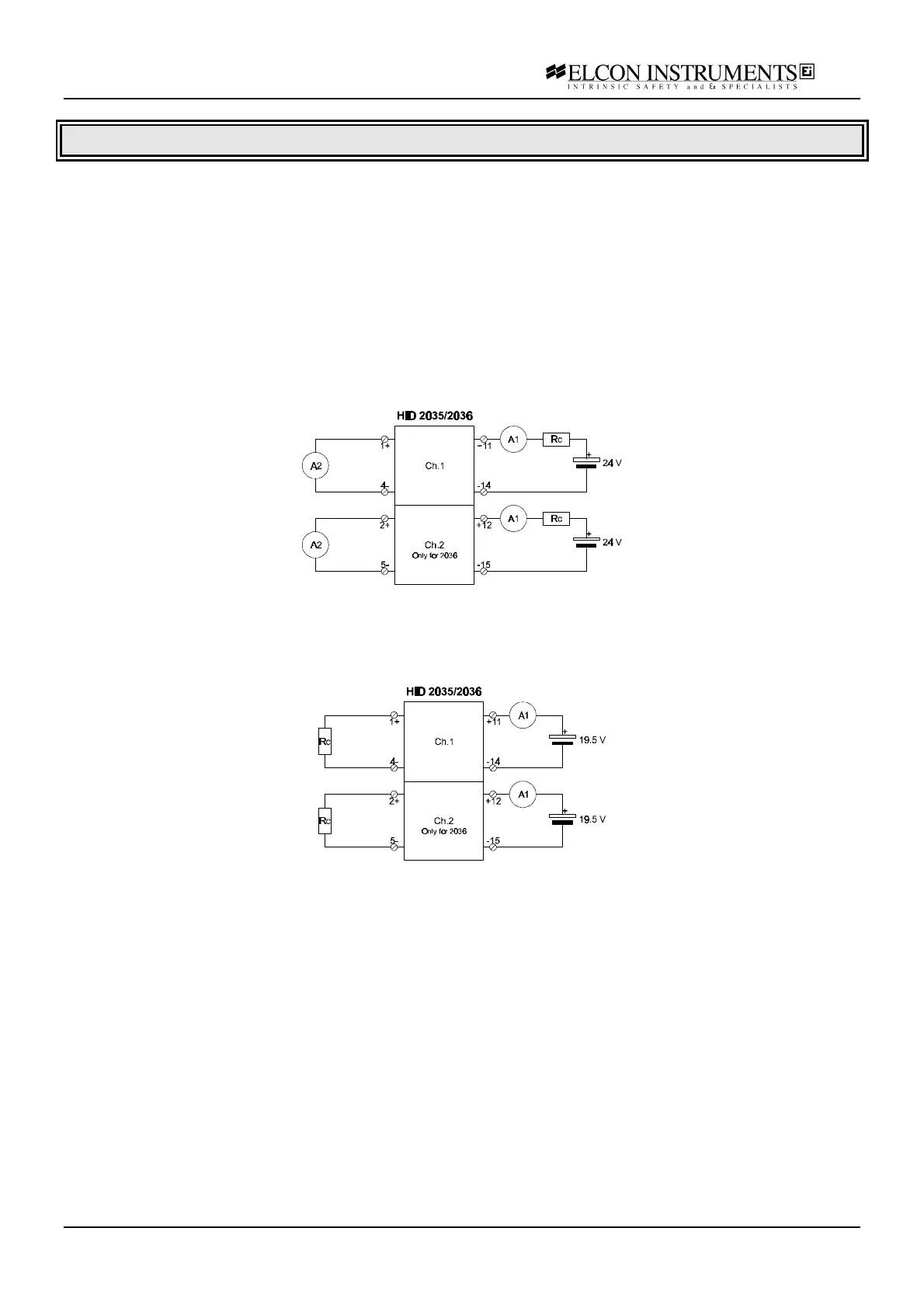

6.2.7 HiD 2035/2036

a) connect the power supply, in series with the first multimeter A1 (current mode) and with the resistor box Rc, at

the input terminals; connect the second multimeter A2 (current mode) at the output terminals; set the supply at 24

V and switch it on;

b) set the resistor box to 700 Ω; the output current must be within 19.50 and 20.50 mA; the input current must be

the same, with an error lower than 20 µA;

c) set the resistor box to 4.5 K Ω; the output current must be within 3 and 5 mA; the input current must be the

same, with an error lower than 20 µA;

d) set the resistor box to 1.3 KΩ; the input current must be within 11 and 13 mA; the output current must be the

same, with an error lower than 20 µA;

e) disconnect the multimeter A2 at the output terminals; the (open-circuit) input current must be lower than 0.6

mA; switch off the supply;

f) connect the power supply, in series with the first multimeter A1 (current mode), at the input terminals; connect

the resistor box Rc at the output terminals; set the supply at 19.5 V and switch it on;

g) set the resistor box to 500 Ω; the input current must be within 19.40 and 20.60 mA (voltage drop test);
