EPIR3 User Manual v1.3
7.2.1. Connecting a wired sensor of NO (normally open) type

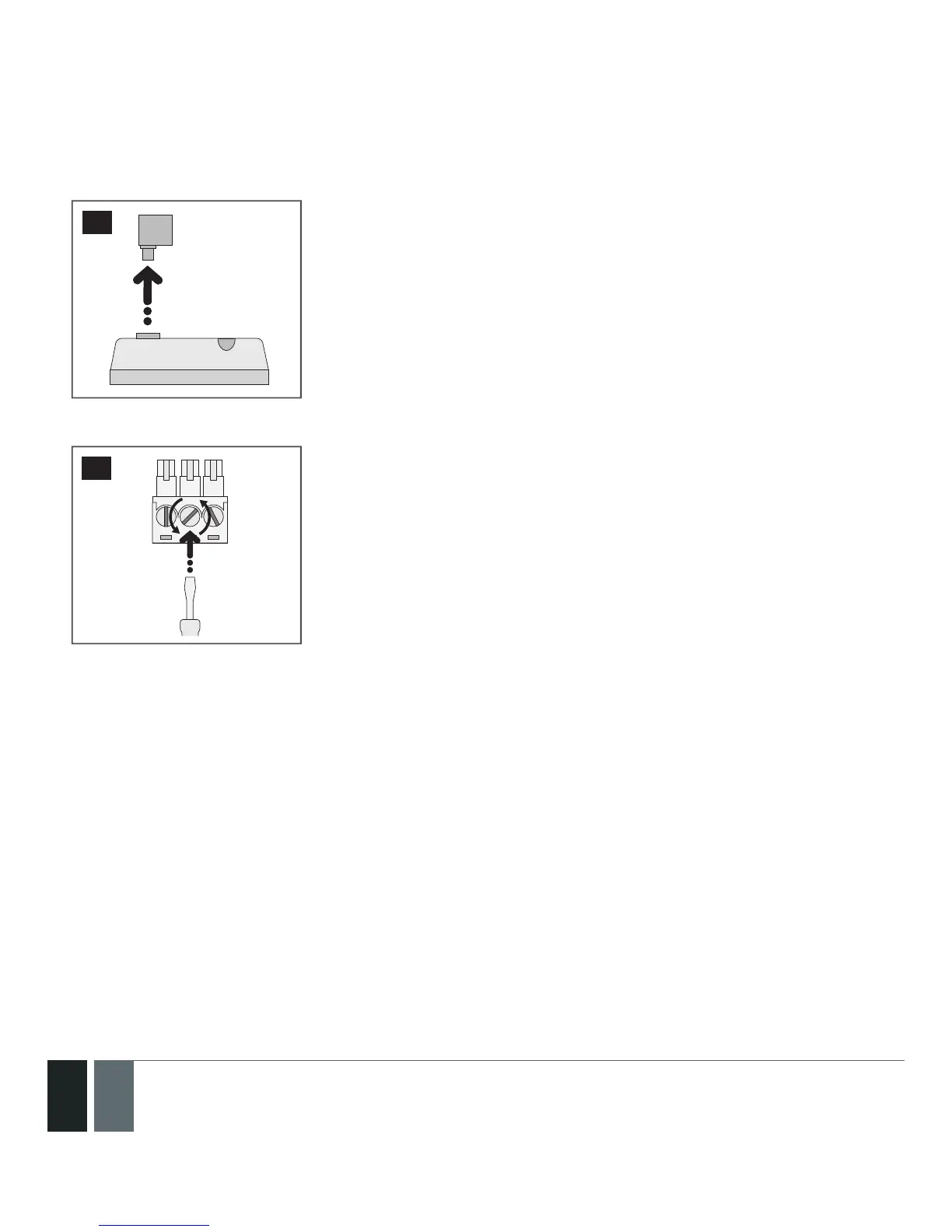

1. Remove the terminal block from the slot.
89
2. Loosen the screws of the terminals using a athead screwdriver.
90
3. Connect the 5.6 k nominal resistor, supplied with your EPIR3 system, across BELL- / COM and Z2 terminal in
parallel to the connected wires of the detection device.
