EPIR3 User Manual v1.3

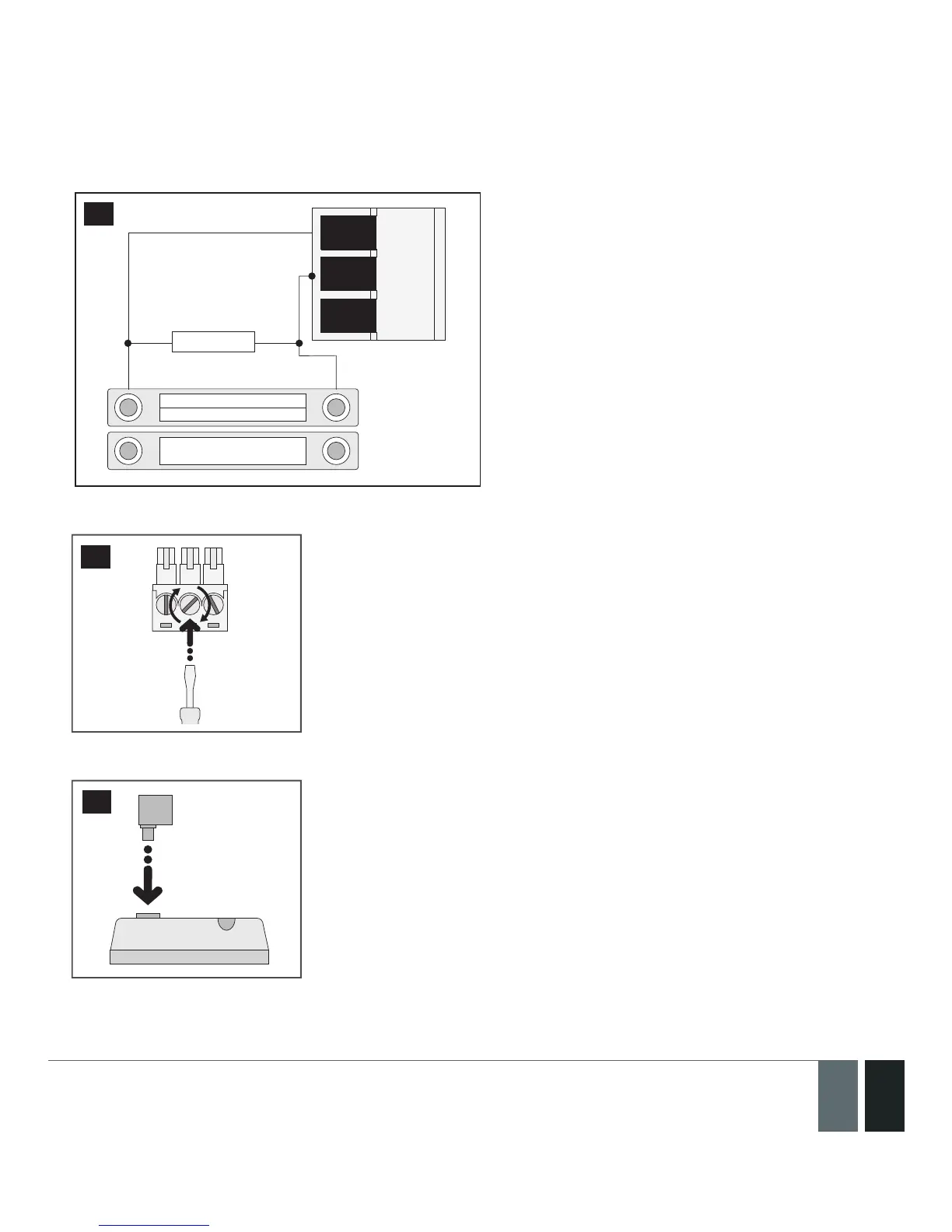

4. Connect the Z wire (usually – yellow) of the wired detection device to Z2 terminal, while the COM (usually -
green) wire to BELL - / COM terminal.

BELL- / COM
Z2
BELL+
ZCOM
Magnet
resistor 5,6 kΩ
91
5. Screw in the terminals.
92
6. Insert back the terminal block.
93
7. Set Zone Status of Z2 to Enabled under Zones/On Board section in ELDES Conguration Tool software.
