7 Devices
iConnect Installation Manual
50

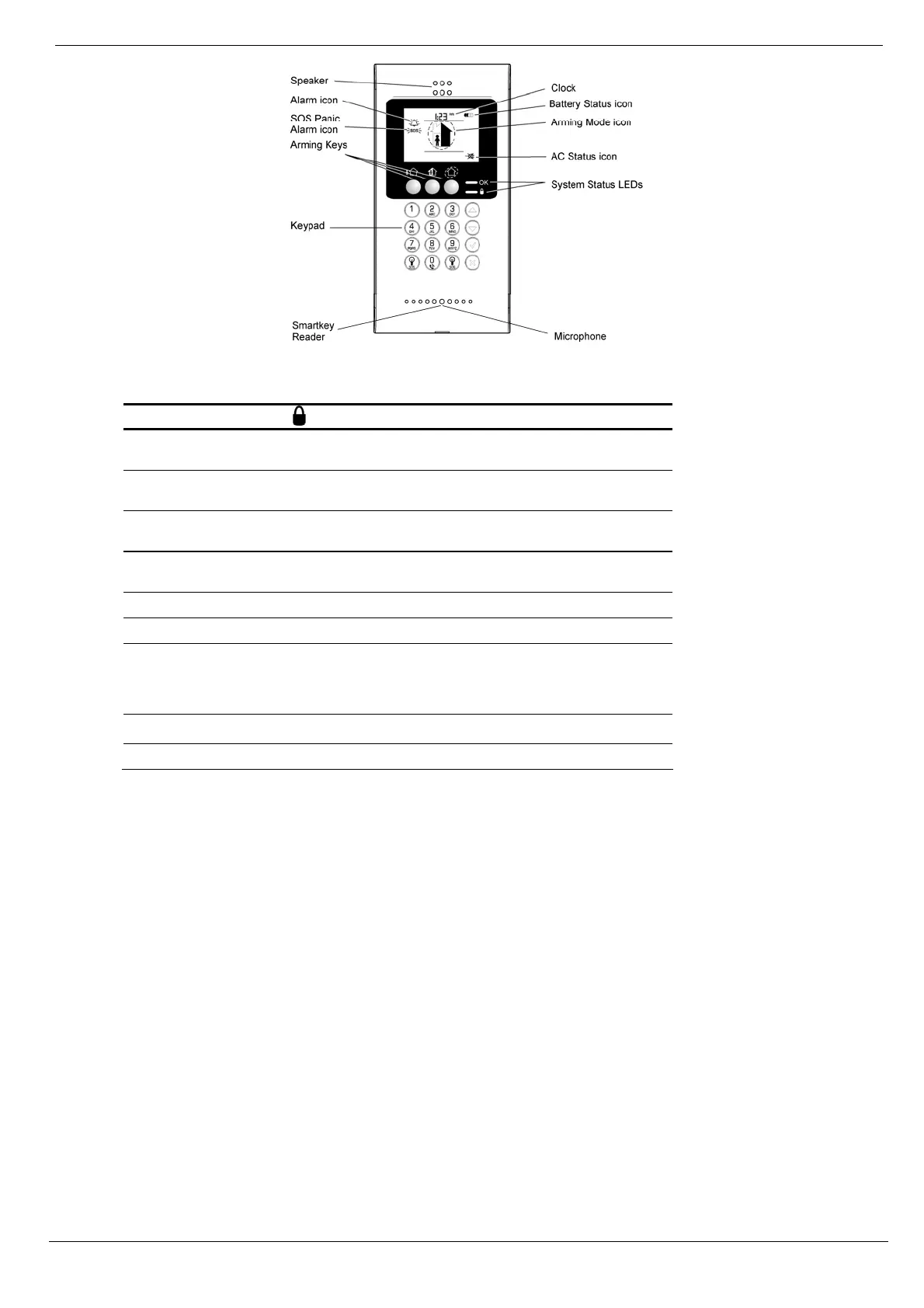

Figure 7-4: EL-2724 Wireless Terminal
OK LED Status LED Status Meaning
Off The system is disconnected from all
power sources.
On - Green The keypad is powered by AC and the
battery is not low.
Flashing Yellow
(slowly)
Local backup battery low.
Flashing Yellow
(fast)
Wireless Terminal AC loss.
Off The system is disarmed.
On - Green The system is armed.
Flashing Red An alarm has occurred. This alarm
indication is reset when the system is
armed using any of the three arming
methods.
Note: Alarm indication is not displayed after a silent panic alarm.
Flashing Green Flashing Red You are recording a message.
Table 7-4: EL-2724 System Status LEDs
Note: For Panic Alarm activation using the Wireless Terminal, see p. 27, 3.12.7 Alarm Activation.
7.6. Repeaters
Repeaters are designed to extend the wireless range of the Control System. Up to four repeaters may be registered to
the system with a maximum of 32 transmitters associated with each receiver. For information on registration, deletion,
and descriptor editing, see p. 113, Repeater (EL-2635)
7.7. Wireless Siren
For the wireless siren to function, the Control System must have the on-board transmitter installed on the Main board –
see p.4, 1.4.1 The Main Board for the location of the on-board transmitter connector.
Using this transmitter, the system sends alarm and arm status information to the wireless siren’s receiver. This requires
that you register the transmitter to the wireless siren’s receiver.
To register the on-board transmitter to the wireless siren’s receiver:
1. Set the wireless siren’s receiver to Registration mode – refer to the siren’s installation instructions for
further information.
2. Activate the siren using the WL Siren Test feature – see p.34, 4.8.3 Wireless Siren Test.
3. Activate the siren again; the on-board transmitter is registered to the siren’s receiver.
